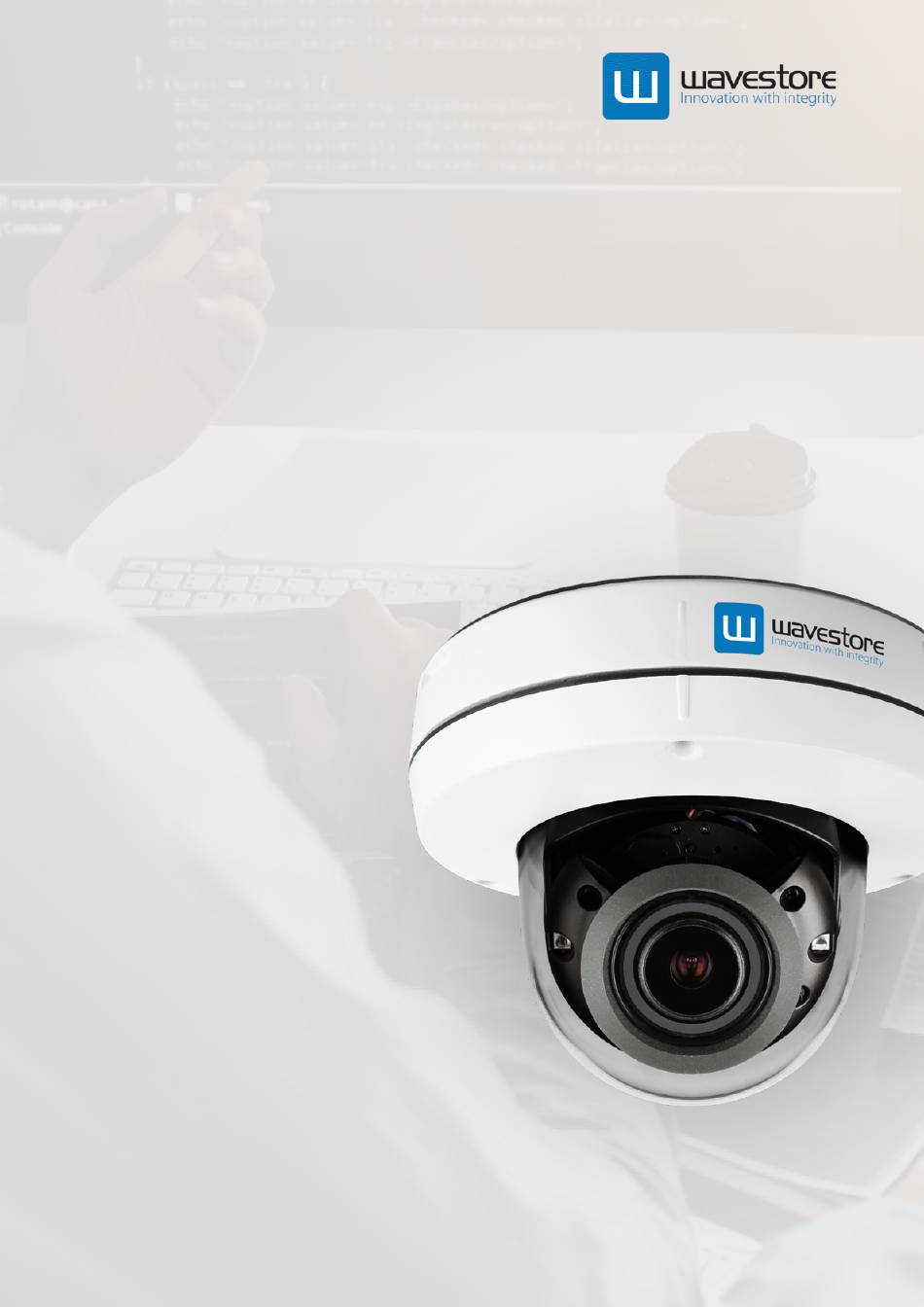

- Page 1 Wavestore Vision 5MP IR Dome IP Camera Installation Guide WV-5D-27V13 Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference.
-
Page 2: Table Of Contents
Contents INTRODUCTION Important Safety Information Product & Accessories Part Name INSTALLATION Disassemble the Camera Installation / Installation using Mount Plate Installation using Mount Bolt & Nut Cabling Inserting / Removing an SD Memory Card SPECIFICATION Dimension... - Page 3 Safety Instruction These instructions are intended to ensure that the user can use the product correctly to avoid danger or property loss. If the product is not functioning properly or damaged, contact the service center or purchasing office. Warnings Cautions Serious injury or death may be caused Injury or equipment damage may be caused if any if any of these warnings are neglected.
- Page 4 Installation and Use Precautions The battery (battery pack or equipped battery) must not be exposed to excessive heat such as sunlight, fire, etc. Do not disassemble the camera at your discretion. If you forcefully install the product with excessive force, malfunction can damage the camera. Do not punch or shake the camera and be careful not to damage the camera with careless storage or malfunction.
- Page 5 Disposal of Old Appliances 1. When this crossed-out wheel bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately form the municipal waste stream stream in accordance to laws designated by the government or the local authorities.
-
Page 6: Introduction
Introduction - Product & Accessories Camera Cables Screw & Torx Wrench Mount Plate Plastic Anchor - 3pcs Template Sheet Template Sheet Mount Bolt & Nut for Installing by Bolt & Nut for Installing by Plate Waterproof cap & Gasket Moisture absorber Test Monitor Cable &... -
Page 7: Part Name
Introduction - Part Name Dome Cover Test Monitor Cable Connector Lens Tilt Stopper Screw Gimbal Reset Button SD Card Slot Bezel Bottom Case Audio In/Out DC Power Jack RJ-45 Connector Audio In/Out Waterproof Cap Mount Plate Plate Hook... -
Page 8: Installation
Installation - Disassemble the camera Before installing your camera, you have to read the following cautions. 1. You have to check whether the location can bear five times of the weight of your camera. 2. Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise it may cause a breakdown or fire. - Page 9 Installation - Installation Template Sheet Disassemble the camera. See the section ‘Installation - Disassemble the camera’ for details. Using the template sheet, make the cabling hole on the wall/ceiling. Connect the network cable and power cable respectively. See the section 'Installation - Cabling' for details. Insert the Lan cable into the rubber first as (a) below.
-
Page 10: Installation / Installation Using Mount Plate
Installation - Installation Using Mount Plate Template Sheet Disassemble the camera. See the section ‘Installation - Disassemble the camera’ for details. Using the template sheet, make the cabling hole on the wall/ceiling. After passing the cables through the hole, fix the mount plate on the template sheet. -
Page 11: Installation Using Mount Bolt & Nut
Installation - Installation Using Mount Bolt & Nut Disassemble the camera. See the section ‘Installation - Disassemble the camera’ for details. Template Sheet Using the template sheet, make the cabling holes on the ceiling panel. Insert the 2 mount bolts into bottom case of camera. - Page 12 Installation - Installation Using Mount Bolt & Nut Insert the mount bolts into template holes after connecting the cable. Fix the bottom case by tightening mount nuts to mount bolts on the ceiling panel. To achieve desired view direction and orientation, rotate 3-axis gimbal.
-
Page 13: Cabling
Installation - Cabling Two Options Use a PoE-enabled swtich to connect data and power through a single cable and begin viewing and recording images instantly. A non-PoE switch will require an adaptor for power transmission. 1. Using a PoE-Enabled Switch 2. - Page 14 Installation - Cabling Alarm In/Out Audio Input Audio Output Network Power Power Connection Audio Output Please, check the voltage and current capacity of rated Connect the ‘Audio Out’ cable of the camera to device like power carefully. speaker. Audio Out supports only RTSP Back channel function. Power Rate Power It plans to make it available on the web later.
-
Page 15: Inserting/Removing An Sd Memory Card
Installation - Inserting/Removing an SD Memory Card The memory card is an external data storage device that has been developed to offer an entirely new way to record and share video, audio, and text data using digital devices. Micro Recommended SD Card Specification (Not Included) - Type: Micro SD (SD/SDHC/SDXC) - Manufacturer: SanDisk, Samsung, Transcend, Micron... -
Page 16: Specification
Specifications - Dimension Unit : mm ø125...
