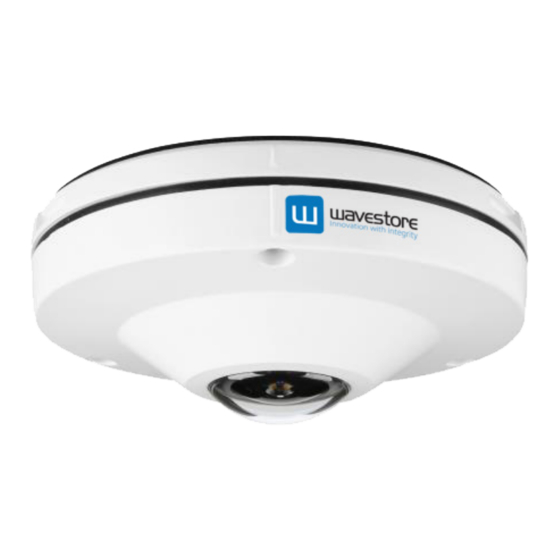

- Page 1 Wavestore Vision 12MP Compact Fisheye IP Camera Installation Guide WV-12F-360...
-
Page 2: Table Of Contents
Contents INTRODUCTION Important Safety Information Product & Accessories Part Name INSTALLATION Disassemble the Camera Installation / Installation using Mount Plate Installation using Mount Bolt & Nut Cabling Inserting / Removing an SD Memory Card SPECIFICATION Dimension... - Page 3 Safety Instruction These instructions are intended to ensure that the user can use the product correctly to avoid danger or property loss. If the product is not functioning properly or damaged, contact the service center or purchasing office. Warnings Cautions Serious injury or death may be caused Injury or equipment damage may be caused if any if any of these warnings are neglected.
- Page 4 Installation and Use Precautions The battery (battery pack or equipped battery) must not be exposed to excessive heat such as sunlight, fire, etc. Do not disassemble the camera at your discretion. If you forcefully install the product with excessive force, malfunction can damage the camera. Do not punch or shake the camera and be careful not to damage the camera with careless storage or malfunction.
- Page 5 Disposal of Old Appliances 1. When this crossed-out wheel bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately form the municipal waste stream stream in accordance to laws designated by the government or the local authorities.
-
Page 6: Introduction
Introduction - Product & Accessories Camera Cables Torx Wrench Screw & Mount Plate Plastic Anchor - 3pcs Template Sheet Template Sheet Mount Bolt & Nut for Installing by Bolt & Nut for Installing by Plate Waterproof cap & Gasket & Rubber 2ea Quick Manual (Black : ø4 / White : ø5) Note : Cable thickness 4.5ø... -
Page 7: Part Name
Introduction - Part Name Illumination Sensor Hall Dome Cover Window Cover Illumination Sensor Fisheye Lens SD Card Slot Reset Button Alarm In/Out DC Power Jack RJ-45 Connector Audio In/Out Waterproof Cap Mount Plate Plate Hook... -
Page 8: Installation
Installation - Disassemble the camera Before installing your camera, you have to read the following cautions. 1. You have to check whether the location can bear five times of the weight of your camera. 2. Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise it may cause a breakdown or fire. - Page 9 Installation - Installation Template Sheet Detach the camera’s cover dome from the camera’s module by unscrewing the three cover dome screws using the L-wrench. Use the camera or mounting template to mark and drill the necessary holes in the wall or ceiling. Connect the network cable and power cable respectively.
-
Page 10: Installation / Installation Using Mount Plate
Installation - Installation Using Mount Plate Template Sheet Detach the camera’s cover dome from the camera’s module by unscrewing the three cover dome screws. Using the metal mount plate, mark and drill the necessary holes in the wall or ceiling. Connect the network cable and power cable respectively. -
Page 11: Installation Using Mount Bolt & Nut
Installation - Installation Using Mount Bolt & Nut Using the template sheet, make and drill the cabling holes on the wall/ceiling. Secure the two long mounting screws to the camera’s base. Pass the wires through the mount bracket and make all necessary connections. -
Page 12: Cabling
Installation - Cabling Two Options Use a PoE-enabled swtich to connect data and power through a single cable and begin viewing and recording images instantly. A non-PoE switch will require an adaptor for power transmission. 1. Using a PoE-Enabled Switch 2. - Page 13 Installation - Cabling Alarm In/Out Audio Input Audio Output Network Power Power Connection Audio Output Please, check the voltage and current capacity of rated Connect the ‘Audio Out’ cable of the camera to device like power carefully. speaker. Audio Out supports only RTSP Back channel function. Power Rate Power It plans to make it available on the web later.
-
Page 14: Inserting/Removing An Sd Memory Card
Installation - Inserting/Removing an SD Memory Card The memory card is an external data storage device that has been developed to offer an entirely new way to record and share video, audio, and text data using digital devices. Micro Recommended SD Card Specification (Not Included) - Type: Micro SD (SD/SDHC/SDXC) - Manufacturer: SanDisk, Samsung, Transcend, Micron... -
Page 15: Specification
Specifications - Dimension Unit : mm ø125...
