4) If the port is connected to a device that doesn't support IEEE802.1Q (e.g.
HUB and some network adapter), value of the Egress Frame field should
be set to "Drop Tag".
5) For the first time the Port VLAN mode is set, a default VLAN, which is
indexed as NO. 1 and contains all switch ports, will be built up.
6) The ports haven't been assigned to any VLAN manually cannot
communicate with each other or other VLAN. That's different from the Port
VLAN.
7) The number of Port VLAN can be set depends on the switch type. See the
Appendix C for details.

5.3.4.5 MTU VLAN Setting

This page, which is designed to configure the uplink port, display when the
switch is in MTU VLAN mode.
Notice:
1) The uplink port will buildup several VLANs with each of the other ports.
Each VLAN contains two ports, the uplink port and one of the other ports
in the switch, so the uplink port can communicate with any other port but
other ports can't communicate with each other.
2) The first time the MTU VLAN mode is set, it set port 1 to be the uplink port
by default.
56
Web Smart Gigabit Switch Family User's Guide

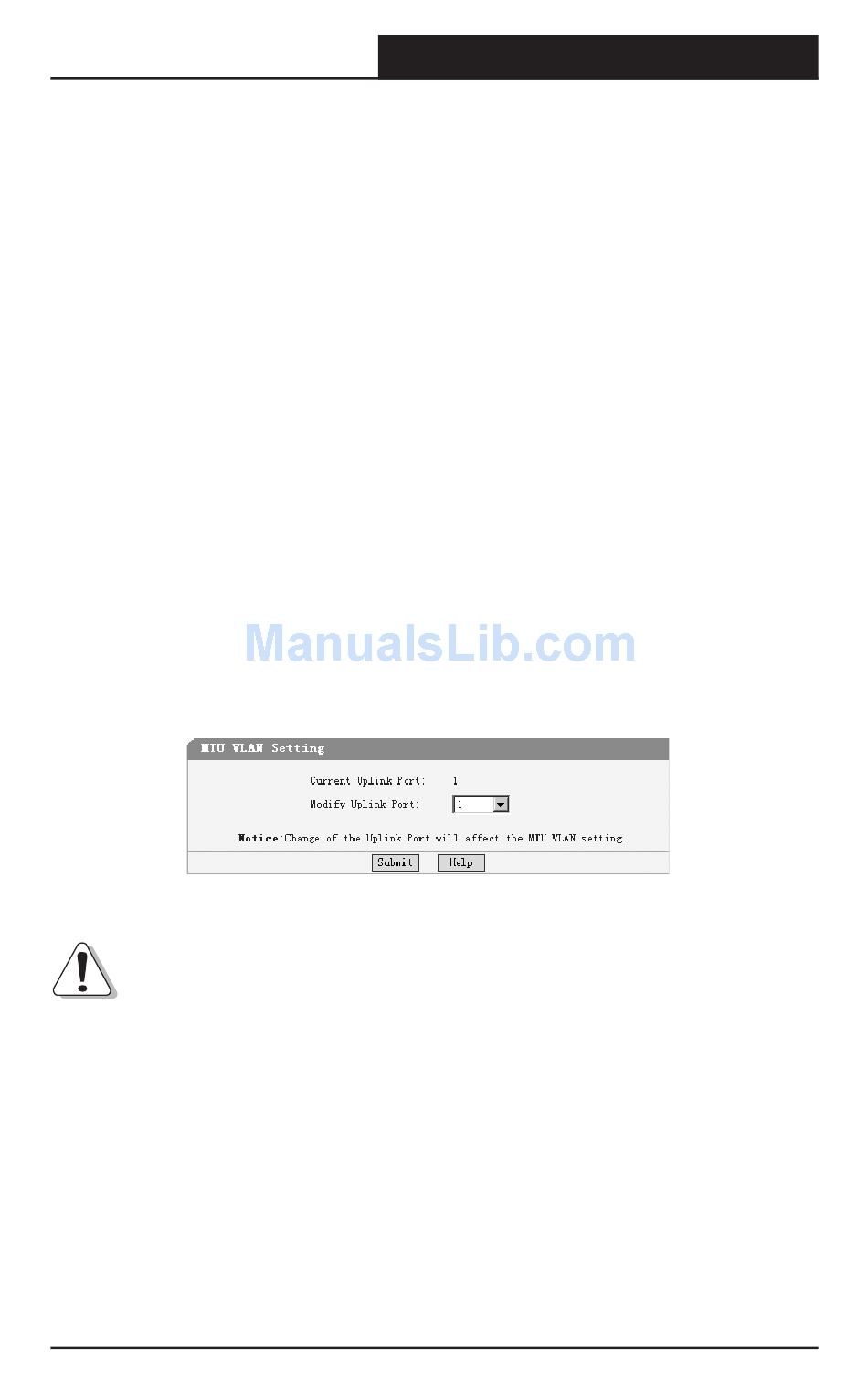

Figure 5-38 MTU VLAN Setting
