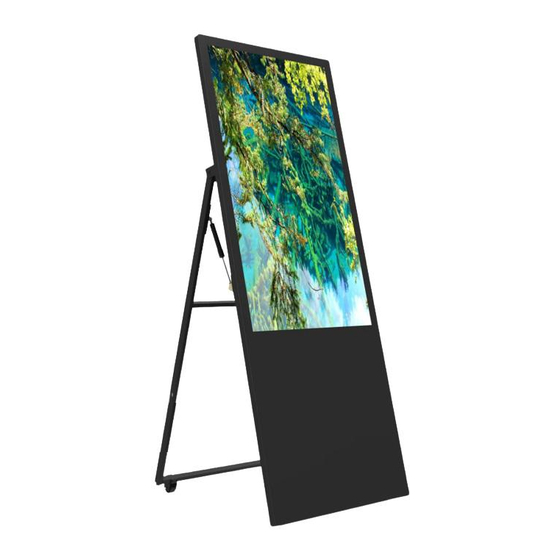

43"Indoor A-Frame
Digital Sign
U S E R M A N U A L
SKU: DP043NLB, DP043NLBS
FCC ID: 2ASCB- DP043NLB
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes/modifications to this equipment not approved by the party responsible for compliance could void the user's
authority to operate the equipment.
Scan the QR code to
visit the product page.
Advertisement
Table of Contents
Related Manuals for Displays2go DP043NLBS
Summary of Contents for Displays2go DP043NLBS
- Page 1 43”Indoor A-Frame Digital Sign U S E R M A N U A L SKU: DP043NLB, DP043NLBS Scan the QR code to visit the product page. FCC ID: 2ASCB- DP043NLB This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 2: Table Of Contents
Contents Features ..........................3 Safety Warnings and Precautions ................... 3 Assembly and Connection ...................... 5 Packing List ............................ 5 Interfaces ............................6 HDMI Input Feature ........................6 Steps for Unpacking ........................7 Remote Control ........................8 Description of Basic Operation ....................9 Power on/Standby ........................ -
Page 3: Features
Thank you for purchasing the high-performance multi-functional LED backlight Digital Signage from Displays2Go. We have considered the factors to ensure personal safety in product design and have tested rigorously at the factory. However, improper installation and use may result in electric shock and fire. - Page 4 WARNING Cut off the power supply before connecting or disconnecting any cables. Do not place the Digital Signage on any instable positions, or else it may be damaged or cause fire. Do not place the Digital Signage in the positions such as: 1.
-
Page 5: Assembly And Connection
Note: Contact Displays2Go if you have questions about the operation, debugging and connection of the unit, if the unit doesn’t work normally, please cut off the power immediately and consult the dealer. The unit is class-A product, which may cause radio interference in living environment. -
Page 6: Interfaces
Interfaces 1. RJ45 interface(Ethernet), 2. Type-C OTG, 3. Sim card, 4. 3.5mm headphone connector, 5. USB interface * 3, 6. HDMI Input, 7. WiFi interface, 8. On/Off button, 9. Power port, 10. TF card. Note: Please pull out the power plug before installing or disassembling the unit! HDMI Input Feature 1. -
Page 7: Steps For Unpacking
Steps for Unpacking 1. Open the top cover as shown in Fig. 2, Fig. 1 Fig. 2 2. Remove the unit shown in Fig 3 and place it on the ground (avoid scratches)(Fig 4), 3. Open the bottom bracket to make the machine stand up, as shown in Fig 5. Fig. -
Page 8: Remote Control
Remote Control Installing batteries for the remote control: Remove the battery cover and insert two AAA batteries (1.5V). Ensure that the battery polarity matches the “+”/“-” marks in the battery compartment of the remote control. Precautions for using the remote control: ... -
Page 9: Description Of Basic Operation
Description of Basic Operation Power on/Standby Insert the power plug into the outlet. If the Digital Signage has the switch button “I”, turn it on, if you press the switch button “O”, the Digital Signage enters standby state. In power on state, enter “System Assistant” and press the “ ”... -
Page 10: File Manager
File Manager 1. Click the Main Apps button “ ” in the Home page to enter the “APPS” menu interface (Fig. 2), 2. Click the “Explorer” icon in the “APPS” menu interface (Fig. 2) and enter “Explorer” menu (Fig. 3), 3. -
Page 11: Status Of Menu Bar
Description of Settings Interface (shown on the right) Icon Function Network & internet Connected devices Apps & notifications Display Sound Storage Privacy Location Security Accounts Accessibility Screenshot Memory System About table Status of Menu Bar 1. Click the “setting”(Fig. 1), 2. -
Page 12: Screen Rotate
Fig. 4 Fig. 5 Screen Rotate 1. Click the Main Apps button “ ” in the Home page to enter the “APPS” menu interface (Fig. 1) 2. Click “System assistant” into Fig. 2 3. Choose the degree you would like to Rotate screen(Fig. 3), then click “CONFIRM”, after the restart, the screen will be rotated (Fig. -
Page 13: Choose System Language
Fig. 4 Choose System Language: 1. Get into “System”(Fig. 1), then click “Language & input” (Fig. 2) 2. Click “Languages”, then click “Add a language” (Fig. 3) 3. You can add the required system language (Fig. 4) 4. Drag the system language you just added up to the front(Fig. 5) Fig. -
Page 14: Factory Reset
Fig. 4 Fig. 5 Factory Reset: 1. Get into Settings, then click “System” (Fig. 1), 2. Open the drop-down box for advanced options (Fig. 2), 3. Click “Reset options” (Fig. 3), 4. Click “Erase all data (factory reset)” (Fig. 4), 5. -
Page 15: Diviex App Introduction
Fig. 4 Fig. 5 DiViEx APP Introduction System requirements: Step 1: Before using this application, make sure your machine meets or exceeds the following system requirements: RK3568 32GB Operating system Android 11 How to upload media files : Step 2: Make new directory named “MediaFolder” in root directory in U disk. Open "MediaFolder", create 3 subfolders, and change their names to "Images", "Videos", "Music". - Page 16 Format requirement: Image JPG/JPEG/BMP/PNG Video MPEG1/MPEG2/MPEG4/ MKV Music Step 3: Plug in the USB drive into the device and click the DiViEx App to open it. Step 4: When the screen shows “Copy finished” after “Usb Disk: ”, 16 / 27...
-
Page 17: Setting
Setting: Step 1: Select the time you would like each picture to be on the screen for by dragging the bar to the desired time. Select how you would like the images to display. Select the desired transition effect between pictures. Auto Boot ... - Page 18 Sticker You can add seven special effects to the picture 18 / 27...
- Page 19 Frame You can add different borders to the picture Reset Restore the original image Picture sharing “ ” When you click the share button, you can share the picture to the corresponding APP Pictures saving “ ” ...
-
Page 20: Music
Image deletion Click " " to delete unwanted pictures Music: List all music files in Playlist library Add music to playing list music from Playlist library, you can click right arrow, music title will show the number of playlist music. To remove background music from the playlist, click the left arrow in the playlist ... -
Page 21: Technical Specifications
Technical Specifications ITEM SPECIFICATION LCD size 43” Light source LED backlight Resolution 1920*1080 (pixels) Brightness 400cd/m Contrast 1200: 1 Response 10ms Panel Pixel pitch 0.16 (H) * 0.49(V) mm Refresh rate 60Hz Viewing angle 178° (H)/178° (V) Color saturation Viewable area 940.9 (H) * 529.3 (V) mm Chromaticness 16.7M... - Page 22 Audio output, supported files Left and right audio channel, MP3 RTC (real-time clock) Functions Schedule power on/off System update USB compatible App installation Support download and installation Ethernet (RJ45) HDMI IN I/O interfaces 3.5 Headphones Wi-Fi Type-C OTG Net weight 70.5lbs (32kg) Gross weight 94.8lbs (43kg)
-
Page 23: Troubleshooting
Troubleshooting the Digital Signs – DP043NLB Issue Probable Cause Solutions No picture or sound Unit not plugged into wall outlet □ Check that the unit is plugged into wall Power cord not properly outlet. connected to the terminal on the □... - Page 24 Did you purchase the □ If you purchased DisplayIt!Xpress software with installing DisplayIt!Xpress software from from Displays2go or from Best Wave directly, software or getting Displays2go? please contact Best Wave at content to play Did the customer purchase or ...
-
Page 25: Cleaning And Maintenance
transitions, slide time and looping > Play MX Player steps > Follow same steps as DiViEX App > MediaFolder > Video > Editor > Paste. Open MX Player and select video to play. Loop video: While the video is playing, click on the video and there should be 3 dots in the top right corner. -
Page 26: Names And Contents Of Toxic And Hazardous Substances Or Elements In The Product
Names and Contents of Toxic and Hazardous Substances or Elements in the Product Toxic and hazardous substances or elements Part name PBDE Display О О О О О Shell О О О О × × Circuit board assembly * О О... -
Page 27: Fcc Statement
FCC STATEMENT: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
