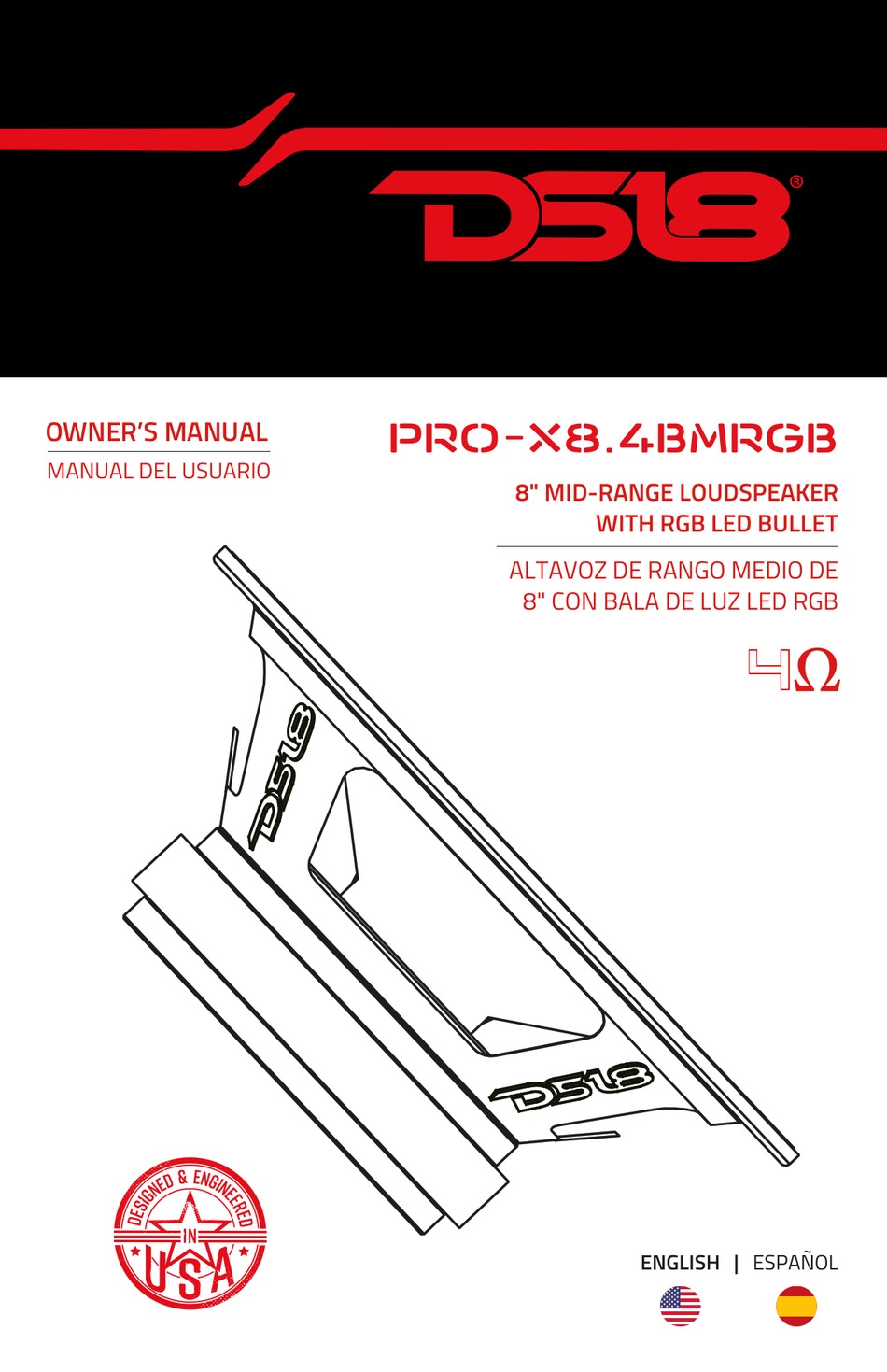

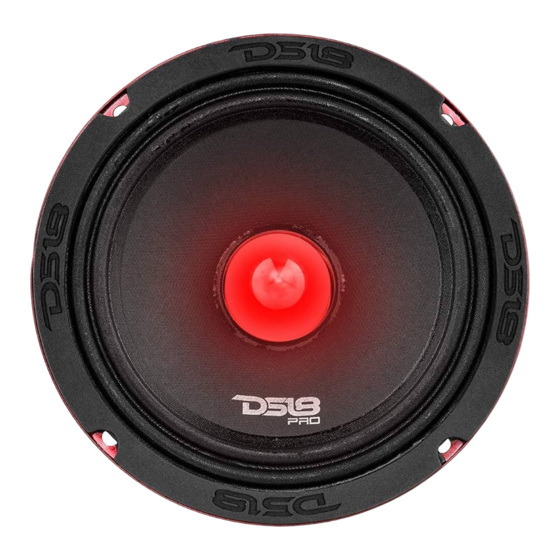

- Page 1 OWNER’S MANUAL PRO-X8.4BMRGB MANUAL DEL USUARIO 8" MID-RANGE LOUDSPEAKER WITH RGB LED BULLET ALTAVOZ DE RANGO MEDIO DE 8" CON BALA DE LUZ LED RGB ENGLISH | ESPAÑOL...
-
Page 2: Specifications / Especificaciones
PRO-X8.4BMRGB SPECIFICATIONS / ESPECIFICACIONES: Nominal Diameter / Diámetro Nominal ................8" / 203 mm Nominal Impedance / ................4 OHMS Impedancia Nominal RMS Power Handling / Manejo de Potencia RMS ..............275 Watts MAX Power Handling / ..............550 Watts... -
Page 3: Warranty
MEASUREMENTS / MEDIDAS: 3.18”/81mm 3.42”/87mm WARRANTY GARANTÍA Please visit our website DS18.com for more information Visita nuestra página web DS18.com para obtener más on our warranty policy. información sobre nuestra garantía. We reserve the right to change products and specifications Nos reservamos el derecho de cambiar productos y at any time without notice. - Page 4 PRO-X8.4BMRGB INSTALLATION & CONNECTION OPTIONS BATTERY BATTERY Blue LED (-) Red LED (-) Green LED (-) LED-BTC 12V DC (+) To connect without LED Control Module (LED-BTC), Connect as Shown in the Following Diagram: Black wire “BK” Connected to Battery Positive (+) 12V White Color Light “R”...
- Page 5 INSTALACIÓN Y OPCIONES DE CONEXIÓN BATTERY BATERIA Azul LED (-) Rojo LED (-) Verde LED (-) LED-BTC 12V DC (+) Para conectarse sin el módulo de control LED (LED-BTC), conecte como se muestra en el siguiente diagrama: Cable negro "BK" conectado al positivo de la batería (+) 12V Luz de color blanco “R”;...
- Page 6 FOR MORE INFORMATION PLEASE VISIT DS18.COM We LIKE IT LOUD...
