Summary of Contents for DS18 PRO-X6.4RGBCAP
Page 1

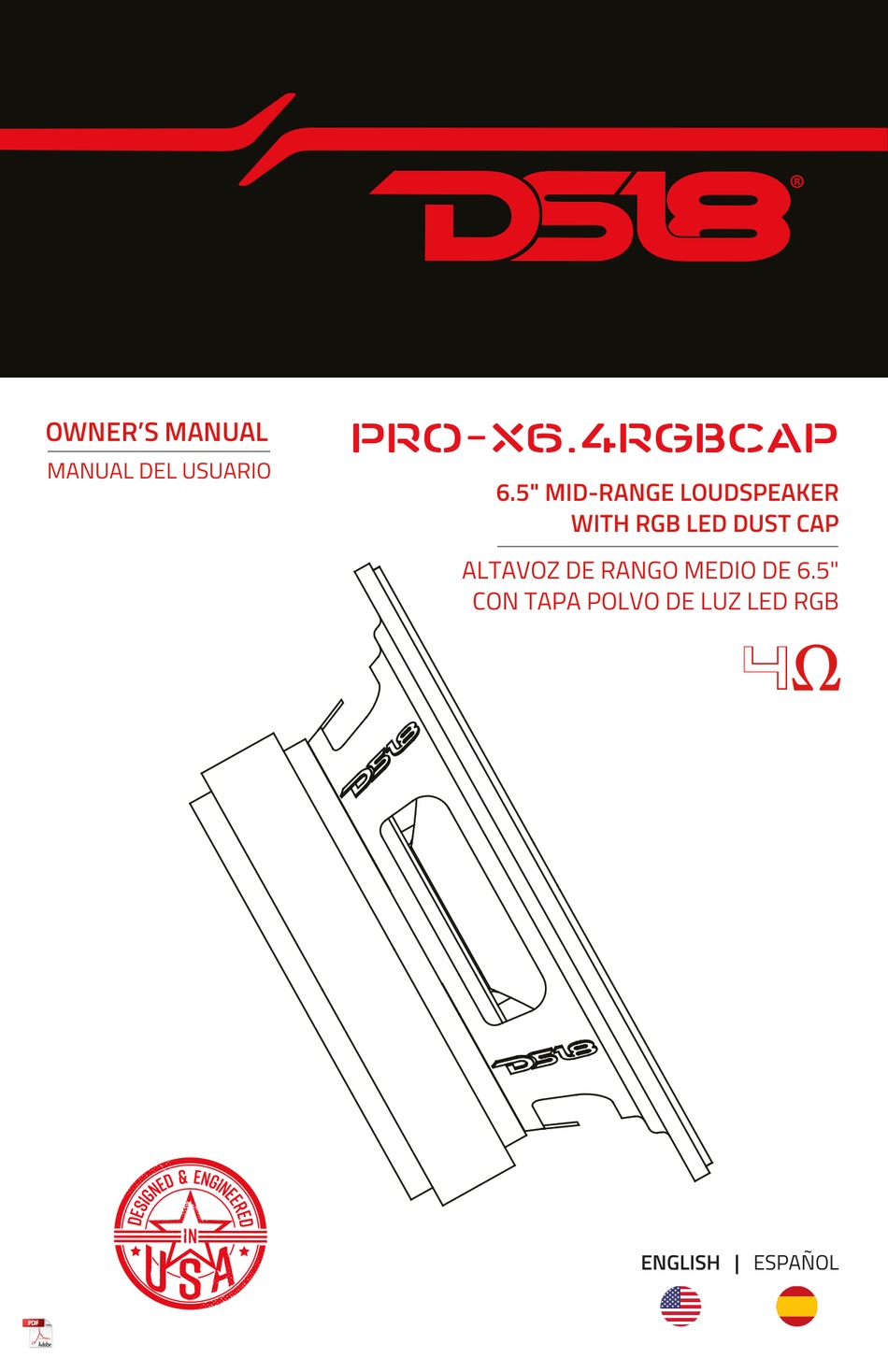

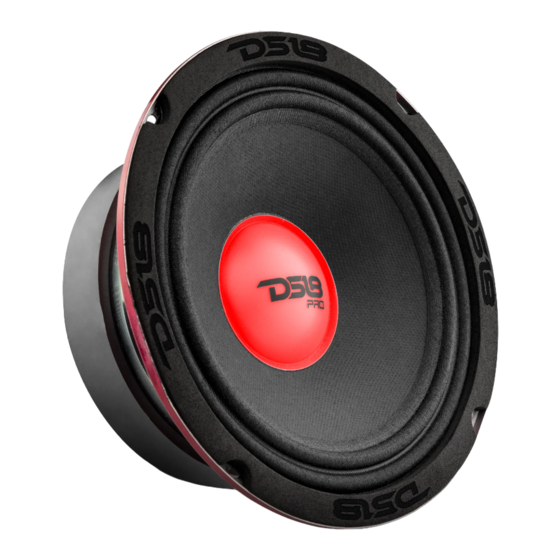

OWNER’S MANUAL PRO-X6.4RGBCAP MANUAL DEL USUARIO 6.5" MID-RANGE LOUDSPEAKER WITH RGB LED DUST CAP ALTAVOZ DE RANGO MEDIO DE 6.5" CON TAPA POLVO DE LUZ LED RGB ’ ENGLISH | ESPAÑOL...
Page 2
PRO-X6.4RGBCAP / ESPECIFICACIONES: SPECIFICATIONS Diámetro Nominal Nominal Diameter / ................6.5" / 165.1 mm Impedancia Nominal Nominal Impedance / ................4 OHMS Manejo de Potencia RMS RMS Power Handling / ..............250 Watts Manejo de Potencia MAX MAX Power Handling / ..............
Page 3
2.64” / 67mm 2.83” / 72mm GARANTÍA WARRANTY Visita nuestra página web DS18.com para obtener más Please visit our website DS18.com for more information información sobre nuestra garantía. on our warranty policy. Nos reservamos el derecho de cambiar productos y We reserve the right to change products and specifications especificaciones en cualquier momento sin previo aviso.
Page 4
PRO-X6.4RGBCAP INSTALLATION & CONNECTION OPTIONS BATTERY BATTERY Blue LED (-) Red LED (-) Green LED (-) LED-BTC 12V DC (+) To connect without LED Control Module (LED-BTC), Connect as Shown in the Following Diagram: Black wire “BK” Connected to Battery Positive (+) 12V White Color Light “R”...
Page 5
INSTALACIÓN Y OPCIONES DE CONEXIÓN BATTERY BATERIA Azul LED (-) Rojo LED (-) Verde LED (-) 12V DC (+) LED-BTC Para conectarse sin el módulo de control LED (LED-BTC), conecte como se muestra en el siguiente diagrama: Cable negro "BK" conectado al positivo de la batería (+) 12V Luz de color blanco “R”;...
Page 6
FOR MORE INFORMATION PLEASE VISIT DS18.COM We LIKE IT LOUD...
