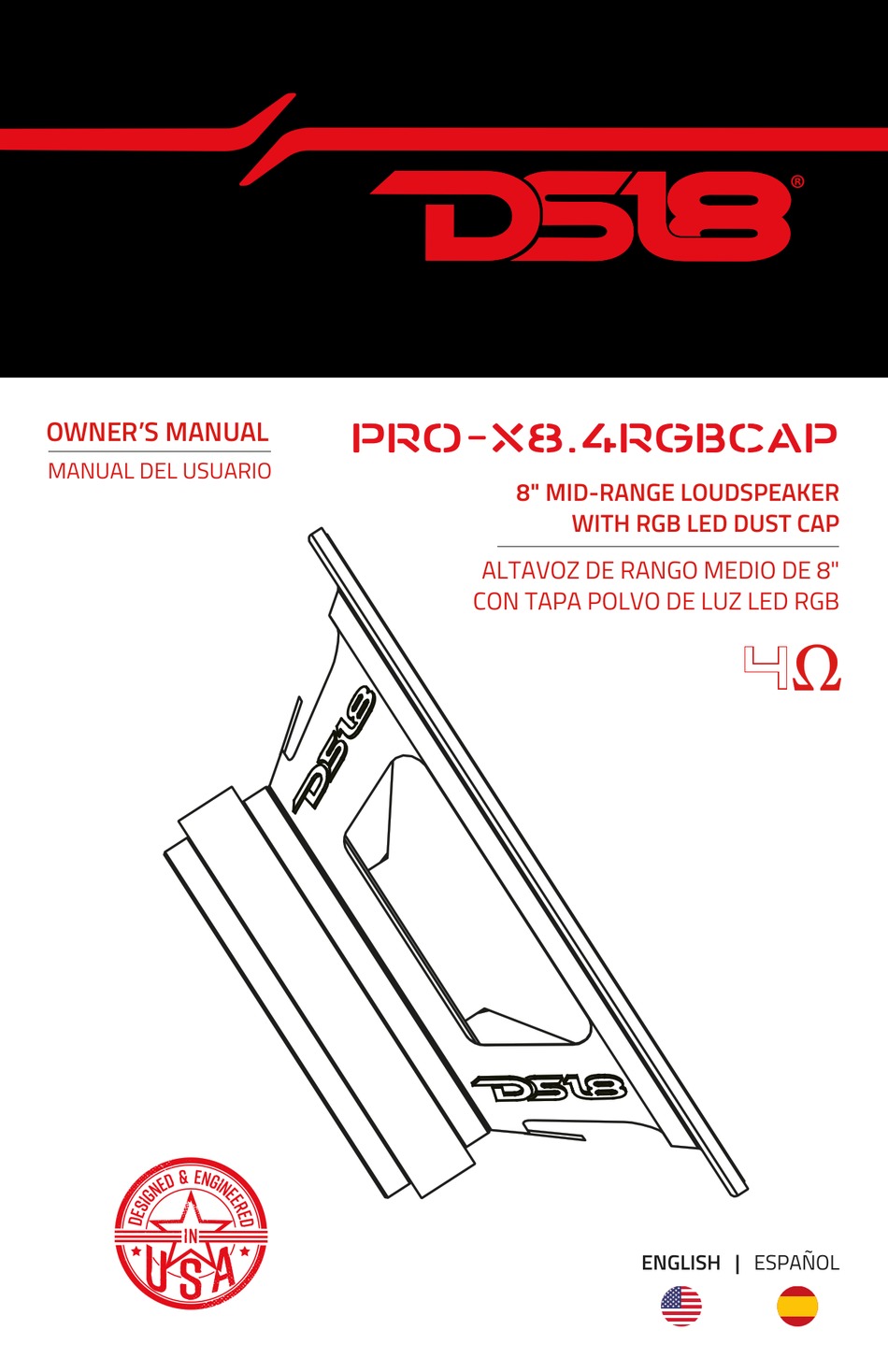

- Page 1 OWNER’S MANUAL PRO-X8.4RGBCAP MANUAL DEL USUARIO 8" MID-RANGE LOUDSPEAKER WITH RGB LED DUST CAP ALTAVOZ DE RANGO MEDIO DE 8" CON TAPA POLVO DE LUZ LED RGB ’ ENGLISH | ESPAÑOL...
- Page 2 PRO-X8.4RGBCAP SPECIFICATIONS / ESPECIFICACIONES: Nominal Diameter / ................8" / 203.2 mm Diámetro Nominal Nominal Impedance / Impedancia Nominal ................4 OHMS RMS Power Handling / ..............275 Watts Manejo de Potencia RMS MAX Power Handling / Manejo de Potencia MAX ..............
-
Page 3: Warranty
MEASUREMENTS / MEDIDAS: 3.18”/81mm 3.42”/87mm WARRANTY GARANTÍA Please visit our website DS18.com for more information Visita nuestra página web DS18.com para obtener más on our warranty policy. información sobre nuestra garantía. We reserve the right to change products and specifications Nos reservamos el derecho de cambiar productos y at any time without notice. - Page 4 PRO-X8.4RGBCAP INSTALLATION & CONNECTION OPTIONS BATTERY BATTERY Blue LED (-) Red LED (-) Green LED (-) LED-BTC 12V DC (+) To connect without LED Control Module (LED-BTC), Connect as Shown in the Following Diagram: Black wire “BK” Connected to Battery Positive (+) 12V White Color Light “R”...
- Page 5 INSTALACIÓN Y OPCIONES DE CONEXIÓN BATTERY BATERIA Azul LED (-) Rojo LED (-) Verde LED (-) LED-BTC 12V DC (+) Para conectarse sin el módulo de control LED (LED-BTC), conecte como se muestra en el siguiente diagrama: Cable negro "BK" conectado al positivo de la batería (+) 12V Luz de color blanco “R”;...
- Page 6 FOR MORE INFORMATION PLEASE VISIT DS18.COM We LIKE IT LOUD...
