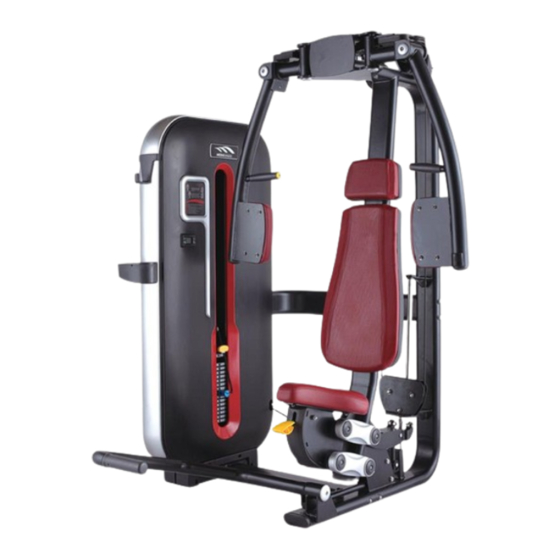

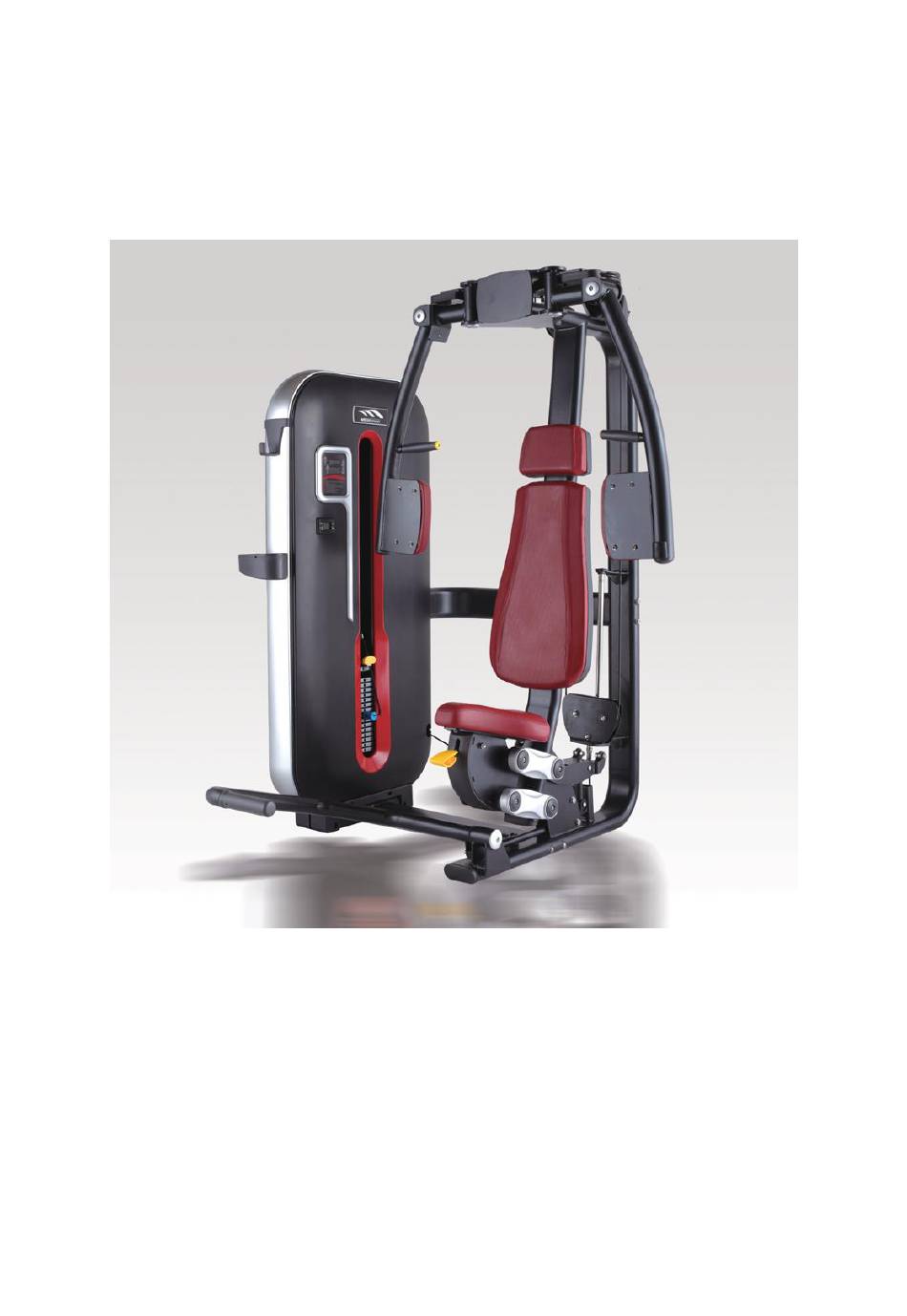

- Page 1 Butterfly MT-002 http://bronze-gym.ru/bronze-gym-mt-002-batterflyay USER MANUAL CONTENTS...
-
Page 2: Table Of Contents
1.INTRODUCTION..........................1 2. FEATURE.............................1 3. WARNING..........................1, 2 4. GUIDANCE..........................2, 3 5. NOTICE............................3 6. MAINTENANCE..........................3 7 . ASSEMBLY..........................4 8. CABLE............................5 9. EXPLODED VIEW........................6 10. TOOLS FOR ASSEMBLY......................7 11. STEPS OF ASSEMBLY....................7,8,9,10... -
Page 3: Introduction
1. INTRODUCTION Thank you for purchasing this unit. For your health and safety, please make a reasonable training program with suitable weight stack and correct postures under the coach’s guidance before starting the workout. Kindly please read this manual carefully before using the unit. -
Page 4: Guidance
motion parts, so as not to injure the finger. 12. Never allow person with heart disease and children under 12 to use machine 13. The training equipment is in compliance with EN 957-2 class S(S=studio); 14. The max training weight is 150kgs (330pound). The max user’s body weight is 150kg (330pound). -
Page 5: Notice
2 Adjust the seat then put your back firmly against back pad. 3 Insert pin into weight stack at desired resistance level. 4 Arm natural contraction, both hands holding the whip handle. 5 Arm extension forward, slowly forward push movable arm. Until completely stretched arm. -
Page 6: Cable
installed more easily Reading the details and instructions before installing: 1. Because the size and weight of equipment is so large, Please choose the installed place near the desired station and assured there is enough space to exercise 2. All parts can be put on the clear area, then backout the wrapper. And the wrapper can’t be through away before installation finished. -
Page 7: Exploded View
9. EXPLODED VIEW... -
Page 8: Tools For Assembly
10. TOOLS FOR ASSEMBLY 1. M4 Allen Wrench... -
Page 9: Steps Of Assembly
2. M6 Allen Wrench 3. M8 Allen Wrench 4. Cross screwdriver 5. 17-19 Wrench 1pc 11. STEPS OF ASSEMBLY...
