PuK3

Product Description

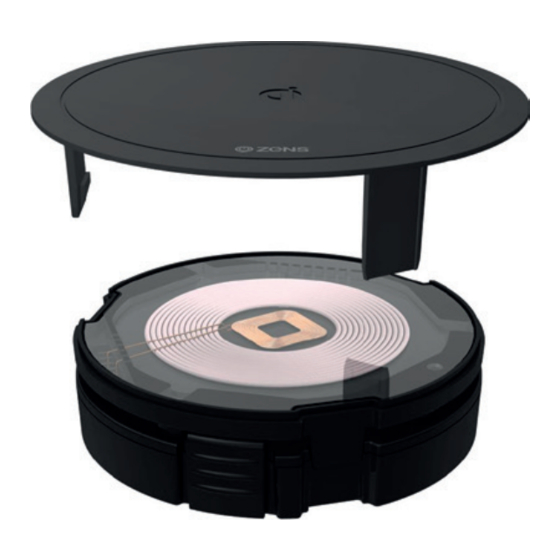

The ZENS PuK 3 is a fast charging device that decreases charging time dramatically.
The device works based on induction technology. The PuK is equipped with a very large
coil which continuously detects a device's signal and starts charging automatically as
soon as a Qi device is placed on top of the charger. It allows you to turn almost any
flat surface into a wireless charging spot with no visual impact on design aesthetics.
Product Specification
- Quick installation
- Comes with main adapter
- Suitable for 80mm grommet
- Surface or sub-surface installation
- Direct access to power charging
- IP Rating: IP-43 water resistant rating
- Aluminium body to ensure lowest
operation temperature
- Automatic shutdown once fully charged
- Ultra low standby power
- Can be installed in almost any material
(except steel)

Technical Details

Transmitter unit
Input voltage 15V
Output current 1.5A
Charging capacity 15W
Switching frequency 110 to 125 kHz
Operating temperature 0 to 35°C
Storage temperature -20 to +70°C
Wireless Charger

Application Range

- Executive Desks
- Workstations
- Home Office
- Conference Tables
- Collaborative Areas
- Reception Desk
- Hotel Rooms

Cover Colours

- Black
- White
Power Supply
Input Voltage 100 to 240 V AC
Output Current 1.5A DC max
Input Frequency 50/60 Hz
Output Voltage 15.0 V DC +/- 5%
Efficiency Level Energy Efficiency Class V
Standby Power < 0.3 W
Cable Length 1800 ± 50mm
