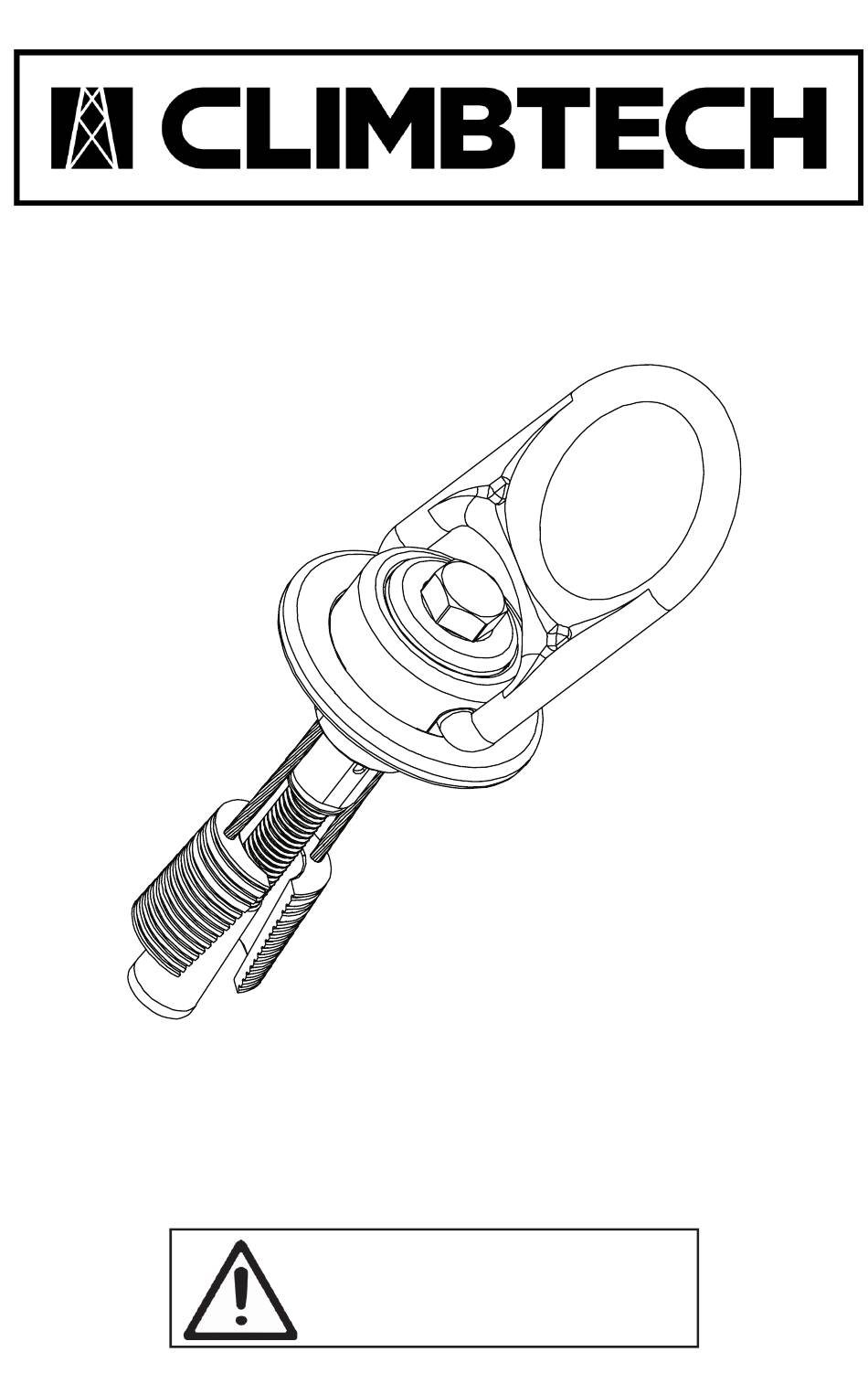

OPERATION AND INSTRUCTION MANUAL
39mm Mining Hybrid Model: SWHM39N
WARNING:
ALL PERSONS USING THIS EQUIPMENT MUST
READ AND UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO
SO MAY RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD
BE FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS
EQUIPMENT. ALL INDIVIDUALS WHO USE THIS PRODUCT MUST
BE PROPERLY INSTRUCTED ON HOW TO USE THE DEVICE. AVOID
CONTACT WITH PHYSICAL HAZARDS (THERMAL, CHEMICAL,
ELECTRICAL, ETC.). MAKE ONLY COMPATIBLE CONNECTIONS.
V2.6-A
Advertisement
Table of Contents
Related Manuals for ClimbTech SWHM39N
Summary of Contents for ClimbTech SWHM39N
- Page 1 OPERATION AND INSTRUCTION MANUAL 39mm Mining Hybrid Model: SWHM39N WARNING: ALL PERSONS USING THIS EQUIPMENT MUST READ AND UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD BE FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS EQUIPMENT.
- Page 2 PURPOSE The SWHM39N is an anchorage connector designed to function as an interface between the anchorage and a fall protection, work positioning, rope access, or rescue system for the purpose of coupling the system to the anchorage. Any references to “anchorage connector”...
- Page 3 Tensile Strength (UTS): 10,000-lbf (44kN) Maximum Capacity: 310-lbs (140kg) Weight: 2.4-lbs (1070g) Regulatory Compliance OSHA 1910.66 , 1926.502 6-1/4” (15.88cm) 2.25”ø (57.15mm) 5.5” Sleeve Compression (139.7mm) Bushing Bolt Cone Cable Spoon Retaining 3.0” 1.0” Bushing (76.2mm) (25.4mm) COMPONENT MATERIALS: Compression Bushing: Polyethylene Bolt: Zinc Plated Steel Retaining Bushing: Zinc Plated Steel Sleeve: Zinc Plated Steel...
- Page 4 180˚ 8.0”ø (203.2mm) 360˚ LOADING CONDITIONS DIAGRAM LOAD LOAD LOAD LOAD ACCEPTABLE ACCEPTABLE ACCEPTABLE IMPROPER IMPORTANT! *Installation location of the friction rock bolt to be able to handle a 10,000-lbf (44kN) load and be approved by a qualified person. 39mm Installed Size: 31-34mm only...
- Page 5 INSTALLATION: 1. Before installing, make sure cone is 2. Pull up on bolt while holding swivel below the spoons. Insert anchor into flush with the friction rock bolt. Tighten hole so base plate rests flat on top of bolt on swivel by turning it clockwise friction rock bolt surface.
- Page 6 REMOVAL: 1. Loosen bolt so that at least 3/4” (1.9cm) of threads are exposed. UNSCREW MINIMUM 3/4” Step 1. (1.9cm) 2. Use a hammer to tap down bolt and disengage cone from the spoons. 3. Pull the anchor from the hole. Pull UP Step 3.
- Page 7 WORK SURFACE (ANCHOR POINT) WORK SURFACE Free fall distance (limit) must not exceed 6’ (1.8 m). *All products subjected to fall arresting forces should be removed from service immediately! MINIMUM CLEARANCE 3ft (1m) DECK/FLOOR/GROUND LEVEL...
- Page 8 LIMITED REMEDY: Upon notice in writing, ClimbTech will repair or replace all defective items at ClimbTech’s sole discretion. ClimbTech reserves the right to require that the defective item be returned to its plant for inspection before determining the appropriate course of action. Warranty does not cover equipment damage resulting from wear, abuse, damage in transit, failure to maintain the product or other damage beyond the control of ClimbTech.
