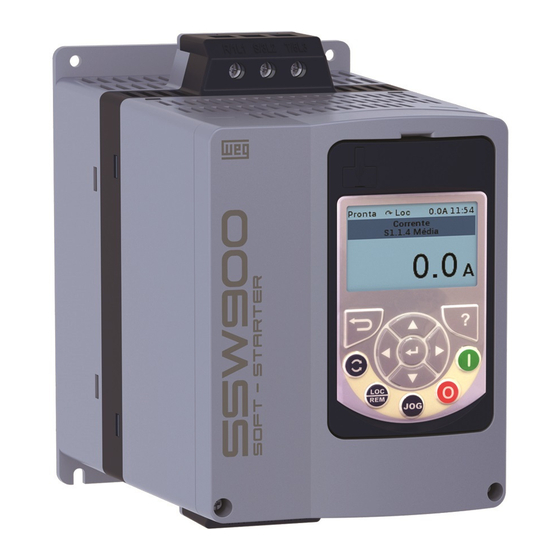

WEG SSW900 Series User Manual
  1. Manuals
  2. Brands
  3. WEG Manuals
  4. Controller
  5. SSW900 Series
  6. User manual
WEG SSW900 Series User Manual

WEG SSW900 Series User Manual

Anybus profinet io
Hide thumbs Also See for SSW900 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Motors | Automation | Energy | Transmission & Distribution | Coatings
Anybus PROFINET IO
SSW900-CPN-IO-N
User's Guide

Advertisement

Table of Contents
loading

Related Manuals for WEG SSW900 Series

Summary of Contents for WEG SSW900 Series

  • Page 1 Motors | Automation | Energy | Transmission & Distribution | Coatings Anybus PROFINET IO SSW900-CPN-IO-N User’s Guide...
  • Page 2 Anybus PROFINET IO User’s Guide Series: SSW900 Software version: 1.5X Language: English Document: 10004633645 / 05 Build 6066 Publication Date: 09/2022...
  • Page 3 Summary of Revisions The information below describes the reviews made in this manual. Version Revision Description V1.0X First edition V1.1X General revision V1.2X General revision V1.3X Parameters related to the SSW900-CETH-W accessory. Parameter for adjusting the contrast of the HMI display. Text corrections. V1.4X C6.2.1, C11.4.

  • Page 4: Table Of Contents

    Contents Contents ABOUT THE MANUAL ................. . . ABBREVIATIONS AND DEFINITIONS .
  • Page 5 Contents 8 WEB SERVER ................... . . 9 FAULTS AND ALARMS .

  • Page 6: About The Manual

    ABOUT THE MANUAL ABOUT THE MANUAL This manual supplies the necessary information for the operation of the SSW900 soft-starter using the Anybus PROFINET IO interface. This manual must be used together with the SSW900 user’s manual and programming manual. ABBREVIATIONS AND DEFINITIONS ASCII American Standard Code for Information Interchange Electronic Industries Alliance...

  • Page 7: Main Characteristics

    MAIN CHARACTERISTICS 1 MAIN CHARACTERISTICS Below are the main characteristics for communication of the soft-starter SSW900 with Anybus PROFINET IO accessory. • The interface follows the Fast Ethernet 100BASE-TX standard. • It allows communication using 100 Mbps rate in full duplex mode. •...

  • Page 8: Interface Description

    INTERFACE DESCRIPTION 2 INTERFACE DESCRIPTION The SSW900 soft-starter has two Slots for accessories (Figura 2.1). Parameters S3.5.1 and S3.5.2 present which accessory was recognized by Slot. The accessories can be connected to any Slot, but only one type of each communication accessory is allowed. The Anybus-CC communication accessories (regardless of the protocol implanted) are identified on these pa- rameters as Anybus-CC.

  • Page 9: Indication Leds

    INTERFACE DESCRIPTION 2.3 INDICATION LEDS The PROFINET IO accessory has an LED indicator for the Link status in each Ethernet connector (– and —), and two LEDs for state indication, one for the communication module (MS) and another for the network (NS). These LEDs have the following functions and indications.

  • Page 10: Profinet Network Installation

    PROFINET NETWORK INSTALLATION 3 PROFINET NETWORK INSTALLATION This chapter presents recommendations related to equipment installation in an PROFINET network. 3.1 IP ADDRESS Every equipment in an Ethernet network needs an IP address and subnet mask. The IP addressing is unique in the network, and each equipment must have a different IP. The subnet mask is used to define which IP address range is valid in the network.

  • Page 11: Recommendations For Grounding Connection And Cable Routing

    PROFINET NETWORK INSTALLATION Figure 3.1: Star topology It is also possible to make the connection in daisy chain, allowing a topology equivalent to a bus. Figure 3.2: Daisy chain topology ✓ NOTE! When the equipment is turned off, the built-in switch is also deactivated, preventing communication with the subsequent equipment.

  • Page 12: Status

    S STATUS 4 S STATUS Allows viewing of the SSW reading variables. S5 COMMUNICATIONS HMI monitoring parameters of the communication interfaces. For a detailed description, refer to the Anybus-CC, CANopen, DeviceNet, Ethernet and Modbus RTU User’s Manuals of the SSW according to the interface used. S5.1 Status Word .1 SSW 0 ...

  • Page 13: S5.3 Value For Outputs

    S STATUS Description: Command word of all sources of the SSW. The RUN/STOP and JOG commands of the sources which are not active will be reset. .5 Slot1 Control word via any communication accessory connected to Slot 1. .6 Slot2 Command word via any communication accessory connected to Slot 2. Value/Description Bit 0 0: stopping by ramp.

  • Page 14: S5.5 Anybus-Cc

    S STATUS S5.5 Anybus-CC .1 Identification 0 ... 25 .2 Comm. Status 0 ... 8 Description: Status of the Anybus communication accessory and the protocols that use this interface. .1 Identification It allows identifying the connected Anybus module. Indication Description 0 = Disabled Communication module not installed.

  • Page 15: Configurations

    C CONFIGURATIONS 5 C CONFIGURATIONS This menu allows the programming of all SSW configuration parameters. C8 COMMUNICATIONS To change information via communication network, the SSW has several standard protocols. The following necessary accessories and protocols are available: Protocol Accessory CANopen SSW900-CAN-W DeviceNet SSW900-CDN-N, SSW900-CAN-W...

  • Page 16: C8.1.2 Data Write

    C CONFIGURATIONS C8.1.1 Data Read C8.1.1.2 Slot 1 Quantity Range: 1 ... 50 Default: 1 Properties: Stopped Description: It sets the number of read words for data communication (inputs for master), from the first word on. C8.1.1 Data Read C8.1.1.3 Slot 2 1st Word Range: 1 ...
  • Page 17 C CONFIGURATIONS Description: It sets the number of write words for data communication (outputs for master), from the first word on. C8.1.2 Data Write C8.1.2.3 Slot 2 1st Word Range: 1 ... 20 Default: 11 Properties: Stopped Description: It sets the index of the first programmable write word for data communication (outputs for master). C8.1.2 Data Write C8.1.2.4 Slot 2 Quantity Range:...

  • Page 18: C8.3 Anybus-Cc

    C CONFIGURATIONS Description: Select the net address of other parameter, which content will be available as writing data for fieldbus interfaces (outputs: received from master). The data size of the referenced parameter must be considered. If data size is bigger than 16 bits, the next data write word configuration must be set to the same net address.
  • Page 19 C CONFIGURATIONS Description: It allows programming the IP address of the module Anybus-CC EtherNet/IP, Modbus TCP, PROFINET IO or PROFINET S2. It is only effective if C8.3.4 = Parameters. ✓ NOTE! After changing this configuration, for the modification to be effective, the equipment must be turned off and then turned on again, or the configurations must be updated through C8.3.1.

  • Page 20: C8.3.10 Off Line Error

    C CONFIGURATIONS C8.3 Anybus-CC C8.3.7 Gateway Range: 0.0.0.0 ... 255.255.255.255 Default: 0.0.0.0 Properties: Description: It allows programming the IP address of the standard gateway used by the module Anybus-CC EtherNet/IP, Modbus TCP, PROFINET IO or PROFINET S2. It is only effective if C8.3.4 = Parameters. ✓...
  • Page 21 C CONFIGURATIONS The actions described in this parameter are executed through the writing of the respective bits in the control word of the SLOT to which the accessory Anybus-CC DeviceNet, EtherNet/IP, Profibus DP or PROFINET is connected. Thus, for the commands to be effective, the equipment must be programmed to be controlled by the network interface used.

  • Page 22: Operation In The Profinet Io Network

    OPERATION IN THE PROFINET IO NETWORK 6 OPERATION IN THE PROFINET IO NETWORK 6.1 CYCLIC DATA Cyclic data is the data normally used for status monitoring and equipment control. For PROFINET IO protocol, the interface supports an I/O connection that allows communication up to 50 input words and 20 output words. However, the number of input words added to the output words can not be greater than 64 words.

  • Page 23: Output Words

    OPERATION IN THE PROFINET IO NETWORK Table 6.1: Example of configuration of the writing words. Configuration Parameter Mapped Parameter Net Id Input Area Value C8.1.1.30 Data Read Word #26 S3.1.3.1 0063h C8.1.1.31 Data Read Word #27 S1.2.4 088Ah C8.1.1.32 Data Read Word #28 S1.1.4 0017h (S1.1.4 low word) C8.1.1.33 Data Read Word #29...

  • Page 24: Acyclic Data

    OPERATION IN THE PROFINET IO NETWORK Table 6.2: Example of configuration of the writing words. Configuration Parameter Mapped Parameter Net Id Output Area Value C8.1.2.6 Data Write Word #1 S5.2.5 0013h C8.1.2.7 Data Write Word #2 S5.3.1 0007h C8.1.2.8 Data Write Word #3 S5.3.2.1 03FFh ✓...

  • Page 25: Xml File - Gsdml

    This file is used by a master or configuration software to program devices present at PROFINET IO network. The GSDML file is available from WEG website (http://www.weg.net). It is important to note if the GSDML configuration file is compatible with the firmware version of the SSW900 soft-starter.

  • Page 26: Startup Guide

    The PROFINET IO module is recognized as “SSW900 Anybus-CC”, at the “General” category. The GSDML file is available from WEG website (http://www.weg.net). It is important to note if the GSDML configuration file is compatible with the firmware version of the SSW900 soft-starter.

  • Page 27: Communication Status

    STARTUP GUIDE 3. For the master configuration, in addition to the IP address and name used by the PROFINET IO module, you must indicate the number of I/O words exchanged with the master. It is necessary to select word by word, first selecting all input words and then all output words.

  • Page 28: Web Server

    WEB SERVER 8 WEB SERVER Besides the communication protocol, the Ethernet interface also provides a WEB server with a simple HTML page to access SSW900 soft-starter data. If the IP address is known, you can use a web browser by typing the IP address in the browser address bar, and it will present a web page with links to interface settings and device data.

  • Page 29: Faults And Alarms

    FAULTS AND ALARMS 9 FAULTS AND ALARMS Fault/Alarm Description Possible Causes F129/A129: Anybus Offline It indicates communication interruption of Anybus- - The master PLC went to the idle or programming CC accessory with network master. state. - Programming error, the number of programmed I/O words in the slave differs from the number ad- justed in the master.

  • Page 30: 10Quick References

    QUICK REFERENCES 10 QUICK REFERENCES 10.1 PARAMETER STRUCTURE Level 1 Level 2 Level 3 Page Status Measurements S1.1 Current S1.2 Main Line Voltage S1.3 Output Voltage S1.4 SCR Blocking Voltage S1.5 Output Power & P.F. S1.6 P.L.L. S1.7 Motor Torque S1.8 Control Voltage S2.1...
  • Page 31 QUICK REFERENCES Level 1 Level 2 Level 3 Page Configurations Starting and Stopping Nominal Motor Data LOC/REM Selection C4.1 Digital Inputs C4.2 Digital Outputs C4.3 Analog Output Protections C5.1 Voltage Protections C5.2 Current Protections C5.3 Torque Protections C5.4 Power Protections C5.5 Phase Sequence C5.6...

  • Page 32: Parameters

    10.2 PARAMETERS Table 10.2: Characteristics of the parameters for the communication protocol Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words S1 Status\Measurements S1.1 Current S1.1.1 R Phase 0.0 to 14544.0 A 32bit S1.1.2 S Phase 0.0 to 14544.0 A 32bit...
  • Page 33 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words S1.7.1 Motor %Tn 0.0 to 999.9 % 16bit S1.8 Control Voltage S1.8.1 Input 0.0 to 999.9 V 16bit S1.8.2 0.00 to 9.99 V 16bit S1.8.3 +12V 0.0 to 99.9 V 16bit...
  • Page 34 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words 11 = Start Delay 12 = Re-start Delay 13 = General Disabled 14 = Configuration S3.1.2 Active Command Source enum 0 = HMI Keys LOC 1 = HMI Keys REM 2 = DIx LOC 3 = DIx REM...
  • Page 35 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words Bit 4 = Reset Needs Bit 5 = Copy HMI Bit 6 = Test Mode Bit 7 ... 15 = Reserved S3.2 Software Version S3.2.1 Package 0.00 to 99.99 16bit...
  • Page 36 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words S3.5.1 Slot 1 enum 0 = Without 1 = Anybus-CC 2 = RS-485 3 = PT100 4 = I/Os Exp. 5 = Profibus 6 = CAN 7 = Ethernet 8 = External Current Acqu.
  • Page 37 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words Bit 6 = Bypass Bit 7 = Ramp Down Bit 8 = Remote Bit 9 = Braking Bit 10 = FWD/REV Bit 11 = Reverse Bit 12 = Ton Bit 13 = Toff Bit 14 = Alarm...
  • Page 38 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words Bit 0 = Start/Stop Bit 1 = Gener. Enabled Bit 2 = JOG Bit 3 = FWD/REV Bit 4 = LOC/REM Bit 5 ... 6 = Reserved Bit 7 = Reset Bit 8 ...
  • Page 39 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words S5.4.4 Telegram with Error 0 to 65535 16bit S5.4.5 Reception Errors 0 to 65535 16bit S5.5 Anybus-CC S5.5.1 Identification enum 0 = Disabled 1 ... 15 = Reserved 16 = Profibus DP 17 = DeviceNet 18 = Reserved...
  • Page 40 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words 0 = Disabled 1 = Auto-baud 2 = CAN Enabled 3 = Warning 4 = Error Passive 5 = Bus Off 6 = No Bus Power S5.7.2 Received Telegram 0 to 65535...
  • Page 41 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words S5.8.3 EIP Master Status enum 0 = Run 1 = Idle S5.8.4 EIP Communication Status enum 0 = Disabled 1 = No connection 2 = Connected 3 = Timeout in I/O Connection 4 = Duplicated IP S5.8.5...
  • Page 42 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words S6.4.8 User #8 -10000 to 10000 1124 1124 s32bit S6.4.9 User #9 -10000 to 10000 1126 1126 s32bit S6.4.10 User #10 -10000 to 10000 1128 1128 s32bit S6.4.11...
  • Page 43 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words S6.4.50 User #50 -10000 to 10000 1208 1208 s32bit D1 Diagnostics\Fault D1.1 Actual D1.1.1 Fxxx 0 to 999 16bit D1.2 Fault History D2 Diagnostics\Alarms D2.1 Actual D2.1.1 Axxx 1...
  • Page 44 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words ◦ D5.2.4 Channel 4 -20 to 260 s16bit ◦ D5.2.5 Channel 5 -20 to 260 s16bit ◦ D5.2.6 Channel 6 -20 to 260 s16bit D6 Diagnostics\Hours Control D6.1 Powered 0 to 4294967295 s...
  • Page 45 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words C1.19 Min. Stop Torque Time 1 to 99 % 8bit C2 Configurations\Nominal Motor Data C2.1 Voltage 1 to 999 V 16bit C2.2 Current 0.1 to 2424.0 A 16bit C2.3 Speed...
  • Page 46 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words C4.1 Digital Inputs C4.1.1 enum 0 = Not Used 1 = Start / Stop 2 = Start (3 Wires) 3 = Stop (3 Wires) 4 = General Enable 5 = LOC / REM 6 = JOG 7 = FWD / REV...
  • Page 47 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words 10 = Brake 11 = Reset 12 = Load User 1/2 13 = Reserved 14 = Emergency Start 15 ... 16 = Reserved C4.1.4 enum 0 = Not Used 1 = Start / Stop 2 = Start (3 Wires)
  • Page 48 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words 5 = LOC / REM 6 = JOG 7 = FWD / REV 8 = No External Fault 9 = No External Alarm 10 = Brake 11 = Reset 12 = Load User 1/2 13 ...
  • Page 49 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words 13 = I motor % > Value 14 = Breaker Shunt Trip C4.2.3 enum 0 = Not Used 1 = Running 2 = Full Voltage 3 = Bypass 4 = Not Used 5 = DC Braking...
  • Page 50 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words C5 Configurations\Protections C5.1 Voltage Protections C5.1.1 Motor Undervoltage C5.1.1.1 Mode enum 0 = Inactive 1 = Fault F002 2 = Alarm A002 C5.1.1.2 Level 0 to 30 %Vn 8bit C5.1.1.3 Time...
  • Page 51 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words 1 = Fault F074 2 = Alarm A074 C5.2.3.2 Level 0 to 30 %In 8bit C5.2.3.3 Time 1 to 99 s 8bit C5.3 Torque Protections C5.3.1 Undertorque C5.3.1.1...
  • Page 52 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words 0 = Inactive 1 = Fault F076 C5.6.2 Overcurrent enum 0 = Inactive 1 = Fault F063 C5.6.3 Closed enum 0 = Inactive 1 = Fault F077 C5.7 Time Protections C5.7.1...
  • Page 53 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words 0 = Fault F102 1 = Alarm A102 2 = F102 and A102 ◦ C5.8.6.2 Fault Level 0 to 250 8bit ◦ C5.8.6.3 Alarm Level 0 to 250 8bit ◦...
  • Page 54 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words C5.8.13.1 Mode 1010 1010 enum 0 = Off 1 = On 2 = On Stator C5.8.14 Ch5 Sensor Fault C5.8.14.1 Mode 1002 1002 enum 0 = Fault F113 and F121 1 = Alarm A113 and A121 C5.8.15 Ch5 Overtemperature...
  • Page 55 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words 3 = F005 and A005 C5.9.3 Alarm Level 0 to 100 % 8bit C5.9.4 Alarm Reset 0 to 100 % 8bit C5.9.5 Motor Temperature enum 0 = T.C.
  • Page 56 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words 1 = Fault F020 C5.11 Fault Auto-Reset C5.11.1 Mode enum 0 = Off 1 = On C5.11.2 Time 3 to 600 s 16bit C6 Configurations\HMI C6.1 Password C6.1.1...
  • Page 57 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words 1 = Ramp Stop 2 = General Disable 3 = Change to LOC 4 = Change to REM C6.6.3 Time 1 to 999 s 16bit C7 Configurations\Special Functions C7.1 Forward/Reverse...
  • Page 58 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words C8.1.1.5 Word #1 0 to 65535 1300 1300 16bit C8.1.1.6 Word #2 0 to 65535 1301 1301 16bit C8.1.1.7 Word #3 0 to 65535 1302 1302 16bit C8.1.1.8...
  • Page 59 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words C8.1.1.47 Word #43 0 to 65535 1342 1342 16bit C8.1.1.48 Word #44 0 to 65535 1343 1343 16bit C8.1.1.49 Word #45 0 to 65535 1344 1344 16bit C8.1.1.50...
  • Page 60 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words 1 = 19200 bits/s 2 = 38400 bits/s 3 = 57600 bits/s C8.2.4 Bytes Config. enum 0 = 8 bits, no, 1 1 = 8 bits, even,1 2 = 8 bits, odd, 1 3 = 8 bits, no, 2 4 = 8 bits, even,2...
  • Page 61 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words 3 = 224.0.0.0 4 = 240.0.0.0 5 = 248.0.0.0 6 = 252.0.0.0 7 = 254.0.0.0 8 = 255.0.0.0 9 = 255.128.0.0 10 = 255.192.0.0 11 = 255.224.0.0 12 = 255.240.0.0 13 = 255.248.0.0 14 = 255.252.0.0...
  • Page 62 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words C8.3.9.3 Modbus TCP Timeout 0.0 to 999.9 s 16bit C8.3.10 Off Line Error C8.3.10.1 Mode enum 0 = Inactive 1 = Fault F129 2 = Alarm A129 C8.3.10.2 Alarm Action enum...
  • Page 63 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words 4 = Change to REM C8.5 Ethernet C8.5.1 IP Address Config enum 0 = Parameters 1 = DHCP C8.5.2 IP Address 0.0.0.0 to 255.255.255.255 ip_address C8.5.3 CIDR Sub-net enum...
  • Page 64 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words C8.5.7 EIP Data Profile enum 0 ... 9 = Reserved 10 = 110/160-Configurable I/O C8.5.9 Modbus TCP Error C8.5.9.1 Mode enum 0 = Inactive 1 = Fault F149 2 = Alarm A149 C8.5.9.2 Alarm Action...
  • Page 65 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words 8 = 130 A 9 = 171 A 10 = 200 A 11 = 255 A 12 = 312 A 13 = 365 A 14 = 412 A 15 = 480 A 16 = 604 A 17 = 670 A...
  • Page 66 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words 8 = External Current Acqu. C9.4 Fan Configuration C9.4.1 Mode enum 0 = Always Off 1 = Always On 2 = Controlled C10 Configurations\Load / Save Parameters C10.1 Load / Save User C10.1.1...
  • Page 67 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words 0 = Stop Program 1 = Run Program C11.2 Action App. Not Running 1103 1103 enum 0 = Inactive 1 = Alarm A708 2 = Fault F708 C11.3 Parameter C11.3.1...
  • Page 68 Parameter Description Range of values Decimal Index Length Net Id Size Qty mapped places words C11.3.36 User #36 -10000 to 10000 1180 1180 s32bit C11.3.37 User #37 -10000 to 10000 1182 1182 s32bit C11.3.38 User #38 -10000 to 10000 1184 1184 s32bit C11.3.39...
  • Page 69 QUICK REFERENCES Table 10.3: Description of the parameter data types Data Type Description enum Enumerated type (unsigned 8-bit) contains a list of values with function description for each item. 8bit Unsigned 8-bit integer, ranges from 0 to 255. 16bit Unsigned 16-bit integer, ranges from 0 to 65,535. s16bit Signed 16-bit integer, ranges from -32,768 to 32,767.
  • Page 70 WEG Drives & Controls - Automation LTDA. Jaraguá do Sul - SC - Brazil Phone 55 (47) 3276-4000 - Fax 55 (47) 3276-4020 São Paulo - SP - Brazil Phone 55 (11) 5053-2300 - Fax 55 (11) 5052-4212 automacao@weg.net www.weg.net...
