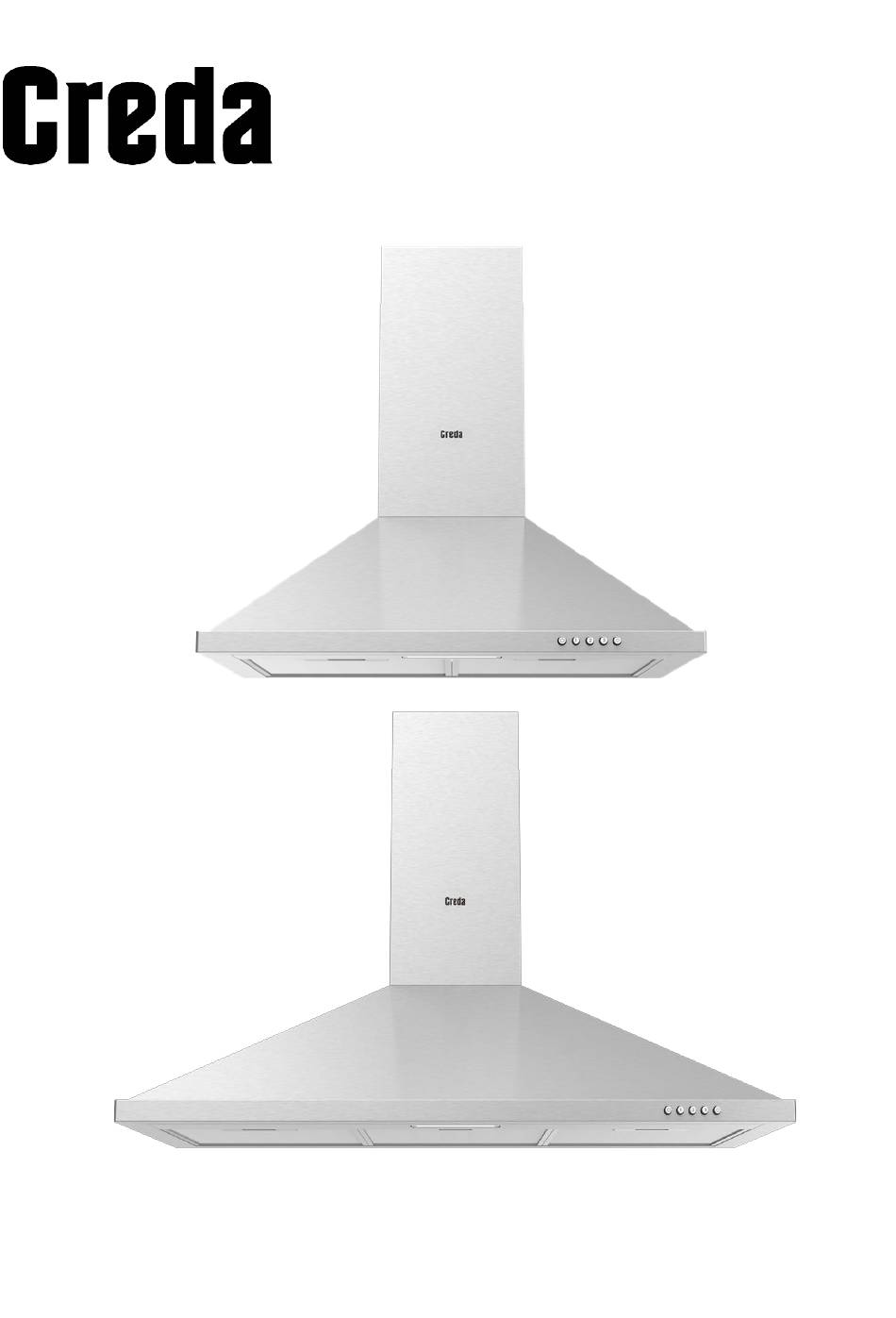

- Page 1 CHIMNEY COOKER HOOD USER MANUAL MODEL/S C60CHX C90CHX V 1.0 C90CHA...
- Page 2 If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions, or online at www.creda.co.uk If you still require further assistance, call one of our experts on 01759 487836.
-
Page 3: Table Of Contents
USER MANUAL Contents — PAGE Safety instructions General overview Accessories Use of Cooker Hood Installation Control panel Maintenance and cleaning Efficient use of the device Transporting the device Troubleshooting Help and Assistance... -
Page 4: Safety Instructions
USER MANUAL SAFETY INSTRUCTIONS It is recommended that the product is installed by authorized persons. Installation by unauthorized persons could lead to poor operation performance, damage to the product, and accidents. The product will not be covered by the warranty. Electric cooker hoods shall not be connected to a flue or air duct that is used to discharge the smoke from devices that use gas or other fuels (stove, water heater, thermosiphon, etc.). - Page 5 USER MANUAL GENERAL VIEW 1.Inner flue 2.Outer flue 3.Body 4.Filter 5.Control panel 6.Light 7.Handle* Note: Product images are representative. Product may vary in size and model.
- Page 6 USER MANUAL ACCESSORRIES...
- Page 7 USER MANUAL INSTALLATION Mounting Distances Distance between the cooker and the cooker hood must be considered prior to assembly. The distance between the hob and the hood shall be at least 65 cm. Body Mounting Drill the product from points A with a Ø8 drill bit and from points B with a Ø6 drill bit as per the dimensions given below.
- Page 8 USER MANUAL Carbon Filter Assembly Open the product cover and take out the aluminum filter. Turn the carbon filter in the direction of the arrow by pressing the sides. (see Fig. 1-2) Flap Assembly Air Discharge valve prevents the entry of foreign bodies in the engine group in the installation of the products with a flue.
- Page 9 USER MANUAL Mounting of Aluminum Pipe Mount the flexible aluminum pipe on the flue. Install the other end of the pipe to the flue hole in the kitchen. Spiral tube and screw clamp are not included in the product accessories. They should be purchased additionally. (See Fig.
- Page 10 USER MANUAL Installation of the Handle * To install the handle, remove the filters first as shown in Figure 11. After aligning the handle with the installation holes as shown in figure 12, tighten the handle screw to the handle from the interior of the hood. USE OF THE COOKER HOOD Hood may be used in kitchens with or without flue.
- Page 11 USER MANUAL Usage of the Carbon Filter The product you are using has a feature of carbon filter usage. Grease filters must be installed in the product, regardless of whether carbon filters are used or not. Do not use your WARNING: Since carbon filters are optional parts, they must be purchased from the service at an additional fee.
-
Page 12: Control Panel
USER MANUAL CONTROL PANEL Push Button: Pressing the buttons activates different functions. To turn them off, simply press the button. Motor operates at medium speed. Turns off the motor. Motor operates at maximum speed. (Excluding the lighting system) Turns the light on and off. Motor operates at low speed. -
Page 13: Efficient Use Of The Device
USER MANUAL EFFICIENT USE OF THE DEVICE Use pipes with a diameter of 120 mm and few elbows as much as possible while connecting the hood to the flue. Pay attention to the cleaning periods of the metal filters and replacement periods of the carbon filters. Use the device in the middle stage when it does not require intensive suction power. -
Page 14: Troubleshooting
USER MANUAL TROUBLESHOOTING Upon contacting your service provider, please indicate the product model name that you can see on the unit label to request replacement parts. Once you remove the aluminum filter, you can see the label on the unit. Check your device according to the table below before contacting the service team. -
Page 15: Help And Assistance
Local call rates apply* Lines open 9am-5:30pm Monday to Friday *Calls to Creda enquiry lines may attract a charge and set up fee from residential lines depending on your call plan/tariff. Mobile and other providers costs may vary, see www.bt.com/pricing for details. - Page 16 • Specifications are subject to change without notice. • Creda disclaim any liability for loss or damage arising from the breakdown of the product. • This guarantee is in addition to and does not diminish your statutory or legal rights.
- Page 17 USER MANUAL Declaration of conformance to product standards This appliance conforms to all relevant standards applicable to domestic appliances sold in the UK. Disposal This appliance/fitting is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
- Page 18 USER MANUAL The page is intentionally blank...
- Page 19 USER MANUAL The page is intentionally blank...
- Page 20 USER MANUAL...
