WURM SVD001 Quick Start Manual

WURM SVD001 Quick Start Manual

Control module for valves with bipolar stepper motor drive

Advertisement

Quick Links

1

Front view

SVD001: emergency operation through 24V= Backup supply input (terminal 51)
SVD101: emergency operation through integrated emergency closing module

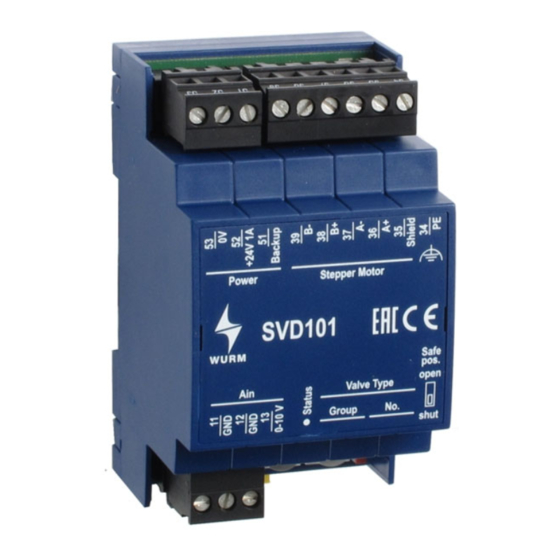

Fig. 1: Front view of SVD001 and SVD101
2

Features

 Connection of pre-defined valve types
 Control of 1 valve
 0...10V input for control of valve position (galvanically isolated)
 Valve type selection by 2 rotary switches
 Status display by LED
 Safe valve position (open or closed) configurable by switch
 Second 24V= supply input (backup terminal 51) with switching function: valve is moved to safe
valve position irrespective of the manipulated variable (SVD001 and SVD101)
 Optionally with integrated emergency closing module with separate energy supply; in the case
of power supply failure the valve is moved to the safe valve position (SVD101)
SVD001_SVD101_V2.4.0_PI_2022-04_EN
Control module for valves with bipolar stepper motor drive
Subject to technical changes
SVD001/SVD101
Page 1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SVD001 and is the answer not in the manual?

Questions and answers

Summary of Contents for WURM SVD001

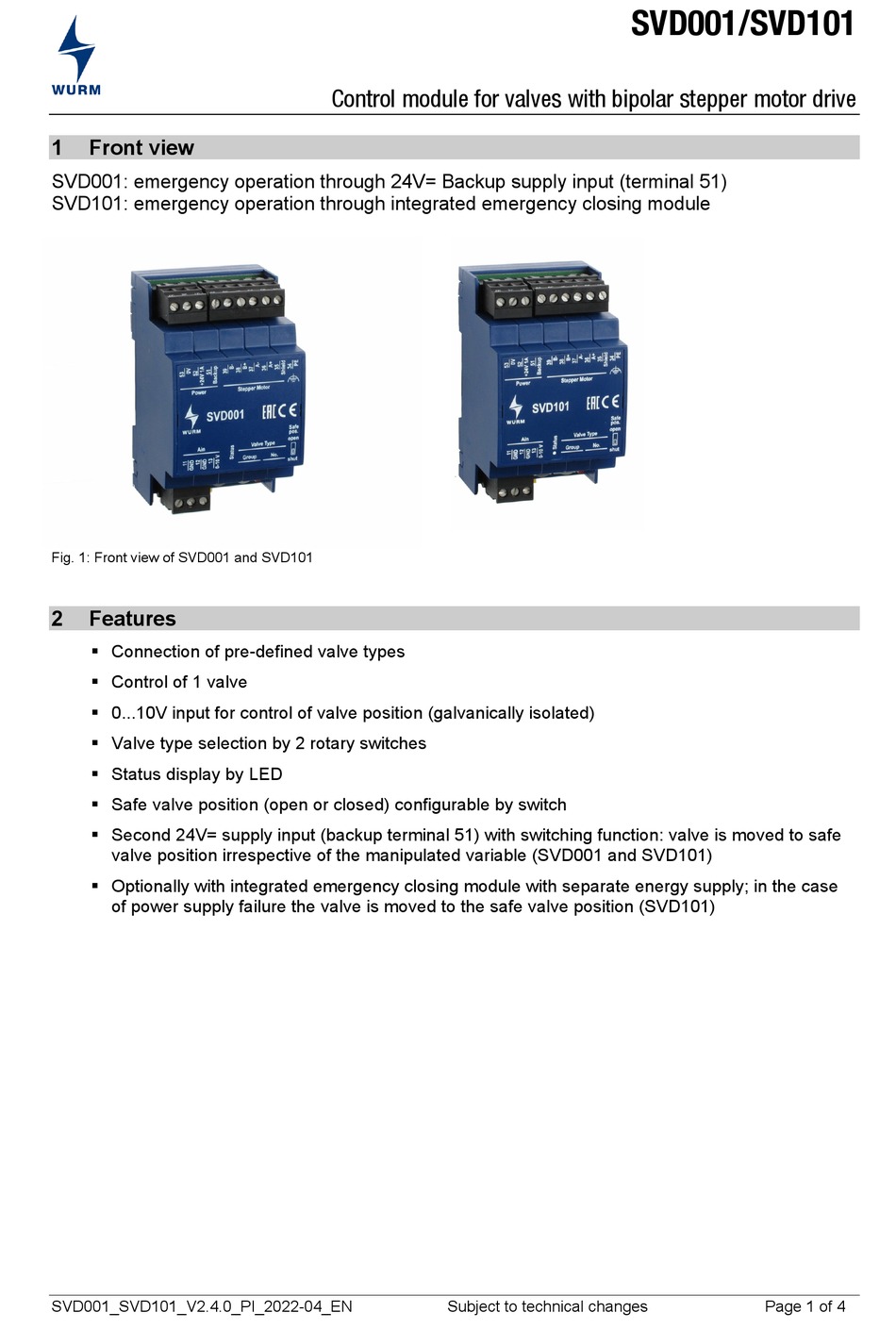

  • Page 1 SVD001/SVD101 Control module for valves with bipolar stepper motor drive Front view SVD001: emergency operation through 24V= Backup supply input (terminal 51) SVD101: emergency operation through integrated emergency closing module Fig. 1: Front view of SVD001 and SVD101 Features  Connection of pre-defined valve types ...
  • Page 2 Systeme. Keep these instructions ready to hand for quick reference and pass them on with the device if the product is sold. Wurm GmbH & Co. KG Elektronische Systeme accepts no liability in case of improper use or use for other than the intended purpose.
  • Page 3 Any versions not listed are special solutions for individual projects and are not described in detail in this document. This document automatically ceases to be valid if a new technical description is issued. Manufacturer: Wurm GmbH & Co. KG Elektronische Systeme, Morsbachtalstraße 30, D-42857 Remscheid For further information, see our website at www.wurm.de...
  • Page 4 2. Then press the module gently downward until it engages with the fastening safety catch on the top-hat rail. Fig. 4: Top-hat rail installations SVD001/SVD101 NOTICE When installing the device in the switch cabinet, please bear in mind the different ...
