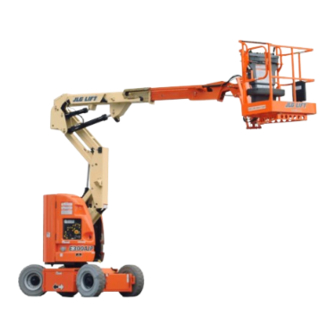

Oshkosh Corporation JLG E300AJ Service And Maintenance Manual
  1. Manuals
  2. Brands
  3. Oshkosh Corporation Manuals
  4. Boom Lifts
  5. JLG E300AJ
  6. Service and maintenance manual

Oshkosh Corporation JLG E300AJ Service And Maintenance Manual

Hide thumbs Also See for JLG E300AJ:
Table of Contents

Advertisement

Quick Links

Download this manual
Service and Maintenance Manual
Model
E300AJ
E300AJP
S/N 0300138358
to Present
P/N - 3121253
October 24, 2013
