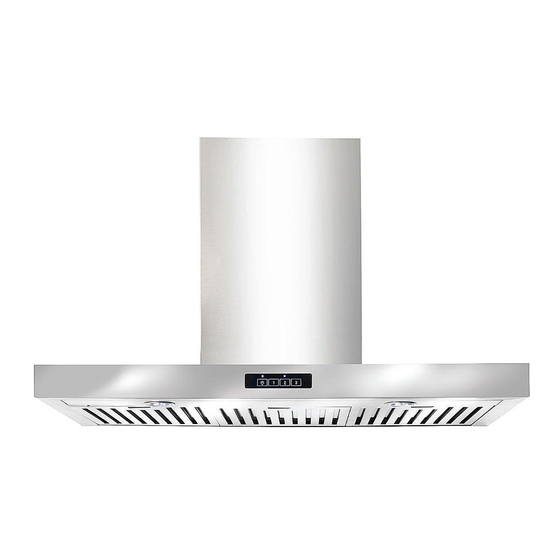

- Page 1 Range Hoods General Manual For Models: IVN900X, IVN900N, IVCC900X, IVCG900, IVSG900 IVG901X...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION *Read the complete manual carefully before installation** Intended for Domestic Kitchen Use Only Warnings: TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR PERSONAL INJURY, PLEASE OBSERVE THE FOL-LOWING: Installation and electrical work must be done by a qualified person in accordance with all ap-plicable codes and standards If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person to avoid a hazard. - Page 3 CAUTION 1. To reduce the risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls or ceiling or into attics, crawl spaces or garages. 2. Take care when using cleaning agents or detergents. 3.
-
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS Before You Start... 1. Read this manual carefully and completely. 2. The range hoods conform to related appliances standards. Please check your local building codes for any additional requirements. 3. The appliance has been manufactured as class I, there-fore ground connection is necessary. - Page 5 Installing the Ductwork 1. Plan where the ductwork will run between the hood and the outside. The hoods exhaust vertically but can be ducted to the rear behind the chimney duct through an outside wall or vertically up through the ceiling to the roof. A short straight duct run will produce the most air flow.
- Page 6 Installation Guideline Wall Mounted Island hood step 1 Island hood step 2 Island hood step 3 Island hood step 4 Note: The above installation guideline is for reference only, please your contact local dealer for installation services.
-
Page 7: Installation Alternatives
Leveling Device When mounting hood on the wall, the level can be adjusted by turning the two screws on the motor housing. Installation Alternatives The cooker hood can be installed in the following ways: Circulating indoor air (A) Outdoor venting (B) REMEMBER! The distance between the top of the hob and the lowest part of the cooker hood must be at least 65 cm. - Page 8 USE AND CARE INSTRUCTIONS Operations For optimum performance in removing cooking odors, it is recommended that you turn on your range hood prior to cooking and you leave it operating for 15 min-utes after cooking. Clean the surfaces of the range hood regularly using a non-abrasive detergent. The anti-grease filters capture the grease particles sus-pended in the air.
-
Page 9: Description Of Controls
Touch short time-blue indicator flash-default set in 25% lux, -by slide control can adjust to , 25%, 50%, 75% & 100% available. Timer (Delay-off Function) Touch short time-blue indicator flash-by slide control can adjust to, 5, 10, 15 , 20 min delay off function available. B. Touch Control ( For models: IVN900X, IVN900N, IVCC900X ):... - Page 10 C. Push button control ( For models: IVCG900, IVSG900, IVG901X ): D. Electronic switch control 1). Push "Light" button, the lights will be on (Indicating light in "Light" button is on). 2). Push "1" button, the motor will run at low speed (Indicating light in "1" button is on). 3).
-
Page 11: Care And Cleaning
CARE AND CLEANING General Replacing the charcoal filter (standard hood) Regular maintenance is required to ensure that Replace the charcoal filter (standard the cooker hood functions properly. This is espe-cially true of the grease and charcoal filters. hood) as follows: Clean the fan and other surfaces of the cooker Remove the grease filter. - Page 12 Emptying and cleaning the oil collector (For those models fitted with oil collector) The fan is fitted with a oil collector that collects oil from the fan blades and fan housing. 1. Remove the grease filter and the charcoal filter (if fitted). 2.
- Page 13 2. Remove the blown halogen bulb (if the fan has 4 bulbs = 10W, 2 bulbs = 20W). Remember that the bulb can be hot! 3. Insert the new halogen bulb. If you touch the halogen bulb with your bare hands this may reduce its service life. Always use a glove or a cloth to avoid direct contact.
-
Page 14: Troubleshooting Guide
Trouble Shooting Guide Problem Possible Reason Solution No electrical supply. Check the plug is connect-ed. Hood doesn't turn on. Check the plug is connect-ed. Power cord is damaged Contact technician service Aluminum grease filters clogged Clean the filters and replace when dry. - Page 15 Post: Locked Bag 3000, Annandale, N.S.W 2038 deterioration of parts and accessories and glass P: 1300 MY ILVE (694 583) breakage); (b) use for purpose for which the ILVE product was not WARRANTY REGISTRATION sold or designed; Your ongoing satisfaction with your ILVE product is (c) use or installation which is not in accordance with any specified instructions for use or installation;...
- Page 16 Last Name: First Name: Address: State: Postcode: Email: Home Phone: Mobile: Purchase Date: (Please attach proof of purchase to validate warranty) SERIAL NUMBER MODEL NUMBER (if you cannot locate the serial number please call ILVE on 1300 85 64 11)
