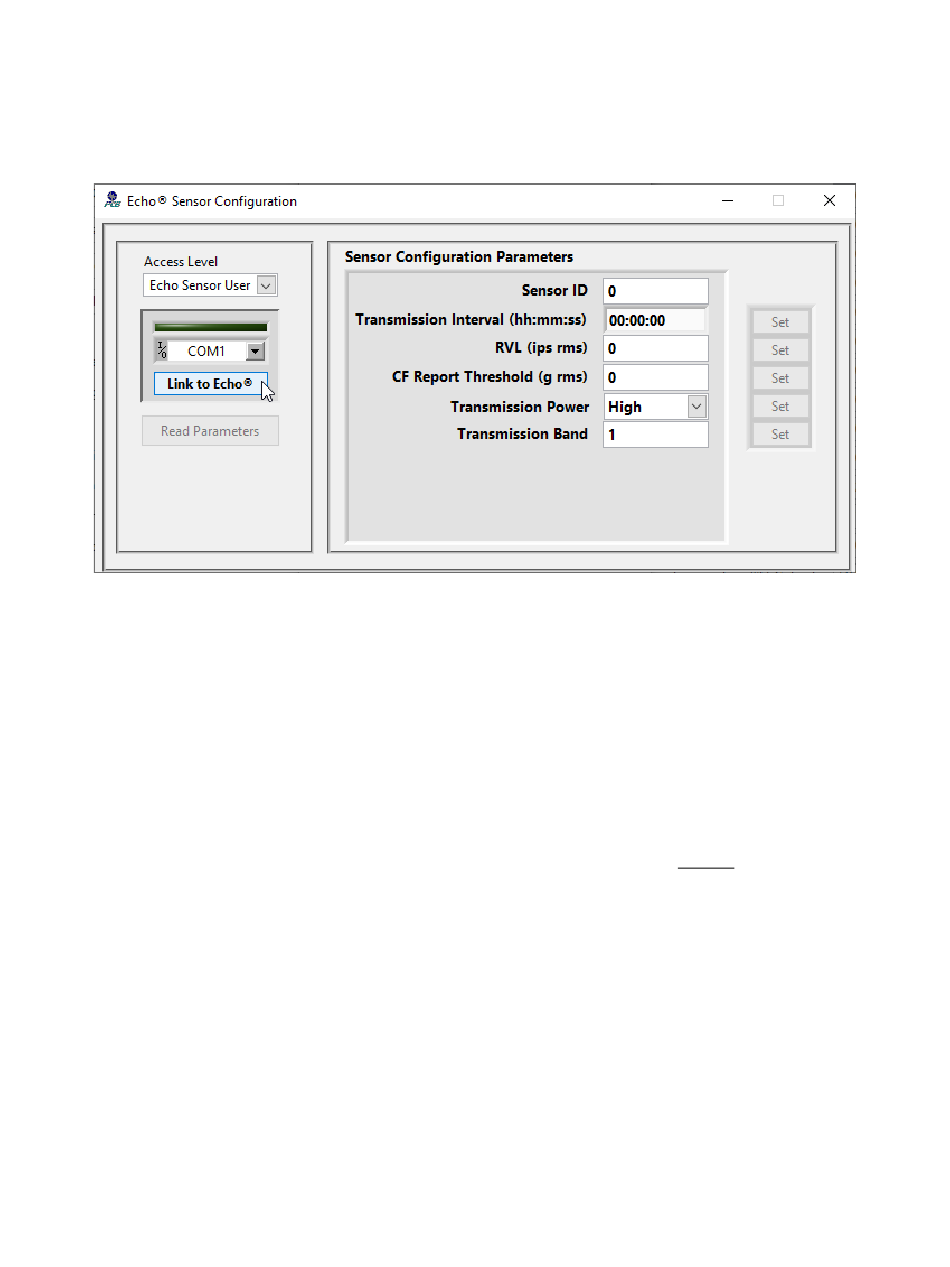

The following configuration screen will appear.
Select the appropriate COM port and click on Link to Echo
Note: The Access Level is factory set and is not user selectable.
The green bar above the COM port selection should illuminate indicating the connection
has been made. The fields to the right of the window will populate with the current
programmed parameters.

Factory Defaults

The factory defaults are defined below unless otherwise specified. See the explanation of
the parameters below.
• Sensor ID is a unique factory set number for each sensor and cannot be changed.
• Transmission Interval = 8 hours
• RVL = 0 (off)
• CF Report Threshold = 0.02
• Transmission Power = High
• Transmission Band = 1
Explanation of Echo® Wireless Sensor Parameters
Parameters can be changed by using the up and down arrows or by typing the values in
the appropriate box. Click on the Set button by the parameter to actually program the
sensor.
• Sensor ID: The Sensor ID is a unique ID programmed into and etched onto each
sensor at the factory. This number cannot be changed.
® .
