Model TO670A01
Echo® Wireless Vibration Sensor, 916 MHz, with temperature out
Installation and Operating Manual
For assistance with the operation of this product,
contact the PCB Piezotronics, Inc.
Toll-free: 800-959-4464
24-hour SensorLine: 716-684-0001
Fax: 716-684-3823
E-mail: imi@pcb.com
Web: www.imi-sensors.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMI SENSORS Echo TO670A01 and is the answer not in the manual?

Questions and answers

Related Manuals for PCB Piezotronics IMI SENSORS Echo TO670A01

Summary of Contents for PCB Piezotronics IMI SENSORS Echo TO670A01

  • Page 1 Model TO670A01 Echo® Wireless Vibration Sensor, 916 MHz, with temperature out Installation and Operating Manual For assistance with the operation of this product, contact the PCB Piezotronics, Inc. Toll-free: 800-959-4464 24-hour SensorLine: 716-684-0001 Fax: 716-684-3823 E-mail: imi@pcb.com Web: www.imi-sensors.com...
  • Page 2  Assistance is needed to safely operate equipment  PCB Piezotronics is an ISO-9001 certified company whose Damage is visible or suspected  calibration services are accredited by A2LA to ISO/IEC Equipment fails or malfunctions 17025, with full traceability to SI through N.I.S.T.
  • Page 3 CAUTION Refers to hazards that could damage the instrument. NOTE Indicates tips, recommendations and important information. The notes simplify processes and contain additional information on particular operating steps. The following symbols may be found on the equipment described in this manual: This symbol on the unit indicates that high voltage may be present.
  • Page 4 PCB工业监视和测量设备 - 中国RoHS2公布表 PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table 有害物质 镉 汞 铅 (Pb) 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 部件名称 (Hg) (Cd) 住房 PCB板 电气连接器 压电晶体 环氧 铁氟龙 电子 厚膜基板 电线 电缆 塑料 焊接...
  • Page 5 Component Name Hazardous Substances Lead (Pb) Mercury (Hg) Cadmium (Cd) Chromium VI Polybrominated Polybrominated Compounds Biphenyls (PBB) Diphenyl Ethers (Cr(VI)) (PBDE) Housing PCB Board Electrical Connectors Piezoelectric Crystals Epoxy Teflon Electronics Thick Film Substrate Wires Cables Plastic Solder Copper Alloy/Brass This table is prepared in accordance with the provisions of SJ/T 11364.
  • Page 6 Echo ® Wireless Vibration Sensor User’s Manual 41967 Rev F ECO#: 53588...

  • Page 7: Table Of Contents

    Table of Contents FCC NOTICE ........................3 INDUSTRY CANADA (IC) NOTICE ................3 ANATEL NOTICE (Applies to Model 670A01 only) ........... 3 HAZARDOUS AREA USE ................... 4 Introduction ......................... 5 Proper Handling ......................5 Cap Material and Chemical Compatibility ..............6 Magnet Switch and LED Status Indicator ..............

  • Page 8: Fcc Notice

    FCC NOTICE FCC ID: ZOC-IMI670A01 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 9: Hazardous Area Use

    HAZARDOUS AREA USE Warning- Explosion Hazard- Do Not Disconnect or connect while circuit is live unless area is known to be non-hazardous. Batteries must not be changed unless area is known to be Non-Hazardous. Do not open when an explosive atmosphere may be present. Substitution of components may impair suitability for Class I, Div 2.

  • Page 10: Introduction

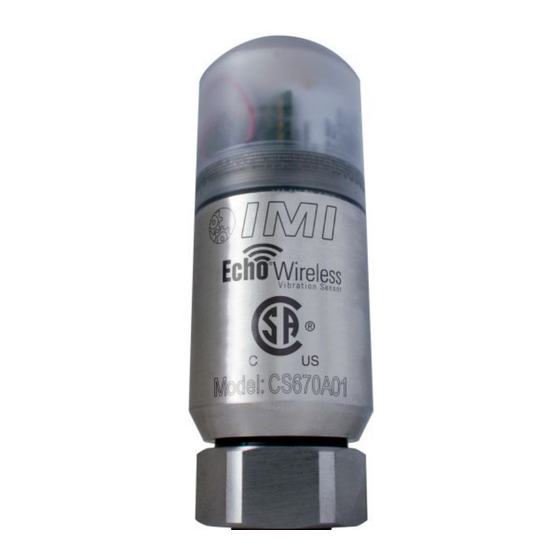

    Introduction ® The Echo Wireless Vibration Sensor, Model CS670A01, is a standalone, battery powered, wireless, industrial vibration sensor. Its primary function is to monitor the vibration of machinery in condition monitoring and predictive maintenance applications. The sensor’s measurements are optimized to be sensitive to most common machinery faults such as unbalance, misalignment, looseness, bearing faults and gear faults.

  • Page 11: Cap Material And Chemical Compatibility

    Cap Material and Chemical Compatibility The sensor cap is made from a translucent polycarbonate material. This material was chosen because it is tough, allows the transmitted RF signal to radiate out of the sensor, permits visual feedback provided by the imbedded blue status LED, and reduces the passage of ultraviolet (UV) rays.

  • Page 12: Magnet Switch And Led Status Indicator

    Magnet Switch and LED Status Indicator ® The Echo Wireless Vibration Sensor has a magnetic switch located inside the sensor that is used to activate and deactivate the sensor. Hold a strong magnet next to the sensor housing at the location indicated on the housing, see figure below, to operate the switch. The blue LED light should begin blinking quickly within about 4 seconds.

  • Page 13: Programming The Echo ® Wireless Vibration Sensor

    Programming the Echo Wireless Vibration Sensor ® Programming ® The Echo Wireless Vibration Sensor can be programmed with a computer running the Echo ® Monitoring Software through a serial port. While this is a serial port in the sensor, a micro USB connector is used in order to fit into the small space. A special (optional) ®...

  • Page 14: Connect To The Sensor With The Echo® Monitoring Software

    Connect to the Sensor with the Echo® Monitoring Software ® Launch the PCB Echo Configuration Utility Software. You should see a screen similar to the one below. Select Echo Sensor as the device and click the Configure button. ® Alternatively, you can use the PCB Echo Presentation Software to program the device.

  • Page 16: Factory Defaults

    The following configuration screen will appear. Select the appropriate COM port and click on Link to Echo ® Note: The Access Level is factory set and is not user selectable. The green bar above the COM port selection should illuminate indicating the connection has been made.
  • Page 17 • Transmission Interval: The Transmission Interval is the time between transmissions of measured data. The factory default is 8 hours. That means the sensor will “wake up” and make a measurement every 8 hours (3 times per day). At the default 8-hour transmission interval, the primary lithium-thionyl chloride (Li-SOCl ) batteries are expected to last in excess of 5 years.

  • Page 18: Saving Changes To The Echo ® Sensor

    Saving Changes to the Echo ® Sensor ® Click the Set button next to each field to be updated to program the value in the Echo Sensor. To verify the programming when all changes have been made, click the Read Parameters button.

  • Page 20: Battery Pack

    Battery Pack WARNING • Do NOT attempt to recharge batteries • Do NOT heat batteries above 212 °F (100 °C) • Do NOT attempt to replace with standard AA size batteries. They will not work. Note: The Echo ® Sensor uses two 3.6 V, A-size (not AA) primary lithium-thionyl chloride (Li-SOCl ) high energy density, bobbin cell batteries in series that are NOT rechargeable.

  • Page 21: Battery Replacement Instructions

    Battery Replacement Instructions 1. Remove cap 2. Unplug and remove battery pack 3. Remove O-ring and battery securing foam 4. Place the new O-ring on the housing 5. Place grease completely around the O-ring 6. Place grease on and around the barb on the inside of the cap...
  • Page 22 7. Place the battery securing foam on the barb in the cap 8. Plug in the new battery cap and place the battery pack in the housing 9. Screw cap onto the housing a. Make sure that the foam is centered on top of the batteries. b.

  • Page 23: Temperature Output Option Sensor To670Axx

    Temperature Output option sensor TO670Axx ® For Echo Wireless Vibration Sensor Temperature Output option sensor model(s) TO670Axx. The Temperature Measurement is sent 3 seconds after the scheduled normal vibration data transmission. If the sensor has temperature data, it will be displayed on the main screen graphs and on a separate history screen.
  • Page 25 Model Number Revision: F ECHO® WIRELESS VIBRATION SENSOR 670A01 ECN #: 53588 OPTION AL VERSION S Performance EN GLISH Optional versions have identical specifications and accessories as listed for the standard model except RMS Velocity Frequency Range(± 3 dB) 4 to 2,300 Hz 4 to 2,300 Hz where noted below.
  • Page 26 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION without the written consent of PCB Piezotronics Inc. UPDATED TITLE 50473 1.66 [42.0] 4.4 [112] .87 [22.1] 1.50 [ 38.1]...
