Battery Pack

WARNING
• Do NOT attempt to recharge batteries
• Do NOT heat batteries above 212 °F (100 °C)
• Do NOT attempt to replace with standard AA size batteries. They will not work.
Note: The Echo ® Sensor uses two 3.6 V, A-size (not AA) primary lithium-thionyl
chloride (Li-SOCl ) high energy density, bobbin cell batteries in series that are NOT
2
rechargeable. Please contact IMI for replacements.
®
The Echo Wireless Vibration Sensor accurately measures battery voltage during each
measurement cycle and transmits the battery status. The battery status is available for
display in the Echo ® Monitoring Software. See the Echo
Manual for details on monitoring the battery status. The following are recommended
actions based on battery status.
Note: The battery decline is not linear; it will be at a 3 level longer than a 2 level and at a
0 level the shortest amount of time.
• 3 = Battery is good
• 2 = Battery good but order replacement
• 1 = Replace the battery
• 0 = Battery bad, stop taking measurements with it until replaced

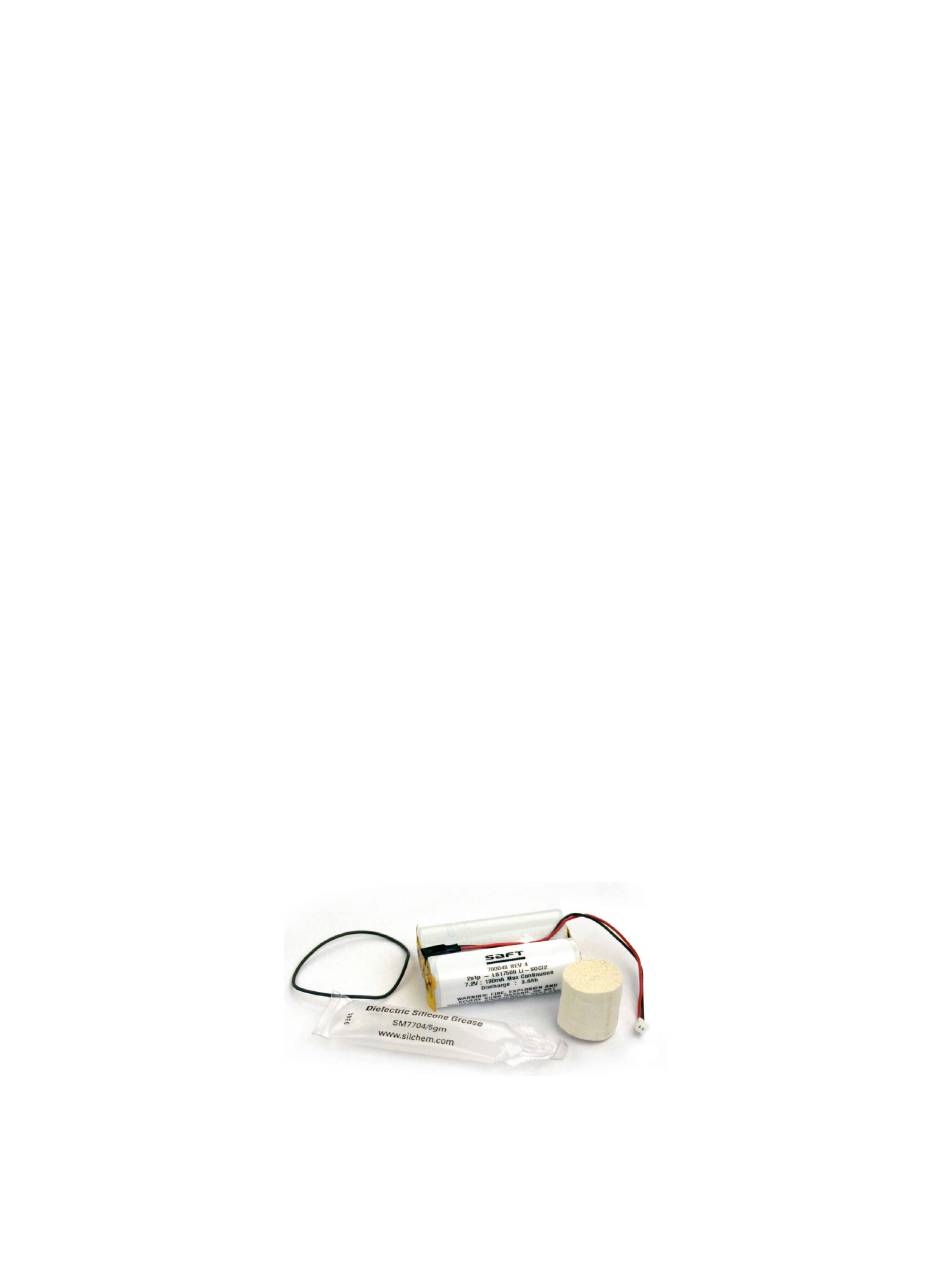

When a battery is required, it is recommended you order a Model 073A20 Echo
Replacement Battery Kit, shown below. The kit includes a battery pack, 0-ring, silicon
grease, battery securing foam, and instructions.
®
