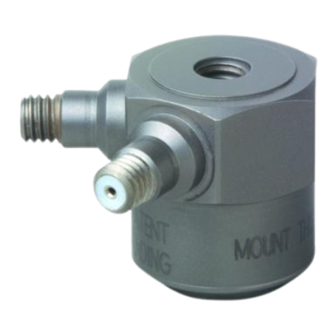

- Page 1 Model TLD288D01 Mechanical Impedance Sensor Installation and Operating Manual For assistance with the operation of this product, contact PCB Piezotronics, Inc. Toll-free: 800-828-8840 24-hour SensorLine: 716-684-0001 Fax: 716-684-0987 E-mail: info@pcb.com Web: www.pcb.com...
-
Page 2: Repair And Maintenance
Assistance is needed to safely operate equipment PCB Piezotronics is an ISO-9001 certified company whose Damage is visible or suspected calibration services are accredited by A2LA to ISO/IEC Equipment fails or malfunctions 17025, with full traceability to SI through N.I.S.T. - Page 3 CAUTION Refers to hazards that could damage the instrument. NOTE Indicates tips, recommendations and important information. The notes simplify processes and contain additional information on particular operating steps. The following symbols may be found on the equipment described in this manual: This symbol on the unit indicates that high voltage may be present.
- Page 4 PCB工业监视和测量设备 - 中国RoHS2公布表 PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table 有害物质 镉 汞 铅 (Pb) 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 部件名称 (Hg) (Cd) 住房 PCB板 电气连接器 压电晶体 环氧 铁氟龙 电子 厚膜基板 电线 电缆 塑料 焊接...
- Page 5 Component Name Hazardous Substances Lead (Pb) Mercury (Hg) Cadmium (Cd) Chromium VI Polybrominated Polybrominated Compounds Biphenyls (PBB) Diphenyl Ethers (Cr(VI)) (PBDE) Housing PCB Board Electrical Connectors Piezoelectric Crystals Epoxy Teflon Electronics Thick Film Substrate Wires Cables Plastic Solder Copper Alloy/Brass This table is prepared in accordance with the provisions of SJ/T 11364.
-
Page 6: Supplied Accessories
Table of Contents Model 288D01 Table of Contents/Appendix 1.0 Introduction 2.0 Description 3.0 Installation 4.0 Operation 5.0 Maintenance and Repair Appendix ® General Operating Guide for use with Piezoelectric ICP Accelerometers (Installation, Mounting, Cabling) Specification Sheet Installation Drawing General Signal Conditioning Guide (Voltage/Charge Amplifiers, Transducer Powering, Cable Driving, Low-Frequency Response) Supplement to Mounting Accelerometers Standard Cables... -
Page 7: Operation
® IMPEDANCE HEAD (DRIVING POINT SENSOR) OPERATION MANUAL Introduction The clearly labeled end of the force sensor should be attached to the test object. Usually, the driving point sensor is Mechanical structures characteristically transfer motion and connected to the test structure through an adhesive mounting force;... - Page 8 Model Number Revision: J MECHANICAL IMPEDANCE SENSOR ECN #: 47357 288D01 Performance ENGLISH OPTIONAL VERSIONS Sensitivity(± 10 %)(Acceleration) 100 mV/g 10.2 mV/(m/s²) Optional versions have identical specifications and accessories as listed for the standard model except where noted below. More than one option may be used. Sensitivity(±...
