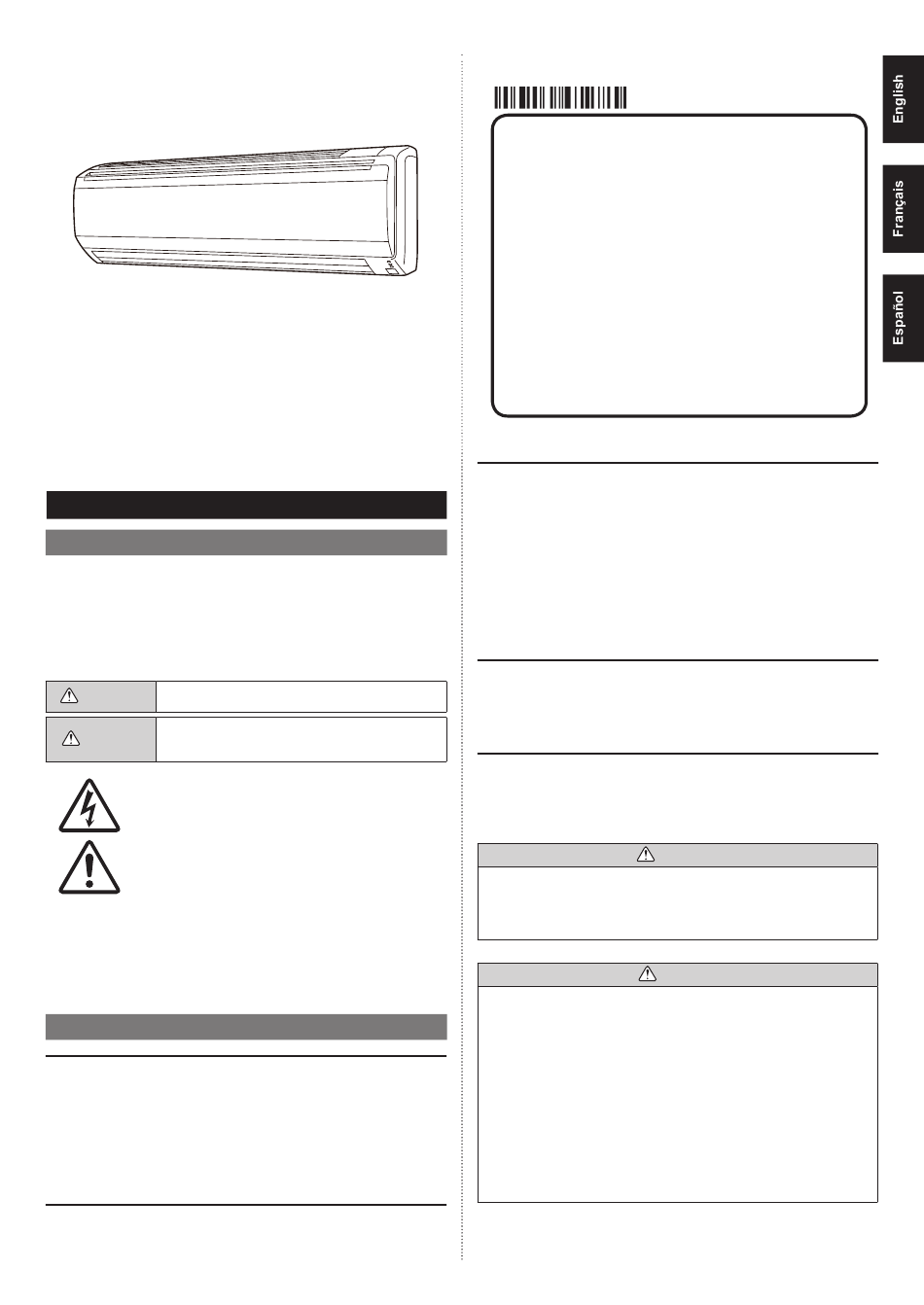

AIR CONDITIONER
INDOOR UNIT (Wall Mounted Type)
For authorized service personnel only.
• Installation must be performed in accordance with the requirement of NEC and CEC by
authorized personnel only.
• All products are manufactured to metric units and tolerances. United States customary
units are provided for reference only. In cases where exact dimensions and tolerances
are required, always refer to metric units.
1. SAFETY PRECAUTIONS
1.1. IMPORTANT! Please read before starting
This air conditioning system meets strict safety and operating standards.
As the installer or service person, it is an important part of your job to install or service the
system so it operates safely and effi ciently.
For safe installation and trouble-free operation, you must:
• Carefully read this instruction booklet before beginning.
• Follow each installation or repair step exactly as shown.
• Observe all local, state, and national electrical codes.
• Pay close attention to all warning and caution notices given in this manual.
This symbol refers to a hazard or unsafe practice which can
WARNING
result in severe personal injury or death.
This symbol refers to a hazard or unsafe practice which can
result in personal injury and the potential for product or prop-
CAUTION
erty damage.
• Hazard alerting symbols
Electrical
Safety/alert
If Necessary, Get Help
These instructions are all you need for most installation sites and maintenance conditions.
If you require help for a special problem, contact our sales/service outlet or your certifi ed
dealer for additional instructions.
In Case of Improper Installation
The manufacturer shall in no way be responsible for improper installation or maintenance
service, including failure to follow the instructions in this document.
1.2. Special precautions
When Wiring
ELECTRICAL SHOCK CAN CAUSE SEVERE PERSONAL INJURY OR DEATH. ONLY A
QUALIFIED, EXPERIENCED ELECTRICIAN SHOULD ATTEMPT TO WIRE THIS SYS-
TEM.
• Do not supply power to the unit until all wiring and tubing are completed or reconnected
and checked.
• Highly dangerous electrical voltages are used in this system. Carefully refer to the wir-
ing diagram and these instructions when wiring. Improper connections and inadequate
earthing (grounding) can cause accidental injury or death.
• Earth (Ground) the unit following local electrical codes.
• Connect all wiring tightly. Loose wiring may cause overheating at connection points and
a possible fi re hazard.
When Transporting
Be careful when picking up and moving the indoor and outdoor units. Get a partner to
help, and bend your knees when lifting to reduce strain on your back. Sharp edges or thin
aluminum fi ns on the air conditioner can cut your fi ngers.
INSTALLATION MANUAL
Contents
1.
SAFETY PRECAUTIONS .................................................................. 1
2.
ABOUT THIS PRODUCT................................................................... 2
3.
GENERAL SPECIFICATIONS ........................................................... 2
4.
SELECTING THE INSTALLATION LOCATION ................................. 3
5.
INSTALLATION WORK ..................................................................... 3
6.
ELECTRICAL WIRING ..........................................................................5
7.
FINISHING ........................................................................................ 6
8.
FRONT PANEL REMOVAL AND INSTALLATION ............................. 7
9.
REMOTE CONTROLLER INSTALLATION ........................................ 7
10. OPTIONAL KIT INSTALLATION ........................................................ 8
11. FUNCTION SETTING........................................................................ 9
12. TEST RUN ........................................................................................11
13. CUSTOMER GUIDANCE .................................................................11
14. ERROR CODES ...............................................................................11
When Installing...
...In a Ceiling or Wall
Make sure the ceiling/wall is strong enough to hold the unit's weight. It may be necessary
to construct a strong wood or metal frame to provide added support.
...In a Room
Properly insulate any tubing run inside a room to prevent "sweating" that can cause drip-
ping and water damage to walls and fl oors.
...In an Area with High Winds
Securely anchor the outdoor unit down with bolts and a metal frame.
Provide a suitable air baffl e.
...In a Snowy Area (for Heat Pump-type Systems)
Install the outdoor unit on a raised platform that is higher than drifting snow.
When Connecting Refrigerant Tubing
• Keep all tubing runs as short as possible.
• Use the fl are method for connecting tubing.
• Apply refrigerant lubricant to the matching surfaces of the fl are and union tubes before
connecting them, then tighten the nut with a torque wrench for a leak-free connection.
• Check carefully for leaks before opening the refrigerant valves.
When Servicing
• Turn the power OFF at the main circuit breaker panel before opening the unit to check
or repair electrical parts and wiring.
• Keep your fi ngers and clothing away from any moving parts.
• Clean up the site after you fi nish, remembering to check that no metal scraps or bits of
wiring have been left inside the unit being serviced.
• After installation, explain correct operation to the customer, using the operating manual.
• Never touch electrical components immediately after the power supply has been
turned off. Electric shock may occur. After turning off the power, always wait 5 minutes
before touching electrical components.
• If refrigerant leaks while work is being carried out, ventilate the area. If the refrigerant
comes in contact with a fl ame, it produces a toxic gas.
• Do not attempt to install the air conditioner or a part of the air conditioner by yourself.
• This unit must be installed by qualifi ed personnel with a capacity certifi cate for
handling refrigerant fl uids. Refer to regulation and laws in use on installation place.
• This unit is part of a set constituting an air conditioner. It must not be installed alone or
with a device non-authorized by the manufacturer.
• Always use a separate power supply line protected by a circuit breaker operating on
all wires with a distance between contact of 1/8 in. (3 mm) for this unit.
• The unit must be correctly earthed (grounded) and the supply line must be equipped
with a differential breaker in order to protect the persons.
• The units are not explosion proof and therefore should not be installed in explosive
atmosphere.
• When moving, consult authorized service personnel for disconnection and installation
of the unit.
• Do not place any other electrical products or household belongings under indoor unit
or outdoor unit.
Dripping condensation from the unit might get them wet, and may cause damage or
malfunction of your property.
PART No. 9318739244
WARNING
CAUTION
En-1
