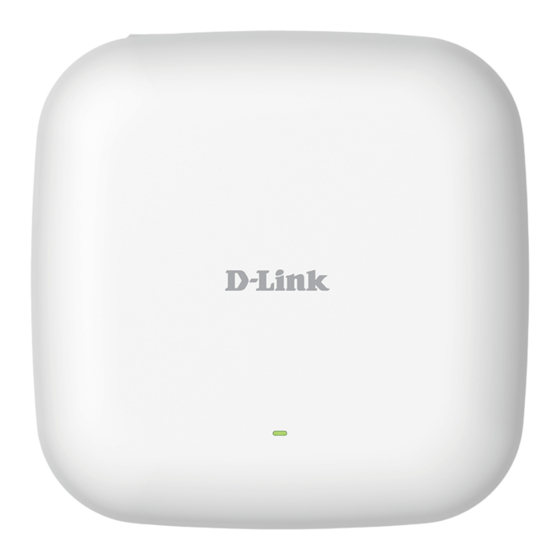

- Page 1 Quick Installation Guide Nuclias Connect AX1800 Access Point DAP-X2810 Additional documentation is also available on the D-Link website...
- Page 2 Contents English...
-
Page 3: Before You Begin
Figure 1: Front Panel LED If any of the above items are damaged or Description missing, please contact your local D-Link reseller. Green (Solid) - Device operational Red (Flashing) - Device booting Note: Using a power supply with a different... -
Page 4: Interface Connectors
Description Manual Configuration Console RJ45 console port for connection to Port a management computer. Note: D-Link recommends manually configuring LAN(PoE) Gigabit RJ-45 port for data and the device before mounting it. The management Port Power over Ethernet (PoE) power. computer, DHCP server and DAP-X2810 must be Input for the power adapter, in the same subnet. - Page 5 Connecting Wirelessly Connect the management computer to the default SSID of the DAP-X2810, “dlink”. Manage the access point from a computer. Enter dapx2810.local in the address field of your browser. Log in to the administration user interface. The default login information is Username: admin Password: admin Figure 4: Mounting the Device...
- Page 6 FCC: Clip the two ceiling brackets onto a ceiling crossbar. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 23.9 cm between the radiator &...
-
Page 7: Federal Communication Commission Interference Statement
Appendix - Statements ErP Power Usage This device is an Energy Related Product (ErP) that automatically switches to a power-saving Network Standby mode within 1 minute of no packets being transmitted. It can also be turned off through a power switch to save energy when it is not needed. Network Standby: 4.93 watts Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant... - Page 8 RF Frequency Requirements This device is for indoor use only when using all channels in the 5.15 to 5.25 GHz frequency range. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device.
-
Page 9: Technical Support
Install and use the equipment according to the instruction manual. 電波法により5GHz帯は屋内使用に限ります。 Product and Warranty Information To find out more about D-Link Nuclias product or marketing information, please visit the website http://www.dlink.com or https://www.nuclias.com. The D-Link Limited Lifetime Warranty information is available at http://www.dlink.com/warranty VCCI-B dlink.com/support... - Page 10 Notes...
- Page 11 Notes...
- Page 12 Ver. 1.00(WW)_130x183 2021/08/16...
