Summary of Contents for Genie WAHDN241A

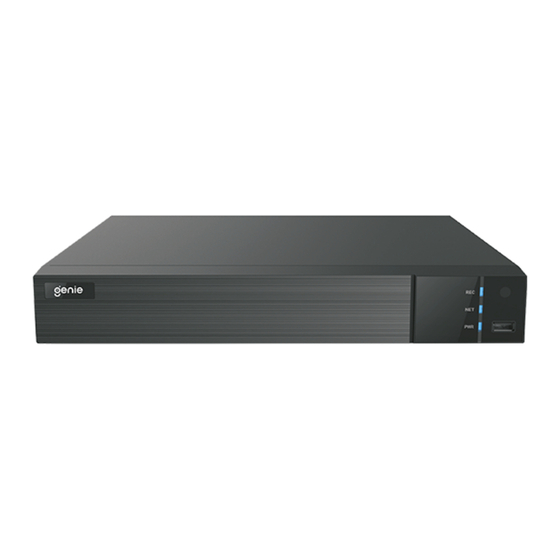

- Page 1 4 Channel 5-in-1 High Definition 1080p DVR with 1HDD Bay and Alarms WAHDN241A Quick Start Guide Please read these instructions carefully before operating the unit and keep for further reference.
- Page 2 Intro Section Please read this instruction carefully before operating the product and keep it for further reference. All examples and pictures used here are for reference only. The contents of this manual are subject to change without notice. CAUTION: • Please check the device and the accessories after getting the device.
-
Page 3: Table Of Contents
Contents 1.0 Introduction ......................4 1.1 Product Features ...................4 1.2 Product Dimensions ..................4 1.3 Specification....................5 2.0 HDD Installation ....................6 3.0 Rear Panel Instruction ..................7 4.0 Start Up and Shut Down ..................8 5.0 Login ........................9 6.0 Configurations and Connections ................10 6.1 Ananlogue Camera Connection ..............10 6.2 Network Configuration &... -
Page 4: Introduction
1.0 Introduction The Genie WAHDN241A is a 5-in-1 DVR compatible with AHD, TVI, CVI, CVBS and IP cameras available in 4 channel formats. It has the ability to connect to analogue and IP cameras simultaneously and encode the video streams using the H.265 high profile compression format which gives longer recording times compared to H.264 encoding. -
Page 5: Specification
Quick Start Guide 4 Channel 5-in-1 High Definition 1080p DVR with 1HDD Bay and Alarms 1.3 Specification Model WAHD241A System Embedded Linux BNC x4 Analogue Video Input BNC interface (1.0Vp-p, 75Ω) 2CH (Up to 6CH) IP Video Input Up to 5MP @ 25fps/4MP @ 30fps Video Total Input HDMI x1 : 1920x1080 / 1280x1024 / 1024x768... -
Page 6: Hdd Installation
2.0 HDD Installation This product supports 1 SATA hard drive. Please make sure that the device is powered off before the installation. The pictures of the installation are for reference only. Loosen the screws to open the cover. 2. Screw the screws into the HDD but do not tighten them. 3. -
Page 7: Rear Panel Instruction
3.0 Rear Panel Instruction The interfaces of the rear panel are for reference only. Rear panel for WAHD241A e SATA CVBS ALARM OUT ALARM IN COM1 COM2 RS485 DC12V AUDIO IN VIDEO IN AUDIO OUT Rear Panel for WAHD281A Internet Name Description ALARM OUT... -
Page 8: Start Up And Shut Down
4.0 Start Up and Shut Down Startup Connect the monitor and the power. 2. The device will boot and the power indicator will display blue. 3. A wizard window will pop up. Shutdown Click “Start” and then select “Shutdown” icon. This will bring up a shutdown window. The device will shut down by clicking “OK”... -
Page 9: Login
5.0 Login The default username is admin and the default password is 123456. You must configure the wizard if you start the DVR for the first time and you may change the password when you configure the wizard for the first time. You can skip the settings wizard next time. Click “Start”... -
Page 10: Configurations And Connections
6.0 Configurations and Connections 6.1 Ananlogue Camera Connection First connect the camera to the DVR. Then go to Start → Settings → Camera→ Manage Camera → Camera Signal to checkmark the video mode. Theactual signals input shall correspond to the video mode. Please refer to the User Manual for details. - Page 11 Quick Start Guide 4 Channel 5-in-1 High Definition 1080p DVR with 1HDD Bay and Alarms 5. Checkmark the device you want to add and then click “Add” button.The DVR will automatically refresh the cameras and return to “Edit Camera” interface. “Online” status means connecting the device successfully and you will see the live image.
-
Page 12: Upnp
7.0 UPnP You can use the UPnP function to enable the fast connection of the device to WAN via a router without port mapping. Go to Start → Settings → Network → UPnP, and enable UPnP and then click “Apply” button to save. -
Page 13: Nat
8.0 NAT NAT Settings The DVR shall be powered on and connected to the network. 2. Go to Start → Settings → Network → TCP/IP. You can obtain the IP address, subnet mask and gateway automatically. You can also manually enter them according to the actual network situation. -
Page 14: Manual Recording And Playback
9.0 Manual Recording and Playback 9.1 Manual Recording Before recording, please install and format a HDD. In the live interface you can see the menu toolbar. Click button to start recording. Click it again to stop recording. You can also click to check the status of the recording. - Page 15 Sales +44(0)1707 330541 Enquiries sales@genieproducts.co.uk Website www.genieproducts.co.uk...
