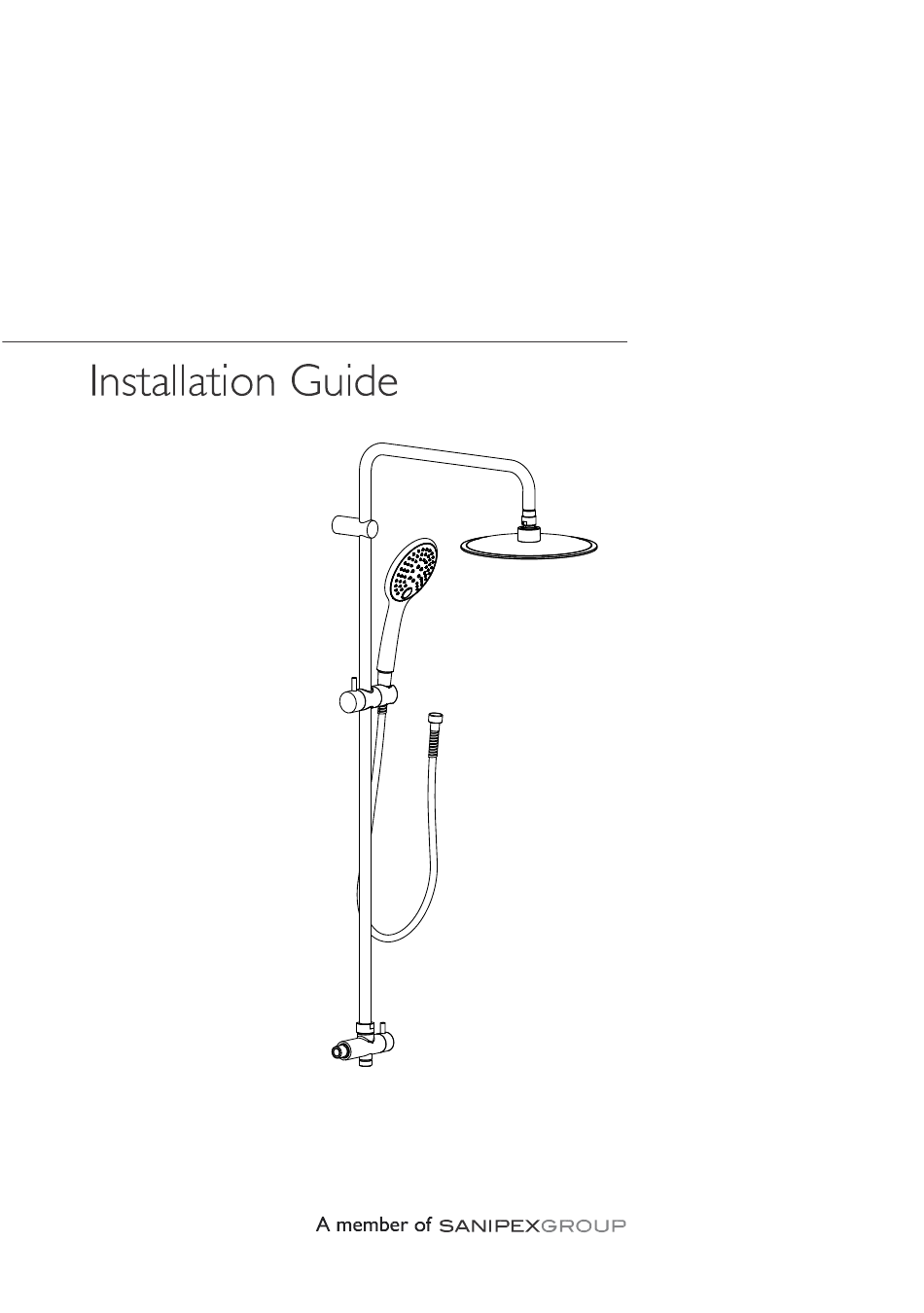

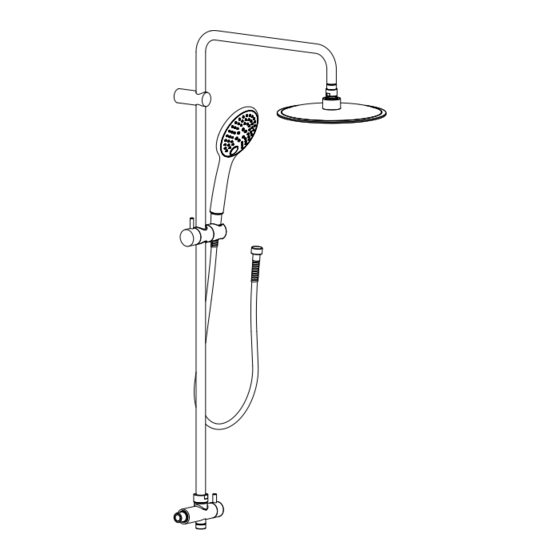

- Page 1 AQUAECO WASHROOM AND PLUMBING SOLUTIONS AQE-ECO-512R-XX DIPLOMAT EXPOSED ROUND SHOWER COLUMN SET www.sanipexgroup.com...
- Page 2 IMPORTANT PLEASE READ All products manufactured and supplied by AQUAECO are fit for purpose as long as they are Installed, used correctly, cleaned and receive regular maintenance in accordance with these instructions ... Remove all packaging and check the product for damage or missing parts before commencing with the installation.
- Page 3 Contents Contents PAGE Accessories List.....................1 Product Installation Instructions..............2-4 Usage method.....................4 Clean and care....................4 Accessories List When you unpack the product, please first count the spare parts carefully according to the below table and the figure. If there is a shortage, please contact the local distributor or our company immediately.
- Page 4 Note: when checking accessories: M6 screw (13) and fixed ring (11) are installed in its mounting hole; gasket (16) is assembled on diverter (13). Before installation, it should be removed and then operated according to the following instructions. HELPFUL TOOLS BAND SAFETY ADJUSTABLE...
- Page 5 Install the fixed seat: 1. Four holes which 35mm depth were drilled on the wall with a 6 mm drilling bit; 2. The expansion sleeve (06) is inserted into the above holes, and the fixed seat (05) is locked on the wall with a self-tapping screw (02). 3.
- Page 6 5. Sleeve the diverter (16) into the fixed ring (11), against to the wall, and then lock the top wire with the H3 alley key (14). Disassemble the top wire Usage method Install the shower head, hand shower and shower hose 1.
- Page 7 After the installation, please check whether the joints are tightly connected, whether the pipe is leaking, and whether the overall installation is firm. Make sure that all parts are in good condition and then release water for trial use. Check whether the joint is leaking or not. Usage method: 1.
- Page 8 AQUAECO WASHROOM AND PLUMBING SOLUTIONS www.sanipexgroup.com INE-ECO-512R-XX-02-23...
