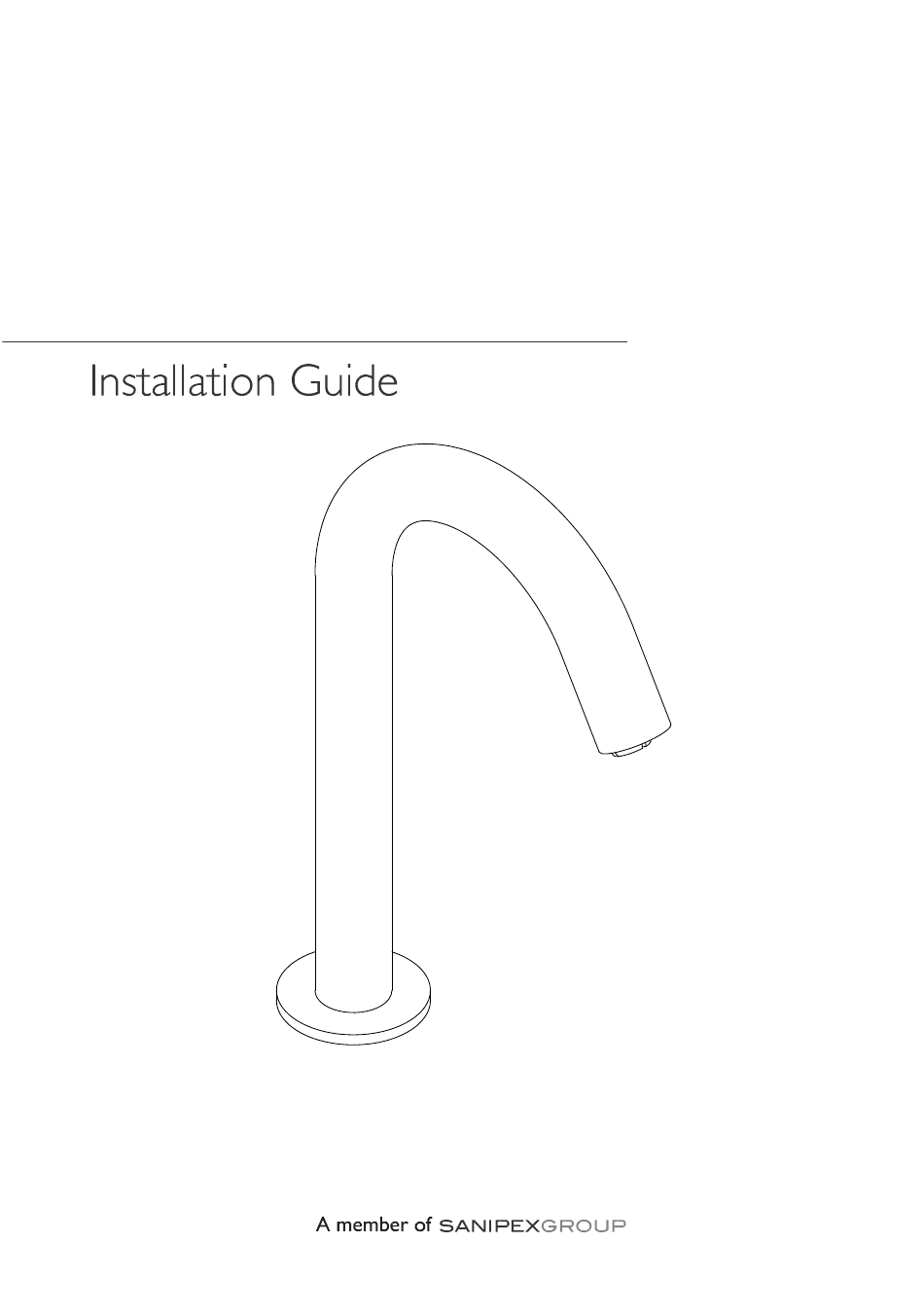

- Page 1 AQUAECO WASHROOM AND PLUMBING SOLUTIONS AQE-ECO-I302-I302T-A AQUAECO DECK MOUNTED & DECK MOUNTED TALL TOUCHLESS TAP www.sanipexgroup.com...
- Page 2 IMPORTANT PLEASE READ All products manufactured and supplied by AQUAECO are fit for purpose as long as they are Installed, used correctly, cleaned and receive regular maintenance in accordance with these instructions ... Remove all packaging and check the product for damage or missing parts before commencing with the installation.
-
Page 3: Table Of Contents
Contents Warnings ..........................1 Specifications ........................1 Before usage ........................2 Confirm the spare parts ....................2 Name of spare parts ......................3 Installation position of the faucet ................. 4 Installation of control box ....................5 Connection of spare parts ..................... 5 Installation or replacement of battery ................. -
Page 4: Before Usage
Common Tools needed Adjustable wrench Screwdriver(Phillips) Before usage 1. Please read this instruction manual carefully and fix the products correctly. 2. We reserve the rights to upgrade products without a notice. 3. Flush the water supply pipes thoroughly to remove debris. Faucet is designed for tap water or potable water. -
Page 5: Name Of Spare Parts
Name of spare parts Spout Washer Sensor Nozzle Hex Nut Screwed bolt Water outlet hose S.S bracket Water outlet Control box Batter y box Water inlet Power output plug Sensor plug Valve plug AC adapter AC adapter input plug Notes： For the power adapter, please refer to the type you purchased. -
Page 6: Installation Position Of The Faucet
Installation position of the dispenser Please take your purchased product as final, the outlook shown in the diagram might be different from the actual product. (Diagram) (Single-Cold type) Referenced finished height 200mm Tips: 1. Please make sure there is enough space for installation of control box of faucet. -
Page 7: Installation Of Control Box
Installation of control box Installation of control box Completed diagram S.S bracket Screw hole Screw Screw hole Hang the control box on the screw Drill 2 pcs 5mm holes on the proposed wall according to the dimension shown on the diagram ① and install the screws, then fix the control box onto the wall in accordance with diagram ②... -
Page 8: Installation Or Replacement Of Battery
Installation or replacement of batter y Install 4 AA Take out ① ② 1. Open the batter y cover of control batteries battery case box and take out the batter y case according to the diagram ①. 2. install 4 pcs AA batteries correctly and put the batter y case into the control box and fix its cover as per diagram ②. -
Page 9: Care And Cleaning
Care & Cleaning • For light cleaning Please use the soft cloth soaked with water and drying it and then to wipe off the stain affixed on spout & sensor cabinet. • For heavy- dirt cleaning Please use the cloth soaked with right amount of neutral detergent to wipe off the stain and then clean by water. -
Page 10: Periodic Maintenance
Periodic maintenance Twice annually: 1. Please check all the connected parts to see whether there is leakage or not, and fasten or change the loosen or wear-out spare parts according to the real situation. 2. Please check the faucet and control to see whether they are loosen or not and fasten they if needed. -
Page 11: Trouble Shooting
Trouble shooting Some trouble symptoms can be identified by the indicator's flashing. Refer to "Note of the Indicator Flashing" Symptoms Probable Causes Corrective Action No battery or wrongly connected Check the batteries No water flow No power supply or wrong Check the power supply and the (Indicator not connection... - Page 12 AQUAECO WASHROOM AND PLUMBING SOLUTIONS www.sanipexgroup.com INE-ECO-I302-I302T-A-03-23...
