Important Information

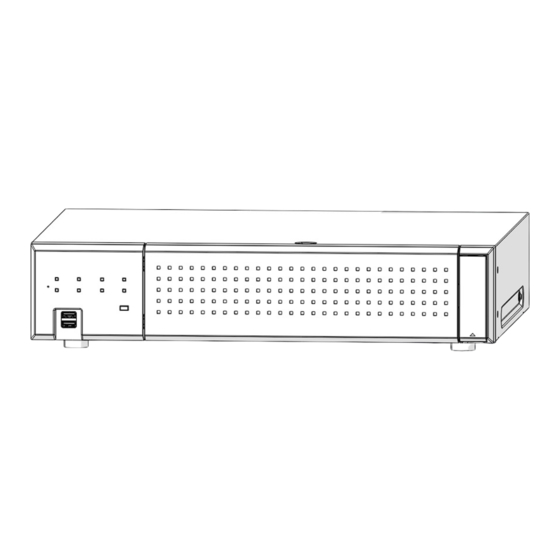

Network Disk Recorder
WJ-NX310K Series
Model No.
For professional use only
WJ-NX310K Series refer to WJ-NX310K, WJ-NX310KG and WJ-NX310KGV.
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
Advertisement
Table of Contents
Related Manuals for i-PRO WJ-NX310K Series
Summary of Contents for i-PRO WJ-NX310K Series
- Page 1 WJ-NX310K Series Model No. For professional use only WJ-NX310K Series refer to WJ-NX310K, WJ-NX310KG and WJ-NX310KGV. Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. The model number is abbreviated in some descriptions in this manual.
-
Page 2: Important Safety Information
Open the fuse cover with a screwdriver and replace the fuse and close or attach the fuse cover. For U.S.A. Supplier's Declaration of Conformity Figure A Figure B Trade Name: i-PRO Model No. : WJ-NX310K Responsible Party: i-PRO Americas Inc. 8550 Fallbrook Drive, Suite 200 Houston, Texas 77064 Support Contact: 1-800-513-5417... -
Page 3: Table Of Contents
Contents Important Safety Information ....................2 Introduction ..........................4 Preface ...................................... 4 Features ....................................4 System requirements for a PC ..............................6 Trademarks and registered trademarks ............................ 6 About HEVC (High Efficiency Video Coding) patents ....................... 6 Copyright ....................................6 Disclaimer of warranty ................................ -
Page 4: Introduction
Introduction Preface The network disk recorders WJ-NX310K Series equipped H.265 CODEC and are designed for use within a H.265 surveillance system, and record images/audio from up to 16 network cameras (hereinafter, cameras) on the hard disk drives (HDDs). Number of cameras to be used in the system can be increased to 32 (maximum) by purchasing the Additional Camera Kit (WJ-NXE32W, WJ-NXE33W). - Page 5 Introduction (continued) Protection against power failure The built-in function protects the equipment and recorded data in the event of AC power interruption such as sudden power failure. This function makes it possible to turn off the AC power without having to stop recording or perform other operations. *It does not guarantee that the equipment will not malfunction in the event of all possible power interruptions.
-
Page 6: System Requirements For A Pc
(for viewing the manuals) Important: • Refer to our support website (https://i-pro.com/global/en/surveillance/training_support/support/technical_information) for information about the latest operation verification of the supported operating systems and web browsers. • If using a PC that does not meet the above system requirements, it may cause problems such as slow imaging or the browser becomes inoperable. -
Page 7: Disclaimer Of Warranty
(continued) Disclaimer of warranty IN NO EVENT SHALL i-PRO Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW: (1) ANY LOSS OR DAMAGE, INCLUDING WITHOUT LIMITATION, DIRECT OR INDIRECT, SPECIAL, CONSEQUENTIAL OR EXEMPLARY, ARISING OUT OF OR RELATING TO THE PRODUCT;... -
Page 8: Precautions
Precautions Refer installation work to the dealer. Grounding Installation work requires technique and experiences. Failure Use this product after confirming that grounding is properly to observe this may cause fire, electric shock, injury, or installed. damage to the product. If grounding is not installed properly, it may cause ground •... - Page 9 Precautions (continued) Precautions for use Power source Hard disk drive (HDD) The input power source for this product is 100 V - 240 V AC • Hard disk drives are precision devices. Handle them with 50 Hz/ 60 Hz. care. It is possible to damage them if they are moved Do not connect to the outlet that provides the power to while their motors are still running.
- Page 10 Disclaimer of warranty on recoded data i-PRO Co., Ltd. assumes no responsibility or liability, directly or indirectly, for failure of recording or editing including loss of data due to any reason or cause which does not exclude repair or maintenance of this product regardless whether the subject is hard disk or other parts.
-
Page 11: Major Operating Controls And Their Functions
Major operating controls and their functions Front view ①② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ① Operation indicator [OPERATE] ⑦ Copy port (USB3.0) [COPY] Lights when the power is on. Connect an external storage device (external Hard disk drive, USB memory) to this port and copy images and ②... -
Page 12: Inside The Front Cover
Major operating controls and their functions (continued) Inside the front cover ① ② ③ ① HDD bracket screw These are screws to fix the HDD bracket. The screws do not detach from the bracket. ② HDD bracket Install the HDD. Refer to "Installation of the hard disk drive"... -
Page 13: Rear View
Major operating controls and their functions (continued) Rear view ① ② ③ ⑬ ⑫ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ① Security wire hole ⑧ Cable clamps fixing holes (for fixing the copy port Mount the lock device for the anti-theft security wire. cables) Fit the cable clamp (included) to fix the copy port ②... - Page 14 Major operating controls and their functions (continued) How to fix the power cord Fitting of the cable clamp (for Fix the power cord at 15 cm to 20 cm {5-7/8 to 7-7/8 inches} fixing the terminal block cables) from the connector with the included power cord clamp passed through the clamp mount.
- Page 15 Major operating controls and their functions (continued) How to use the cable clamp (for fixing Step 3 the copy port cable) Slide the cable clamp toward the connector end of the connection cable, and then hold the connector end of Fix the connection cable using the included cable clamp as the connection cable.
-
Page 16: User/Host Management
User/Host management It is necessary to register users who directly operate this product, or PCs (hosts) that access through the network such as LAN. Up to 32 users can be registered. It is possible to register the following for the user information. Item Description User name... -
Page 17: Specifications
Specifications • General Power source: 100 V - 240 V AC 50 Hz/ 60 Hz Power consumption: 95 W (100 VA) Ambient operating temperature: Main body: 0 °C - +45 °C {32 °F - 113 °F} Mouse (included): +5 °C - +40 °C {41 °F - 104 °F} Ambient operating humidity: 5 % to 90 % (non condensing) Maximum operating altitude:... - Page 18 Authorised Representative in EU: i-PRO EMEA B.V. Laarderhoogtweg 25, 1101 EB i-PRO Co., Ltd. Amsterdam, Netherlands Tokyo, Japan i-PRO EMEA B.V. UK Branch 1010 Cambourne Business Park, https://www.i-pro.com/ Cambridgeshire CB23 6DP © i-PRO Co., Ltd. 2023 L1023-0 PGQP3682ZA...
