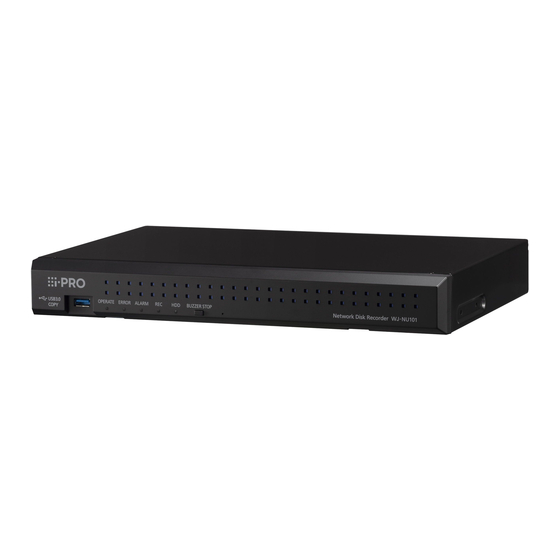

i-PRO WJ-NU101K Series Important Information Manual

Network disk recorder
Hide thumbs Also See for WJ-NU101K Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Model No.
WJ-NU101K Series refer to WJ-NU101K, WJ-NU101KG and WJ-NU101KGV.
WJ-NU201K Series refer to WJ-NU201K, WJ-NU201KG and WJ-NU201KGV.
WJ-NU300K Series refer to WJ-NU300K, WJ-NU300KG and WJ-NU300KGV.
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
Important Information
Network Disk Recorder
WJ-NU101K Series
WJ-NU201K Series
WJ-NU300K Series
For professional use only

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WJ-NU101K Series and is the answer not in the manual?

Questions and answers

Related Manuals for i-PRO WJ-NU101K Series

Summary of Contents for i-PRO WJ-NU101K Series

  • Page 1 WJ-NU201K Series WJ-NU300K Series For professional use only WJ-NU101K Series refer to WJ-NU101K, WJ-NU101KG and WJ-NU101KGV. WJ-NU201K Series refer to WJ-NU201K, WJ-NU201KG and WJ-NU201KGV. WJ-NU300K Series refer to WJ-NU300K, WJ-NU300KG and WJ-NU300KGV. Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.

  • Page 2: Safety Information

    • This product has no power switch. Be sure to install WJ-NU300K disconnect devices such as a circuit breaker to shut down the Responsible Party: i-PRO Americas Inc. main power of power supplying equipment to this product. 8550 Fallbrook Drive, Suite 200 •...
  • Page 3 Safety Information (continued) For U.K. FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5 amp and that it is approved by ASTA or BSI to BS1362.

  • Page 4: Table Of Contents

    Contents Safety Information ........................2 Introduction ..........................5 Preface ...................................... 5 Features ....................................5 System requirements for a PC ..............................7 Trademarks and registered trademarks ............................ 7 About HEVC (High Efficiency Video Coding) patents ....................... 7 Copyright ....................................7 Disclaimer of warranty ................................8 Network security ..................................

  • Page 5: Introduction

    Introduction Preface The network disk recorders WJ-NU101K Series, WJ-NU201K Series, WJ-NU300K Series (hereinafter, recorder) equipped H.265 CODEC and are designed for use within a H.265 surveillance system, and record images/audio from 4 to 16 network cameras (hereinafter, cameras) on the hard disk drives (HDDs).
  • Page 6 Introduction (continued) System Configuration Main monitor (HDMI) Sub monitor (HDMI) Network switch Camera (×4 max.) (WJ-NU101) Camera (×8 max.) (WJ-NU201, WJ-NU300) Network AC Power Adapter(included) PoE+ Network switch (locally procured) or PoE Camera Power Unit WJ-PU201*(option) * WJ-PU201 refer to WJ-PU201 (For U.S.), WJ-PU201/G (For Europe), WJ-PU201F/G (For Europe).

  • Page 7: System Requirements For A Pc

    (for viewing the Operating Instructions (PDF file)) Important: • Refer to our support website (https://i-pro.com/global/en/surveillance/training_support/support/technical_information) for information about the latest operation verification of the supported operating systems and web browsers. • If using a PC that does not meet the above system requirements, it may cause problems such as slow imaging or the browser becomes inoperable.

  • Page 8: Disclaimer Of Warranty

    (continued) Disclaimer of warranty IN NO EVENT SHALL i-PRO Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW: (1) ANY LOSS OR DAMAGE, INCLUDING WITHOUT LIMITATION, DIRECT OR INDIRECT, SPECIAL, CONSEQUENTIAL OR EXEMPLARY, ARISING OUT OF OR RELATING TO THE PRODUCT;...

  • Page 9: Precautions

    Precautions Refer installation work to the dealer. Grounding Installation work requires technique and experiences. Failure Use this product after confirming that grounding is properly to observe this may cause fire, electric shock, injury, or installed. damage to the product. If grounding is not installed properly, it may cause ground •...
  • Page 10 Precautions (continued) Precautions for use Power source Hard disk drive (HDD) The input power source for this product is 100 V - 240 V AC • Hard disk drives are precision devices. Handle them with 50 Hz/ 60 Hz. care. It is possible to damage them if they are moved Do not connect to the outlet that provides the power to while their motors are still running.
  • Page 11 Disclaimer of warranty on recoded data i-PRO Co., Ltd. assumes no responsibility or liability, directly or indirectly, for failure of recording or editing including loss of data due to any reason or cause which does not exclude repair or maintenance of this product regardless whether the subject is hard disk or other parts.

  • Page 12: Major Operating Controls And Their Functions

    Major operating controls and their functions Front view ① ② ③ ④ ⑤ ⑥ ⑦ ① Copy port (USB3.0) [COPY] ⑦ Buzzer stop button [BUZZER STOP] Connect an external storage device (external Hard disk Press this button to stop the buzzer that started drive, USB memory) to this port and copy images and sounding at an alarm/error occurrence.

  • Page 13: Rear View

    Major operating controls and their functions (continued) Rear view ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ WJ-NU101 ① Security wire hole ⑦ Network port (PC port) [PC] Mount the lock device for the anti-theft security wire. Connect the recorder with a PC via a network compatible with 10BASE-T, 100BASE-TX or 1000BASE-T.
  • Page 14 Major operating controls and their functions (continued) ⑨ DC jack [DC IN] How to prevent DC plug disconnection Fix a 10 cm ~ 15 cm {4 inches ~ 6 inches} space of the DC Connect the DC plug of the included AC power adapter. Make sure that you insert the DC plug all the way to cable from the DC plug with the included cable clamp prevent from loosening or coming off.

  • Page 15: User/Host Management

    User/Host management It is necessary to register users who directly operate this product, or PCs (hosts) that access through the network such as LAN. Up to 32 users can be registered. It is possible to register the following for the user information. Item Description User name...

  • Page 16: Specifications

    Specifications • General Power source: DC 54 V 1.67 A WJ-NU101 DC 54 V 2.78 A WJ-NU201, WJ-NU300 Power consumption: When using the included AC adapter WJ-NU101 90 W (DC54 V 1.67 A) WJ-NU201 150 W (DC54 V 2.78 A) WJ-NU300 150 W (DC54 V 2.78 A) Ambient operating temperature:...
  • Page 17 Specifications (continued) • AC power adapter (WJ-NU101, Included) Input voltage: 100 V AC to 240 V AC 50 Hz/60 Hz Output voltage: DC54 V 1.67 A Ambient operating temperature: 0 °C - +40 °C {32 °F - 104 °F} Dimentions: 65 mm(W) ×...
  • Page 18 Authorised Representative in EU: i-PRO EMEA B.V. Laarderhoogtweg 25, 1101 EB i-PRO Co., Ltd. Amsterdam, Netherlands Tokyo, Japan i-PRO EMEA B.V. UK Branch 1010 Cambourne Business Park, https://www.i-pro.com/ Cambridgeshire CB23 6DP © i-PRO Co., Ltd. 2022 L1222-0 PGQP3560ZA...
