Ryobi PHONEWORKS ES1600 Getting Started

There you can find How-To Videos, Operator's Manuals and
Download Ryobi
WARNING:
This Quick Start Guide is not a substitute for reading the operator's manual included with the
app. To reduce the risk of injury, user must read and understand operator's manual before
using this product.

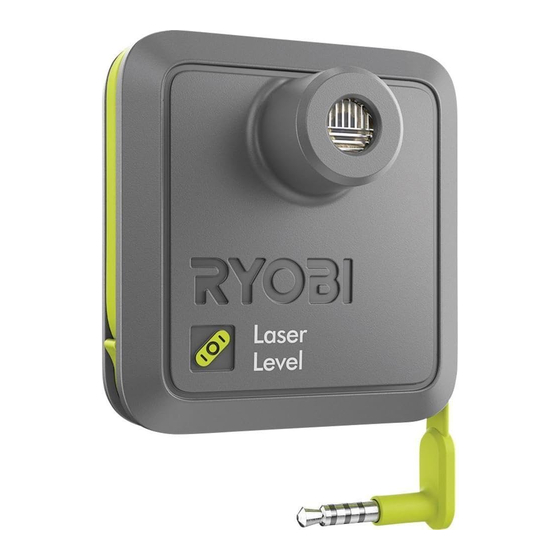

ES1600 Laser Level
ACTIVATING DEVICE
1. Select the Laser Level device icon and choose Activate Device.
2. Select your current Ryobi Nation login credentials, or if new user, Create
Account.
3. Enter the 14-digit serial number and purchase date.
GETTING STARTED
1. Line up the notches of the clip and the device. With your thumbs, firmly push in
the center of the clip until you hear a click.
2. Make sure the clip is securely attached to the device before proceeding. Attach
the clip to your phone.
3. Remove red tab in the battery compartment to activate the batteries.
4. With the App open to the main screen, plug the device into the headphone jack
on your smart phone. With device connected, be sure the volume on your phone
is turned all the way up.
5. The device will auto-recognize and open the Laser Level.
NOTE: If the device is not found, disconnect the device, restart the App, and
reconnect the Laser Level.
NOTE: In order for the app to work properly, select "Ok," when asked for ac-
cess to the microphone, camera and location. These settings can be changed
in your phone's dedicated settings.
6. To project the laser, select the Laser On
7. The full Operator's Manual is available in Settings.
Thank you for purchasing Ryobi
If you need assistance DO NOT RETURN TO THE STORE
TM
TM
Before getting started, please visit
www.ryobitools.com/phoneworks
the most current list of compatible phones.
Phone Works
™
Please contact us at 1-877-578-6736
App from the App Store or Google Play Store
™
button.
Phone Works
™
991000332
12-4-14 (REV:01)
™
