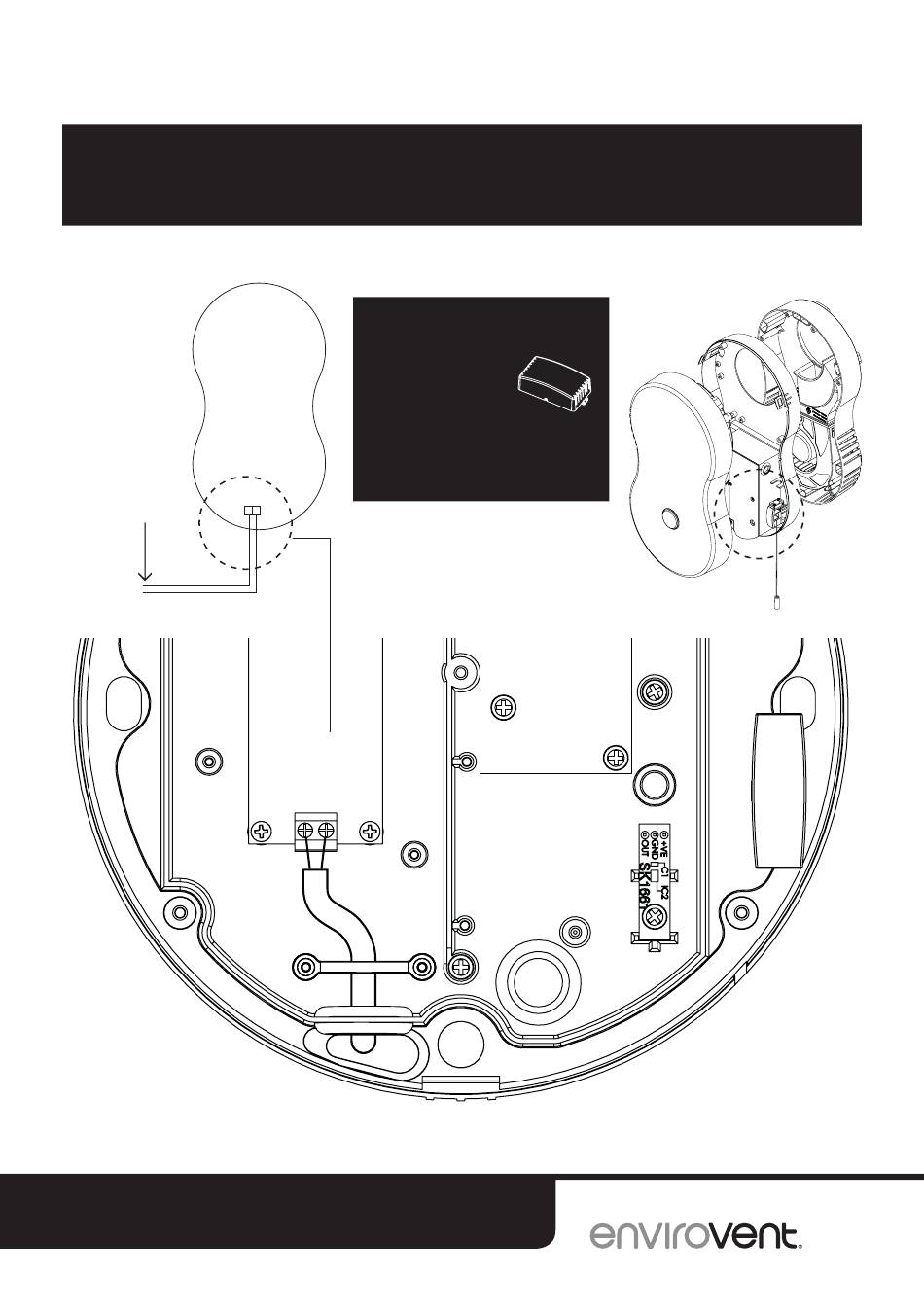

Wiring Diagrams - Mains
NOTE: This unit is supplied as a mains version (option 1).
See next page for SELV (option 2).
Connect
2 core
cable into
existing
wiring
AFTER INSTALLATION THE END USER SHOULD
KEEP THIS GUIDE FOR FUTURE REFERENCE
NOTE: Discard
SELV box if
installing
mains version
(option 1)
Power Supply
L
N
THROW AWAY
+
-
Fan Board
Fan Board
DO NOT
6
