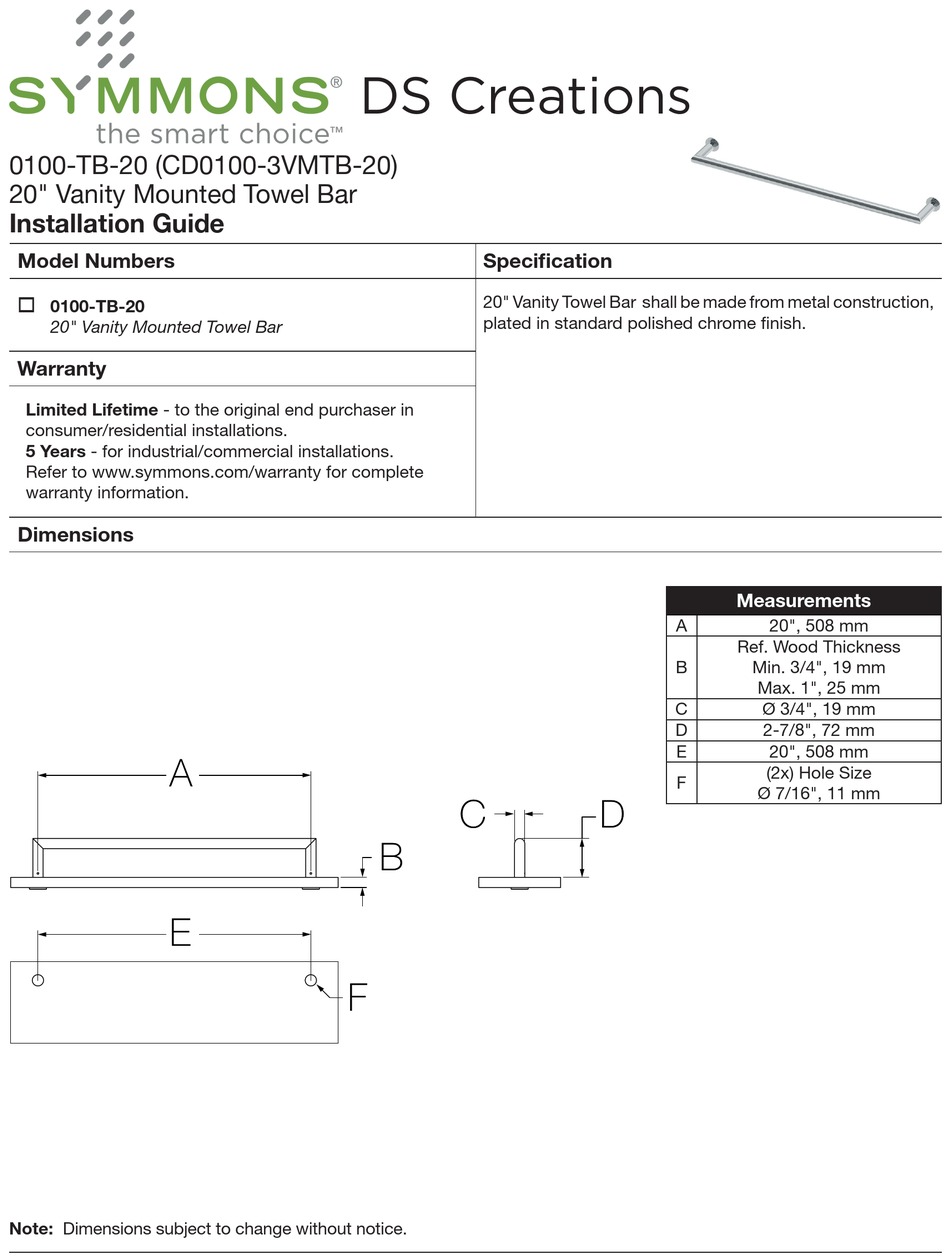

0100-TB-20 (CD0100-3VMTB-20)
20" Vanity Mounted Towel Bar
Installation Guide
Model Numbers
0100-TB-20
20" Vanity Mounted Towel Bar
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Dimensions
A A
E E
Note: Dimensions subject to change without notice.
DS Creations
Specification
20" Vanity Towel Bar shall be made from metal construction,
plated in standard polished chrome finish.
C C
B B
F F
Measurements
A
20", 508 mm
Ref. Wood Thickness
B
Min. 3/4", 19 mm
Max. 1", 25 mm
C
Ø 3/4", 19 mm
D
2-7/8", 72 mm
E
20", 508 mm
(2x) Hole Size
F
Ø 7/16", 11 mm
D D
