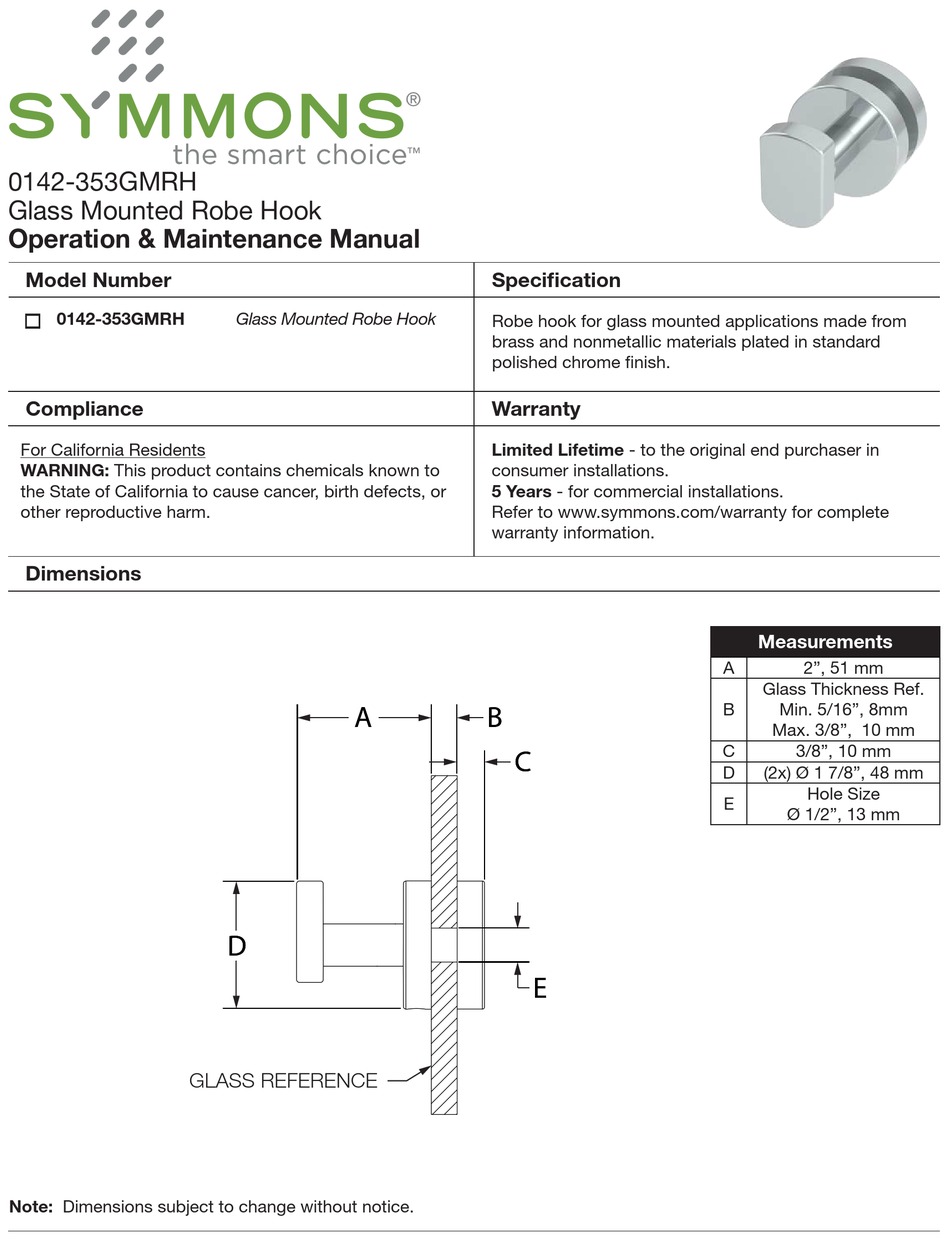

Symmons 0142-353GMRH Operation & Maintenance Manual

0142-353GMRH

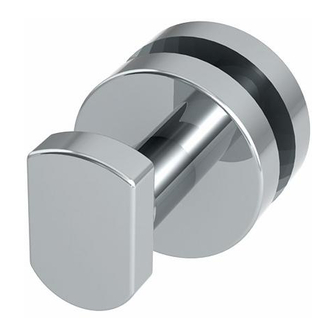

Glass Mounted Robe Hook
Operation & Maintenance Manual
Model Number
0142-353GMRH

Compliance
For California Residents
WARNING: This product contains chemicals known to
the State of California to cause cancer, birth defects, or
other reproductive harm.

Dimensions

Note: Dimensions subject to change without notice.
Glass Mounted Robe Hook
A A
D D
GLASS REFERENCE
Specification
Robe hook for glass mounted applications made from
brass and nonmetallic materials plated in standard
polished chrome finish.

Warranty

Limited Lifetime - to the original end purchaser in
consumer installations.
5 Years - for commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
B B
C C
E E
Measurements
A 2", 51 mm
Glass Thickness Ref.
B Min. 5/16", 8mm
Max. 3/8", 10 mm
C 3/8", 10 mm
D (2x) Ø 1 7/8", 48 mm
Hole Size
E
Ø 1/2", 13 mm
