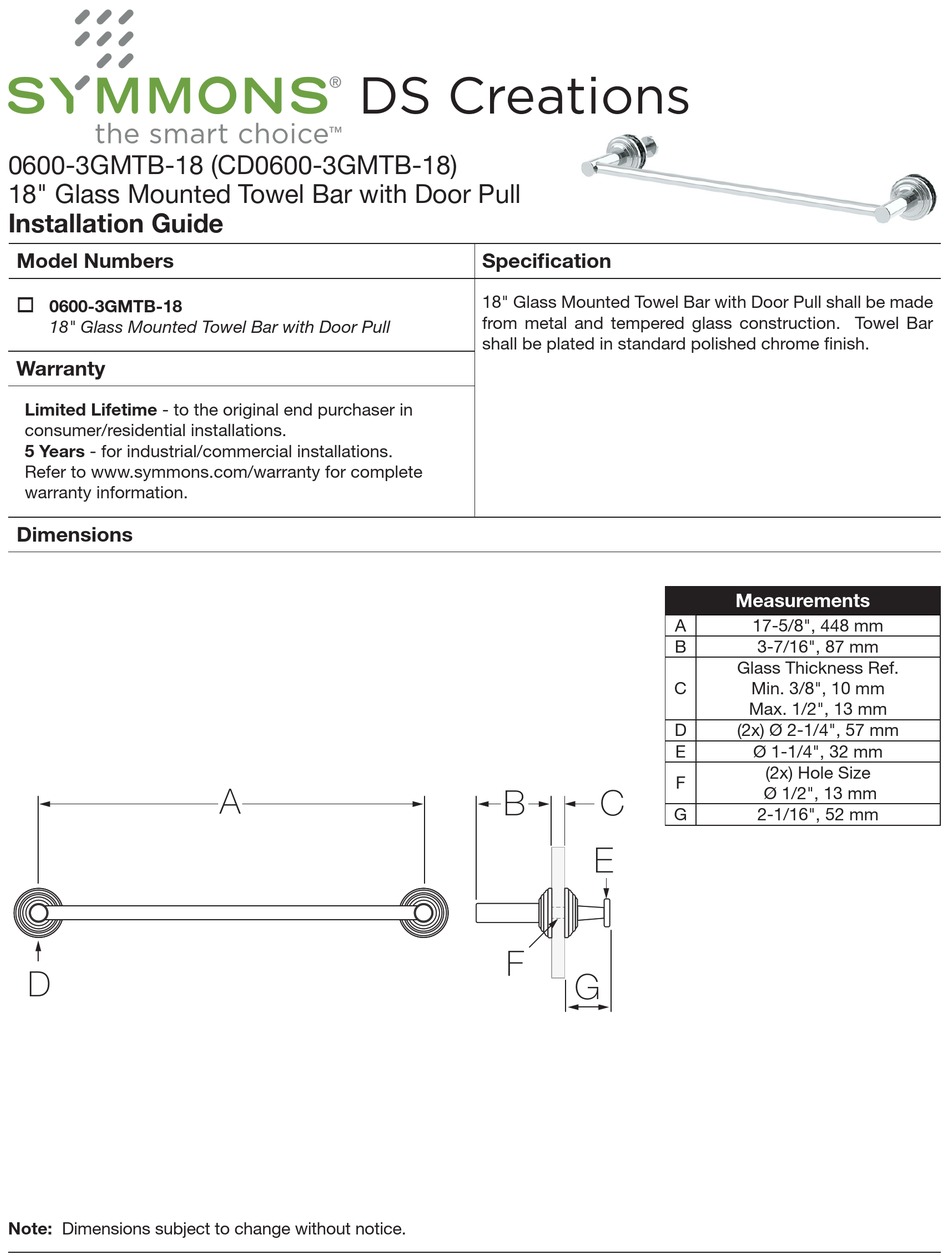

0600-3GMTB-18 (CD0600-3GMTB-18)
18" Glass Mounted Towel Bar with Door Pull
Installation Guide
Model Numbers
0600-3GMTB-18
18" Glass Mounted Towel Bar with Door Pull
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Dimensions
D D
Note: Dimensions subject to change without notice.
DS Creations
A A
Specification
18" Glass Mounted Towel Bar with Door Pull shall be made
from metal and tempered glass construction. Towel Bar
shall be plated in standard polished chrome finish.
B B
C C
E E
F F
G G
Measurements
A
17-5/8", 448 mm
B
3-7/16", 87 mm
Glass Thickness Ref.
C
Min. 3/8", 10 mm
Max. 1/2", 13 mm
D
(2x) Ø 2-1/4", 57 mm
E
Ø 1-1/4", 32 mm
(2x) Hole Size
F
Ø 1/2", 13 mm
G
2-1/16", 52 mm
