Summary of Contents for Gaggenau DF250141

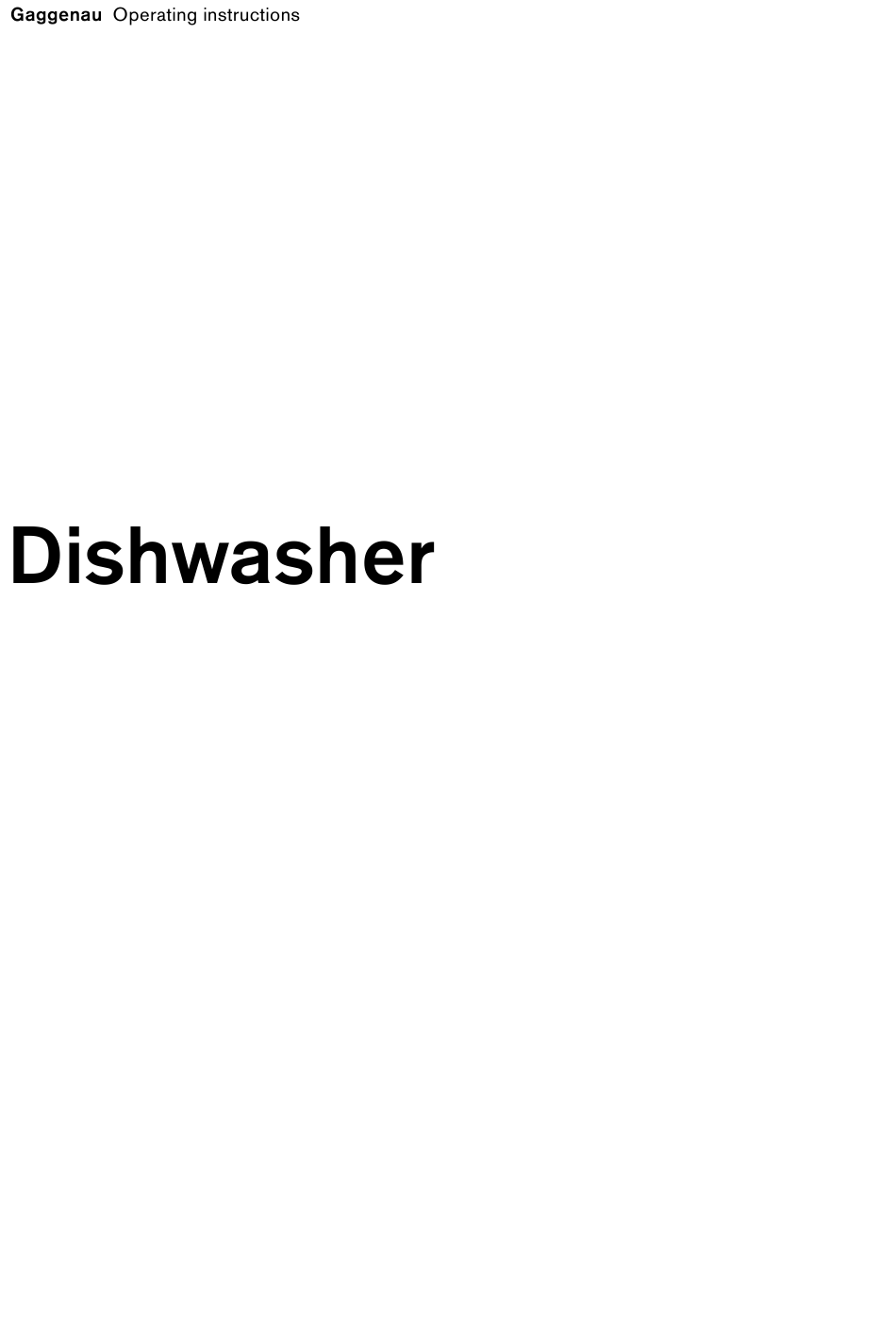

- Page 1 DF250141...
-
Page 3: Table Of Contents
en Table of contents Intended use Additional options Power Safety instructions Half load Hygiene Before you switch ON the appliance Intensive Delivery Extra drying Installation In daily use Operating the appliance Door lock Damage Programme data Disposal Aqua sensor Zeolith drying Protection of the environment Switching on the appliance Optical display while the... -
Page 4: Intended Use
Intended use Intended use Safety instructions ▯ This appliance is intended for use in the This appliance may be used by children over home and domestic environments. the age of 8 years old and by persons with reduced physical, sensory or mental ▯... -
Page 5: Installation
Safety instructions ▯ If you install a microwave oven above Installation the dishwasher, the microwave oven may ▯ Following installation, ensure that be damaged. the back of the dishwasher is not freely ▯ Install built-under or integratable accessible (protection against contact appliances only under continuous due to hot surface). -
Page 6: Damage
Safety instructions Damage Warning ▯ The appliance may be repaired and Risk of explosion! opened up by a technician only. To do Do not add any solvents to the washing this, disconnect the appliance from the chamber. Danger of explosion! power supply. -
Page 7: Protection Of The Environment
Protection of the environment Protection of the environment Getting to know your appliance Both the packaging of new appliances and the old Diagrams of the control panel and the interior of the appliances themselves contain valuable raw materials appliance can be found in the envelope at the front. and recyclable materials. -
Page 8: Overview Of Menu
Water softening system/Special salt Overview of menu Water softening system/Special salt The settings can be found in the individual chapters. • Water Hardness •:‹‹ - •:‹ˆ To ensure good washing results, the dishwasher š Intensive drying š:‹‹ - š:‹‚ requires soft water, i.e. containing low §... -
Page 9: Water Hardness Table
Water softening system/Special salt Water hardness table Using detergents with salt component D e t e r g e n t s w i t h s a l t c o m p o n e n t If combined detergents with a salt component are used, salt can usually be omitted up to a water hardness of 21°... -
Page 10: Rinse Aid
Rinse aid Setting amount of rinse aid Rinse aid The amount of rinse aid can be set from §:‹‹ to §:‹‡. Please set rinse aid on §:‹… to obtain very As soon as the rinse-aid refill indicator H is lit on good drying results (§:‹…... -
Page 11: Utensils
Utensils Loading the dishwasher Utensils Remove large food remnants. It is not necessary to prerinse utensils under running water. Place the utensils so that Not suitable ‒ they are secure and cannot tip over. ▯ Cutlery and utensils made of wood. ‒... -
Page 12: Cups And Glasses
Utensils Cups and glasses Pans Top basket 12 Bottom basket 9* Note Heavily soiled utensils (pans) should be placed in the Utensils must not be placed above the tablet bottom basket. The more powerful spray jet provides collecting tray 1B. These may block the lid of the a better dishwashing result. -
Page 13: Cutlery Drawer
Utensils Cutlery drawer F olding spikes * F o l d i n g s p i k e s Arrange the cutlery in the cutlery drawer 1* as * depending on model illustrated. Separately arranged cutlery is easier The spikes can be folded down to improve to remove after washing. -
Page 14: Adjusting The Height Of The Basket
Detergent Adjusting the height of the basket Detergent The height of the upper utensils basket 12 can be adjusted in 3 stages to create more space either in the You can use tablets as well as powder or liquid upper or lower basket. detergents for dishwashers, but never use washing- up liquid. -
Page 15: Adding Detergent
Detergent Adding detergent Combination detergent If the detergent dispenser 9: is still closed, Apart from conventional detergents (Solo), a number press the lock 9B to open the detergent of products are offered with additional functions. dispenser. These products contain not only the detergent but also rinse-aid and salt replacement substances (3in1) Pour detergent into the dry detergent and, depending on the combination (4in1, 5in1, etc.),... -
Page 16: Overview Of Programmes
Overview of programmes Overview of programmes The max. possible number of programmes is illustrated in this overview. The corresponding programmes for your appliance can be found on the fascia. Type of utensils Type of soiling Programme Possible additional Programme sequence options pots and pans, non-sensi- Is optimised according to... -
Page 17: Additional Options
Additional options Additional options Operating the appliance * depending on model Programme data Additional options can be set with the buttons X. The programme data (consumption values) can be found in the summary of instructions. They refer to ¥ normal conditions and the water hardness set value •:‹…. -
Page 18: Switching On The Appliance
Operating the appliance Switching on the appliance Optical display while the programme is running * Turn on the tap fully. O p t i c a l d i s p l a y w h i l e t h e p r o g r a m m e i s r u n n i n g * depending on model Open the door. -
Page 19: Remaining Running Time Display
Operating the appliance Remaining running time display End of programme The end of the programme O / ‹:‹‹ is displayed on When the programme is selected, the programme running time is indicated on the digital display h. the floor – provided the optical display is switched on When the programme has started, the remaining and is visible. -
Page 20: Automatic Switch Off / Interior Light
Operating the appliance Automatic switch off after end of Switching off the appliance programme or interior light* Short time after the end of the programme: A u t o m a t i c s w i t c h o f f / i n t e r i o r l i g h t * depending on model Open the door. -
Page 21: Changing The Programme
Cleaning and maintenance Changing the programme Cleaning and maintenance When the START button ` has been pressed, the programme cannot be changed. A regular inspection and maintenance of your machine The only way a programme can be changed is by will help to prevent faults. -
Page 22: Special Salt And Rinse Aid
Cleaning and maintenance Special salt and rinse aid Spray arms ▯ Check the refill indicators @ and H. If Limescale and contaminants in the rinsing water may block nozzles and bearings on the spray arms 1: required, refill salt and/or rinse aid. and 1Z. -
Page 23: Fault, What To Do
Fault, what to do? In this case: Fault, what to do? First always disconnect the appliance from the power supply. Experience has shown that you can rectify most faults Take out top basket 12 and bottom basket 9*. which occur in daily operation yourself. This ensures that the machine is quickly available to you again. -
Page 24: Fault Table
Fault, what to do? Fault table Fault Cause Remedial action “Check water supply” display 8 Supply hose kinked. Install supply hose without kinks. lights up. Tap turned off. Turn the tap on. Tap jammed or calcified. Turn the tap on. Flow rate must be min. - Page 25 Fault, what to do? Fault Cause Remedial action Refill indicator for salt @ and/or Refill indicator switched off. Activation/deactivation (see chapter Water sof- rinse-aid H is not lit. tening system/Special salt or Rinse aid). There is still enough special salt/rinse Check refill indicator, levels.
- Page 26 Fault, what to do? Fault Cause Remedial action Food remnants on the utensils. Utensils placed too closely together, Arrange utensils with adequate clearance utensils basket overfilled. between them ensuring that the spray jets can reach the surface of the utensils. Prevent con- tact points.
- Page 27 Fault, what to do? Fault Cause Remedial action White, stubborn coatings; limes- Detergent substances are deposited. Change detergent brand. cale on the utensils, container or These coatings cannot usually be Clean appliance mechanically. door. removed with chemicals (appliance cleaner, ...). Hardness range incorrectly set or water Set water softening system according to hardness greater than 8.9 mmol/l.
- Page 28 Fault, what to do? Fault Cause Remedial action Rust spots on the cutlery. Cutlery not adequately rust-resistant. Use corrosion-resistant cutlery. Knife blades are frequently more severely affected. Cutlery will also rust if rusting parts are Do not wash rusting parts. rinsed at the same time (pan handles, damaged utensil baskets, etc.).
-
Page 29: Customer Service
Customer service Customer service Installation and connection If you are unable to rectify the fault, please contact The dishwasher must be connected correctly, your customer service. We always find a suitable otherwise it will not function properly. solution, even to avoid unnecessary visits The specifications for the inlet and outlet as well as by technicians. -
Page 30: Delivery
Installation and connection Delivery Installation Your dishwasher has been checked thoroughly in the The required installation dimensions can be found in factory to ensure that it is in working order. This may the installation instructions. Level the appliance with cause small water stains. These will disappear after the aid of the height-adjustable feet. -
Page 31: Warm Water Connection
Installation and connection Warm water connection * Electrical connection W a r m w a t e r c o n n e c t i o n ▯ * depending on model Connect the appliance to an alternating current only, ranging from 220 V to 240 V and 50 The dishwasher can be connected to cold or hot water Hz or 60 Hz via a correctly installed socket with... -
Page 32: Transportation
Installation and connection Transportation Protection against frost P r o t e c t i o n a g a i n s t f r o s t ( E m p t y i n g t h e a p p l i a n c e ) Empty the dishwasher and secure loose parts. - Page 34 *9001152636* 9001152636 (9804) 440MV...
