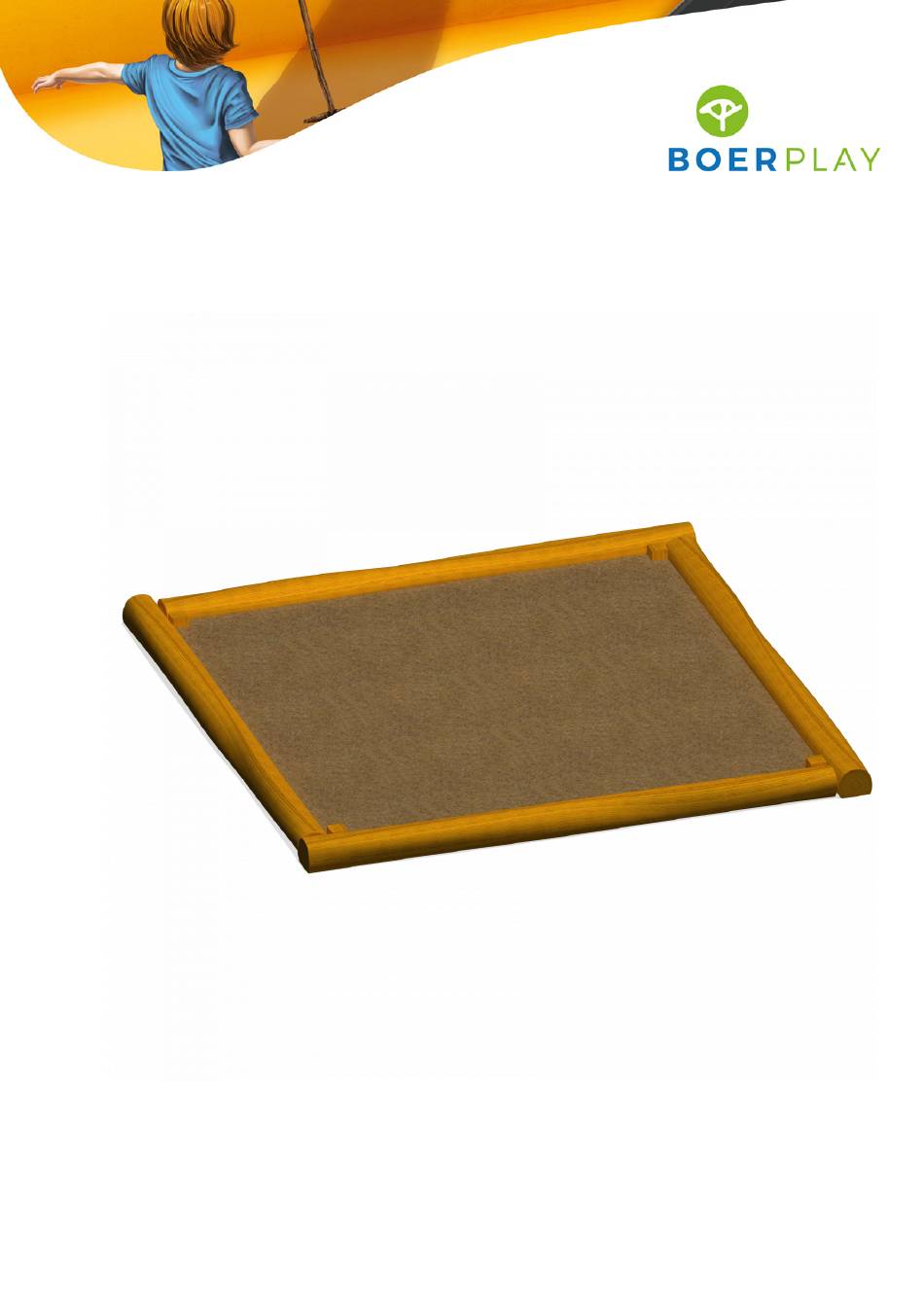

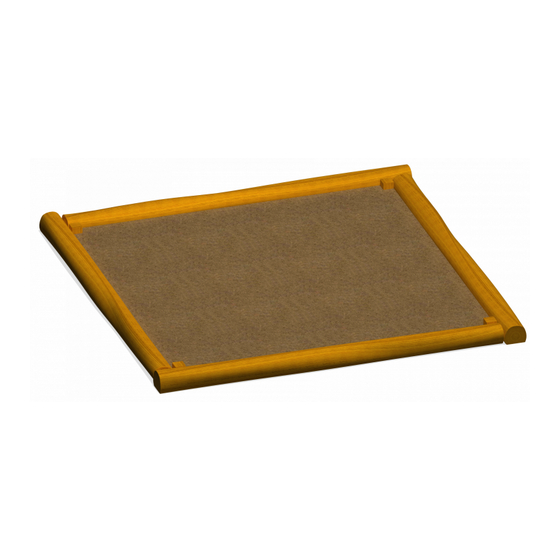

  • Page 1 Sandpit PSTE000.330...
  • Page 2 5,60 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE PST 000 330 Zandbak Title Tekening Opmerking 2,5 m x 2,5 m Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 31-5-2013 Date SPEELTOESTELLEN...
  • Page 3 1,80 m 2,01 m 1,80 m Doorgraafbeveiliging aanbrengen Benaming TOE PST 000 330 Zandbak Title Tekening Opmerking 2,5 m x 2,5 m Drawing Comment BOER Datum Bodemplan Groundplan 31-5-2013 Date SPEELTOESTELLEN...
  • Page 4 2,45 m Benaming TOE PST 000 330 Zandbak Title Tekening Opmerking 2,5 m x 2,5 m Drawing Comment BOER Datum Afmetingen Dimensions 31-5-2013 Date SPEELTOESTELLEN...
  • Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat - The modules which contain tubes are dimensioned at the top of the flanges...
  • Page 6 PSTE000.330 Sandpit LOGBOOK (Onderstaand logboek kan gebruikt worden om te voldoen aan de eisen, gesteld in artikel 14 van het Warenwetbesluit Attractie- en Speeltoestellen) Type indication Adventure Play Product code PSTE000.330 Name of equipment Zandbak 2.5x2.5m Maximum height of fall <...
  • Page 7: Maintenance

    LOGBOOK Inspection and maintenance intervals months Inspection Maintenance between inspections Verify equipment's stability, junctions and missing parts. Add missing parts, secure joints, apply missing fixing Inspect bolts, screws and nuts for absence, jams, corrosion agent and replace corroded parts. and wear. Replace worn parts and/or remove non-functioning Check suspension for wear.
  • Page 9 2114 Grondmarkering Ground level marker Type Progr. Volgnr Bew. Rev. Benaming Opmerking 70 mm Vierkante paal 600 mm Lengte Paal 14-16 Lengte =2300 B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g MOD PST 014 002 Zijkant zandbak Title...
