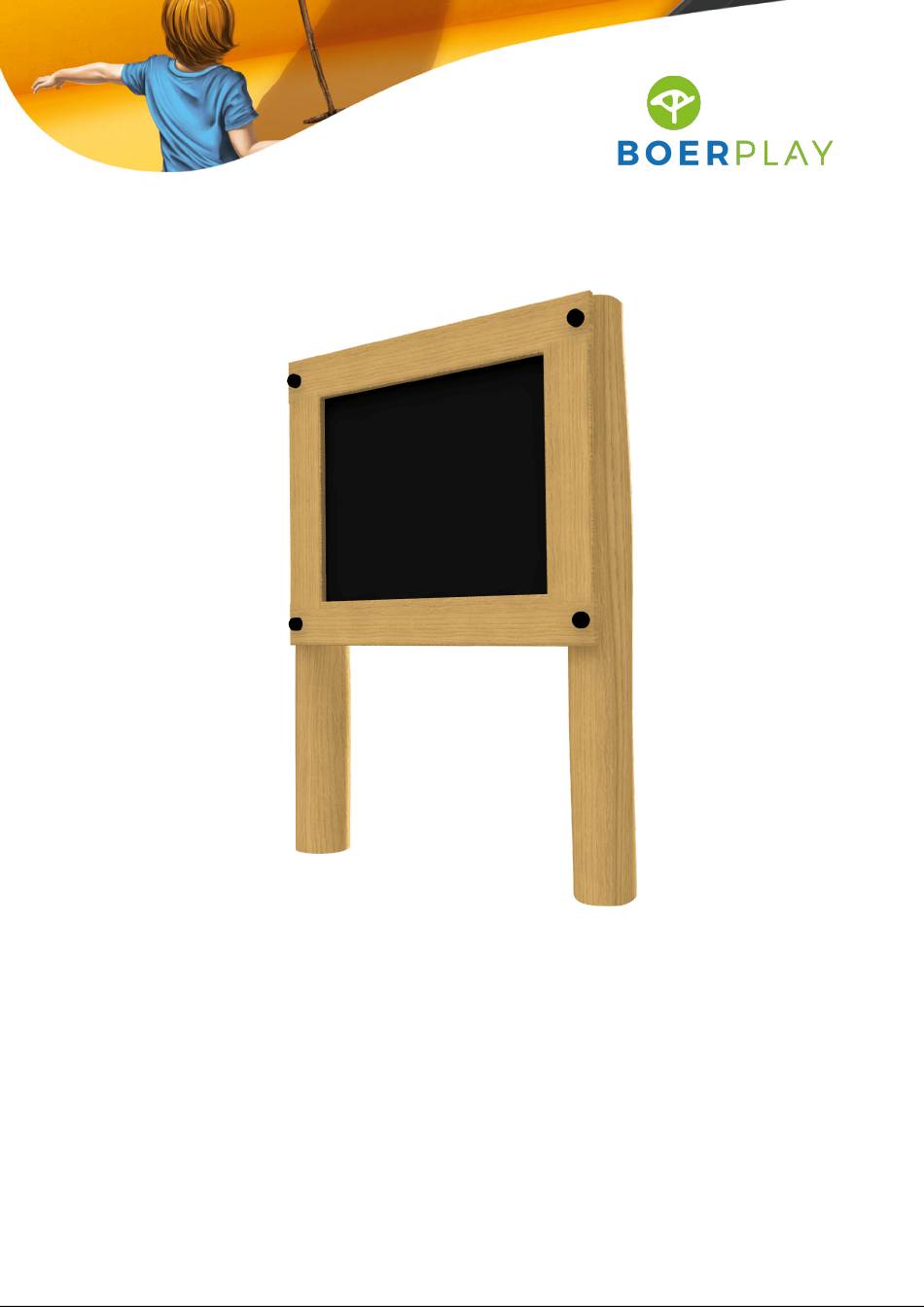

- Page 1 Blackboard PSTE000.275...
- Page 2 0,00 m 0,18 m 1,38 m 1,32 m 0,64 m 0,00 m Benaming TOE PST 000 275 A Schoolbord Title Tekening Opmerking Adventure Play Drawing Comment Datum Hoofdafmetingen Main dimensions 20-12-2021 Date...
- Page 3 0,15 m 0,39 m 0,38 m 0,86 m Grondmarkering Ground level marker 0,65 m Benaming TOE PST 000 275 A Schoolbord Title Tekening Opmerking Adventure Play Drawing Comment Datum Bodemplan Groundplan 20-12-2021 Date...
- Page 4 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
- Page 5 LOGBOOK Type indication Adventure Play Article number PSTE000.275 Product Name Blackboard Maximum fall height n.v.t. Construction year 2024 Certificate 062668 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
- Page 6 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 7: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 8 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 10 0,94 m 0,88 m Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 200, RVS A2-70 Schroef Assy 5 x 70 - RVS A2-70 5 x 35 - RVS A2-70 Schroef Assy SCHOOLBORD Paal 14-16 Lengte =2000 Standaard plank 120x20 Lengte = 1000 Standaard plank 120x20 Lengte = 600...
