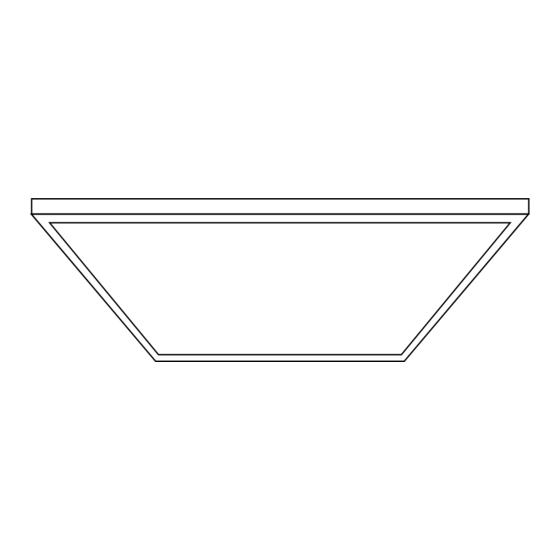

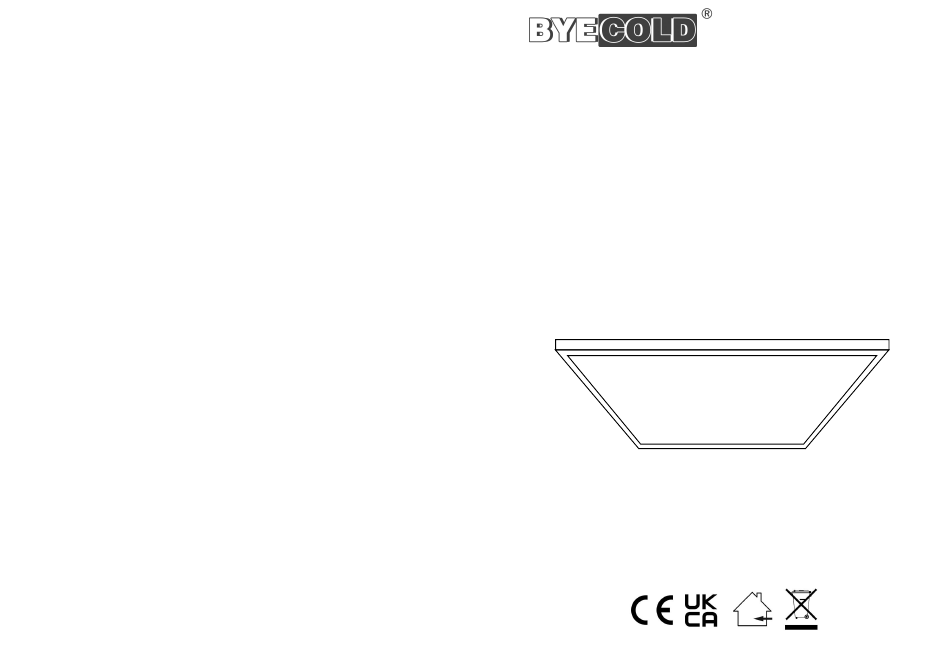

- Page 1 INFRARED CEILING HEATER INSTRUCTION MANUAL (EN+DE)
- Page 2 SYMBOLS Warning This signal word indicates a hazard with an average risk level which, if not avoided, can result in serious injury or death. Warning of electrical voltage This symbol indicates dangers to the life and health of persons due to electrical voltage. Symbols Meaning This symbol located on the device indicates that it is...
- Page 3 Dear Customer, 1┃WARNING & PRECAUTION Thank you for purchasing this device. Please Read this manual carefully before starting or using the device. Always read the following instructions carefully and store the manual in the immediate vicinity of the device or its site of use! follow them to prevent possible damages.
- Page 4 • Ensure that all electric cables outside of the device are protected from damage Warning (e.g. caused by animals). Never use the device if electric cables or the power Do not use the device in small rooms if persons are present who cannot leave the connection are damaged! room independently and who are not under constant supervision.
- Page 5 Main 130-150℃ Front Rear Frame Aluminum power cord Power cord length ≤1.9m Heating Voltage Rated Model NO. Size(mm) Power Frequency Current Front surface IGT1-HH0606-1 595*595*35 400W 1.7A IGT1-HH1006-1 1005*605*35 660W 2.9A 230V/50HZ IGT1-HH1006-1 1055*605*35 660W 2.9A IGT1-HH1206-1 1195*595*35 860W 3.7A...
- Page 6 Panel Size/mm Hole Distances of Screws/mm 6┃INSTALLATION 595*595 (or similar) A485*B100mm 1005*605(or similar) A495*B300mm Warning 1055*605(or similar) A495*B300mm • Never install the device in a way that it radiates directly onto walls or other 1195*595 (or similar) A485*B300mm objects. Observe the minimum distances from walls or other objects as Note: 595 x 595 mm and 1195 x 595 mm size panel are also applicable to described in the following.
- Page 7 WARNING 9┃MAINTENANCE & SERVICING To avoid falling off, slide the panel left and right to make sure the two hooks Activities required before starting maintenance have been completely put into the rear of the two long frames! Warning of electrical voltage •...
- Page 8 Pmin equipment in your vicinity. The addresses can be obtained from your municipality (kW) Pmax,c (kW) or local administration. (kW) IGT1-HH0606-1 220-240 50/60 0.40 0.40 0.40 Fixed The separate collection of waste electrical and electronic equipment aims to IGT1-HH1006-1 220-240 50/60 0.70...
- Page 9 IGT1-HH1206-1 Operation Voltage 220-240V/50-60Hz Rated Power 400W 660W 860W Manufacturer Jiangsu Byecold Technology Co.,Ltd No.666,Mingzhu Industry Zone, Zhaodun Town, Pizhou Address 221300,Jiangsu Importer Xuzhou Goton Technology Co.,Ltd Room 513, Unit 2,Commercial outer street 6, SOHO Address building No.3&4, Shimao Plaza, Yunlong District ，...
