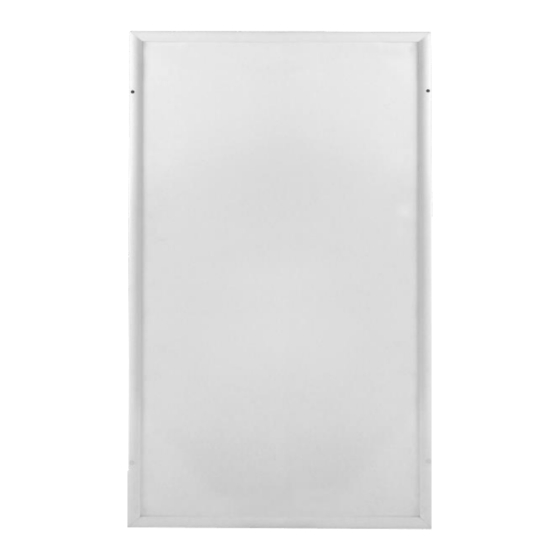

- Page 1 Infrared heating panel Ceiling series HH User manual - 1 -...
- Page 2 SYMBOLS Warning This marking symbolizes a level of risk that, if not avoided, can cause serious injury or death. Warning of electrical voltage This sign symbolizes the danger to health and life of persons due to electrical voltage. Symbol Explanation This symbol on the device indicates that it is forbidden to place objects (e.g.
-
Page 3: Table Of Contents
CONTENTS 1. WARNINGS AND PRECAUTIONS 2. FEATURES 3. TECHNICAL INFORMATION 4. PACKAGING CONTENT 5. DESCRIPTION OF EQUIPMENT 6. INSTALLATION 7. PROBLEM SOLVING 8. MAINTENANCE AND SERVICE 9. STORAGE 10. TECHNICAL ANNEX 11. LIKVIDATION - 3 -... -
Page 4: Warnings And Precautions
Keep all warnings and instructions for future reference. Warning The HH series is designed for ceiling mounting only!!! Make sure you know which series of panels you have purchased and install them according to the instructions and type in the installation section of the manual. - Page 5 Warning Do not use the device in small rooms where there are people who cannot leave the room independently and unless the device is under constant supervision. Warning Some parts of the device can be very hot and cause burns. Pay special attention in the presence of children. Installation near curtains and other flammable materials is dangerous.
- Page 6 is switched on. Before each use, check the equipment, accessories and • connecting parts for damage. Do not use damaged equipment or accessories. Ensure that all cables belonging to the device are • protected from damage (e.g. by animals). Never use the equipment if the electrical cables or the mains connection are damaged or otherwise destroyed.
-
Page 7: Features
• Do not place the device on a combustible floor. When the device is switched on, do not touch. There is a • risk of burns. Allow the equipment to cool properly before moving or • servicing it. Do not use the device near bathtubs, showers, swimming •... -
Page 8: Technical Information
TECHNICAL INFORMATION HH series (ceiling mounting only) Heating element Nicr heating wire Heating method Infrared heating Voltage 220 - 240V/50Hz Surface temperature 110-130 °C Frame White aluminium IP degree IP54 (excluding plug) Overheating protection Power cable length 1.9 m PACKAGING CONTENT A. -
Page 9: Description Of Equipment
DESCRIPTION OF EQUIPMENT ① 1. Heating layer2 . Aluminum frame3 . Insulation layer4 . Aluminium fabric foil5 . Mounting holes INSTALLATION Make sure to remove the protective film (from the front)! 1. Place the panel in the chosen position and mark the frame holes. - Page 10 2. Insert the dowels into the holes. 3. Insert the screws into the mounting holes on the front of the device and screw them into the dowels. 4. Cover the holes with the plugs. - 10 -...
-
Page 11: Problem Solving
PROBLEM SOLVING The Problem Reason Solution The device Structural stress of If the noise makes noise the thermal persists, claim the when powered. insulator. device. The surface of This is due to the It's a common the device is thermal expansion phenomenon. -
Page 12: Storage
Cleaning the equipment Warning of electrical voltage. Never soak the device in water or other liquids! Clean the device with a soft, damp, lint-free cloth. Make sure that no moisture enters the device. Protect electrical components from moisture. Do not use any aggressive cleaning agents such as cleaning sprays, solvents, alcohol-based cleaners or abrasive cleaners to wet the fabric. -
Page 13: Technical Annex
10. TECHNICAL ANNEX Model No. : Size (cm) Voltage Load Power (V/Hz) HH0606 62.7*62.7*2.3 1.9 A 3.0 A HH1006 102.7*62.7*2.3 230 V HH1206 122.7*62.7*2.3 3.9 A 50 Hz 5.2 A HH1506 152.7*62.7*2.3 1200 6.0 A HH1806 182.7*62.7*2.3 1400 Information requirements for local electric heaters: Option Heat output/room temperature control type (select one) Single stage heat output and no room temperature... -
Page 14: Likvidation
Byecold.eu s.r.o. Add: Na Vyhone 4400, 69501 Hodonin Czech Republic VAT: CZ09361944 Tel: +420 725 067 000 e-mail: info@byecold.eu...
