  • Page 1 User Manual...

  • Page 2: Table Of Contents

    ABLE OF ONTENTS 1. Before You Begin ......................3 What Is Included ..........................3 Unpacking Instructions ........................3 Claims ..............................3 Text Conventions ..........................3 Symbols ............................3 Disclaimer ............................3 Product at a Glance ........................4 Safety Notes ............................ 4 2.

  • Page 3: Before You Begin

    1. B EFORE EGIN · · What Is 6SPOT™ Quad IRC Carrying Bag · · Power Cord Warranty Card Included · · 2 L-Brackets Quick Reference Guide Unpacking Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition.

  • Page 4: Product At A Glance

    Product at a Use on Dimmer Auto Programs Outdoor Use Auto-ranging Power Supply Glance Sound-Active Replaceable Fuse User-Serviceable Master/Slave Safety Notes Please read the following Safety Notes carefully before working with the product. The Notes include important safety information about installation, usage, and maintenance. ·...

  • Page 5: Introduction

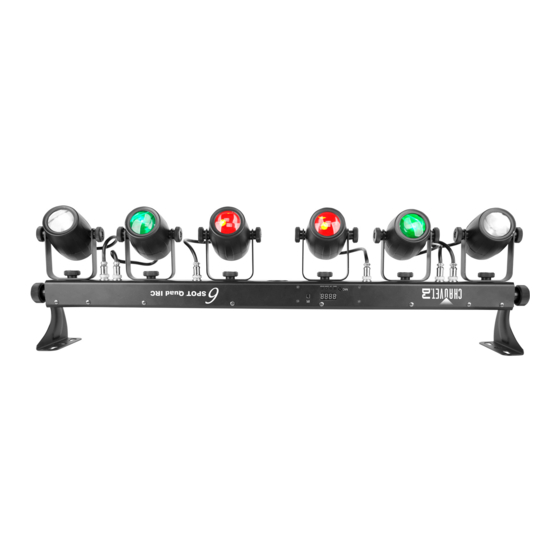

    2. I NTRODUCTION Product Overview Back Panel View Fuse Power In Power Out DMX In/Out Holder Tripod Adjustment Safety Cable Knob Pass-through Adjustment Knob Mounting Brackets Menu Buttons Display Microphone IR Sensor Adjustment Knobs Front View 6SPOT™ Quad IRC User Manual Rev. 1 Page 5 of 21...

  • Page 6: Product Dimensions

    Product Dimensions 37.25 in 946 mm 10.8 in 276 mm 3.9 in 100 mm Page 6 of 21 6SPOT™ Quad IRC User Manual Rev. 1...

  • Page 7: Setup

    3. S ETUP AC Power The 6SPOT™ Quad IRC has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.

  • Page 8: Mounting

    Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The 6SPOT™ Quad IRC may be mounted in any position; however, make sure adequate ventilation is provided around the product. · Rigging Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming purposes.

  • Page 9: Operation

    4. O PERATION Control Panel To access the control panel functions, use the four buttons located underneath the display. Please refer to the Product Overview to see the button locations on the control panel. Operation Button Function Press to find an operation mode or to back out of the current menu <MENU>...

  • Page 10: Dmx Channel Assignments And Values

    DMX Channel Assignments and Values 6SPOT™ Quad IRC Zones for DMX Control 28CH Channel Function Value Percent/Setting 000ó255 0–100% Red 1 Green 1 000ó255 0–100% 000ó255 0–100% Blue 1 White 1 000ó255 0–100% Red 2 000ó255 0–100% 000ó255 0–100% Green 2 Blue 2 000ó255 0–100%...

  • Page 11: 28Ch (Cont.)

    28CH Channel Function Value Percent/Setting (cont.) 000ó010 No function 011ó032 Auto 1 033ó054 Auto 2 055ó076 Auto 3 077ó098 Auto 4 099ó120 Auto 5 Auto Programs 121ó142 Auto 6 143ó164 Auto 7 165ó186 Auto 8 187ó208 Auto 9 209ó230 Auto 10 231ó250 Auto 0 (runs Auto 1–10) 251ó255...

  • Page 12: 10Ch (Cont.)

    10CH Channel Function Value Percent/Setting (cont.) No function 000ó010 011ó027 028ó044 Green 045ó061 Blue 062ó078 White 079ó095 Green + Blue 096ó113 Red + Blue 114ó130 Red + Green Zone 2 131ó146 Red + Green + Blue 147ó163 Red+ White 164ó180 Green + White 181ó197 Blue + White...

  • Page 13: 10Ch (Cont.)

    10CH Channel Function Value Percent/Setting (cont.) No function 000ó010 011ó027 028ó044 Green 045ó061 Blue 062ó078 White 079ó095 Green + Blue 096ó113 Red + Blue 114ó130 Red + Green Zone 4 131ó146 Red + Green + Blue 147ó163 Red+ White 164ó180 Green + White 181ó197 Blue + White...

  • Page 14: 10Ch (Cont.)

    Channel Function Value Percent/Setting 10CH (cont.) No function 000ó010 011ó027 028ó044 Green 045ó061 Blue 062ó078 White 079ó095 Green + Blue 096ó113 Red + Blue 114ó130 Red + Green Zone 6 131ó146 Red + Green + Blue 147ó163 Red+ White 164ó180 Green + White 181ó197 Blue + White...

  • Page 15: Configuration (Standalone)

    Configuration Set the product in one of the standalone modes to control without a DMX controller. · Connect the product to a suitable power outlet. (Standalone) Never connect a product that is operating in any standalone mode to a DMX string connected to a DMX controller.

  • Page 16: Irc-6 Infrared Remote Control

    IRC-6 Infrared is compatible with the IRC-6 infrared remote control from 6SPOT™ Quad IRC Remote Control Chauvet. To run the 6SPOT™ Quad IRC in Infrared mode, do the following: Press <MENU> repeatedly until SET shows on the display. Press <ENTER>. Use <UP>...

  • Page 17: Master/Slave Mode

    Master/Slave The Master/Slave mode allows a single 6SPOT™ Quad IRC (the master) to control the actions of one or more 6SPOT™ Quad IRC products (the slaves) without the need of a Mode DMX controller. The master will be set to operate in either Custom or Sound-Active mode, or an auto program, while the slave units will be set to operate in Slave mode.

  • Page 18: Maintenance

    5. M AINTENANCE Product Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and/or mechanical wear. To maintain optimum Maintenance performance and minimize wear, clean your lighting products at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency.

  • Page 19: Technical Specifications

    6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 37.25 in (946 mm) 3.9 in (100 mm) 10.8 in (276 mm) 11.6 lb (5.3 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Supply Type Range Voltage Selection Power...

  • Page 20: Returns

    ETURNS In case you need to get support or return a product: · If you are located in the U.S., contact Chauvet World Headquarters (see Contact Us). · If you are located in the UK or Ireland, contact Chauvet Europe Ltd. (see Contact Us).

  • Page 21: Contact Us

    ONTACT 6SPOT™ Quad IRC User Manual Rev. 1 Page 21 of 21...
