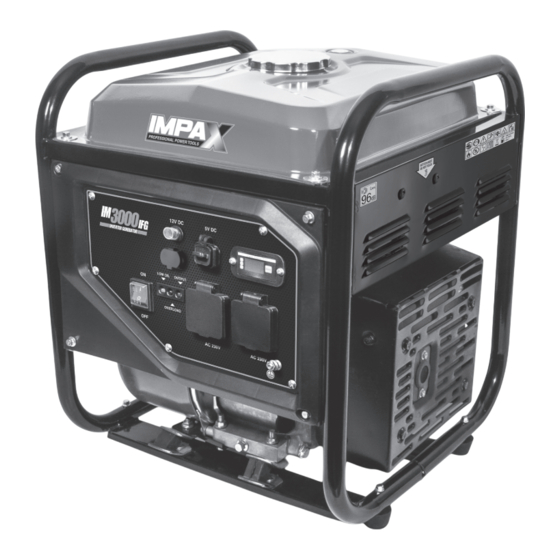

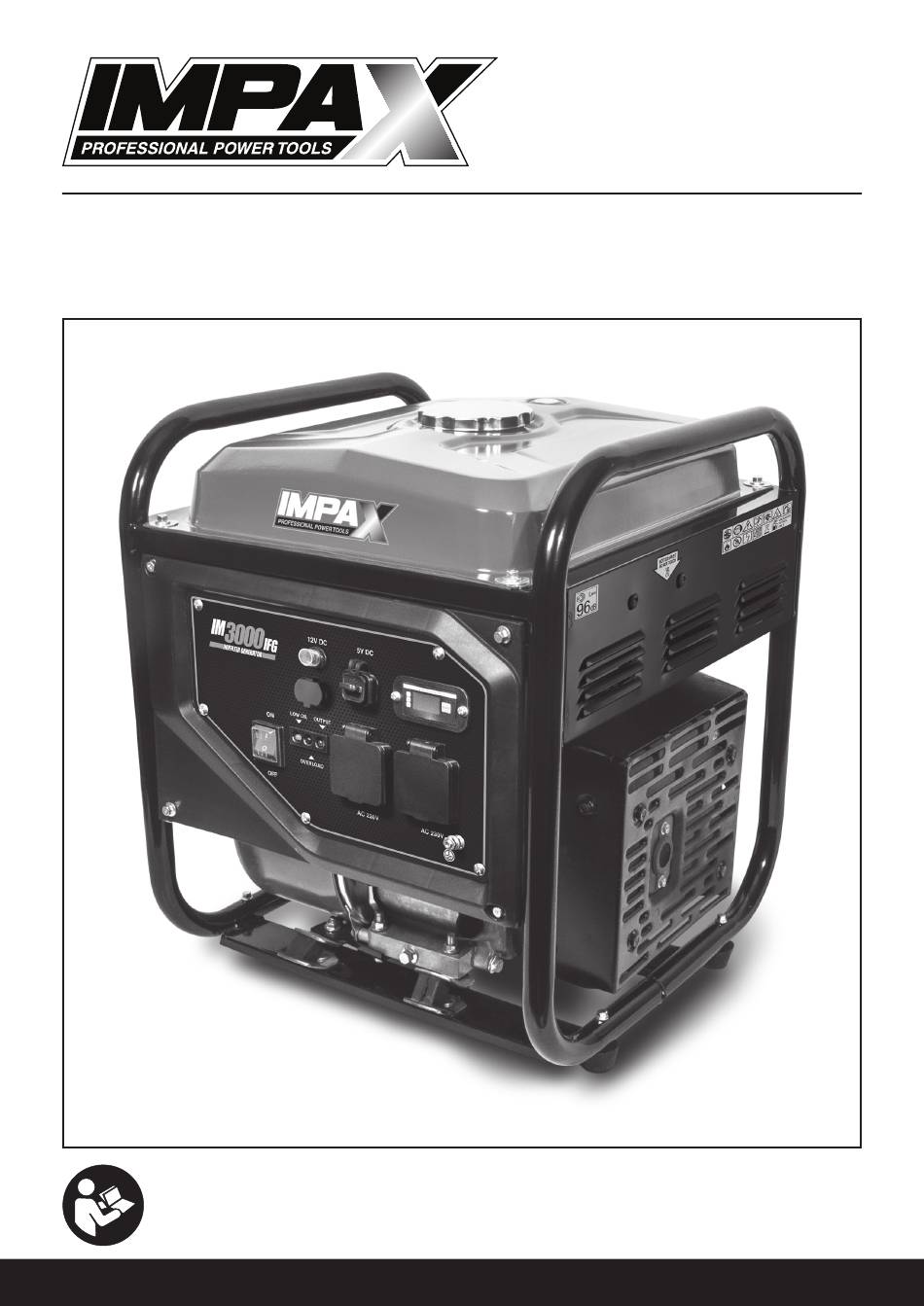

- Page 1 2800W INVERTER GENERATOR IM3000IFG Always Read Instruction Manual Retain for Future Reference...
-
Page 2: Certificate Of Guarantee
CERTIFICATE OF GUARANTEE This product is guaranteed for a period of 1 Year, with effect from the date of purchase and applies only to the original purchaser. This guarantee only applies to defects arising from, defective materials and or faulty workmanship that become evident during the guarantee period only and does not include consumable items. -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION The purpose of safety rules is to attract your Generator exhaust contains high levels of attention to possible dangers. The safety carbon monoxide (CO), a poisonous gas you symbols and the explanations with them, require cannot see or smell. If you can smell the your careful attention and understanding. - Page 4 IMPORTANT SAFETY INFORMATION Do not operate generator when you are tired or To prevent an electric shock, never operate the under the influence of drugs, alcohol, or machine in rain, snow or touch with wet hands. medication. Check the fuel system periodically for leaks. The electrical output load must not exceed the Seals and hoses should be checked for signs of maximum load stated on the rating plate.
-
Page 5: Adding Fuel
IMPORTANT SAFETY INFORMATION For power outages, permanently installed ADDING FUEL stationary generators are better suited for Turn the generator off and let it cool for at least providing back-up power to the home. Even a five minutes before removing the fuel cap. properly connected portable generator can Loosen the cap slowly to relieve pressure in the become overloaded. -
Page 6: Specific Safety Information
SPECIFIC SAFETY INFORMATION WARNING: When this generator is Check the ventilation hole inside the fuel tank cap used to supply a building wiring for debris. Do not block the vent. system: the generator must be installed Do not smoke when filling the generator with by a qualified electrician and connected to a unleaded fuel. - Page 7 COMPONENTS Component List 1. Fuel tank 8. AC socket (Left side) 2. DC circuit breaker 9. Oil filler cap/dipstick 3. Carry handle 10. AC power output indicator (green) 4. USB DC 5V 2.1A socket 11. Engine overload indicator (red) 5. Digital display 12.
- Page 8 COMPONENTS Component List 15. 4 stroke, OHV engine 18. Air filter cover 16. Recoil starter grip 19. Choke lever 17. Air filter cover connection screw 20. Fuel valve...
- Page 9 COMPONENTS Component List 21. Spark plug 22. Oil filler cap/dipstick...
- Page 10 COMPONENTS Component List 23. Muffler...
-
Page 11: Technical Specification
COMPONENTS Component List 24. Fuel gauge 27. Spark plug socket 25. Fuel cap 28. Funnel 26. Screwdriver 29. DC charging leads TECHNICAL SPECIFICATION AC output: 2 x 230V~50Hz Fuel tank capacity: 12.5L Rated power: COP 2.7kW Fuel type: Unleaded petrol Peak power: Max. -
Page 12: Pre-Operation Check
UNPACKING CAUTION! This packaging contains its accessories should be returned together in sharp objects. Take care when their original packaging to the retailer. unpacking. Remove the machine, Do not throw the packaging away, keep it safe together with the accessories supplied, from the throughout the guarantee period, then recycle if packaging. - Page 13 PRE-OPERATION CHECK Remove the fuel cap (Fig.3). Slowly fill the tank with unleaded petrol. The fuel tank should not be filled above the top of the Fig 3 fuel filter (Fig.5). Fig 5 Remove and clean the fuel filter (Fig.4). Replace and secure the fuel cap.
-
Page 14: Understanding The Control Panel
UNDERSTANDING THE CONTROL PANEL This function is applicable to 12V charging only. 1. DC socket. 8. The Oil alert system is designed to prevent engine damage caused by an insufficient amount of oil in the crankcase. Before the oil 2. The DC protector turns to “OFF” level in the crankcase can fall below a safe automatically when the electric device being limit, the Oil Alert indicator light comes on... -
Page 15: Starting The Generator
OPERATING INSTRUCTIONS STARTING THE GENERATOR 4. Hold down the generator firmly with one CAUTION. Always check the oil and hand on the frame. With the other hand grip fuel level before starting the engine, the recoil starter cord handle (Fig.10) and see Page 12 &... -
Page 16: Stopping The Generator
OPERATING INSTRUCTIONS STOPPING THE GENERATOR DC BATTERY CHARGING FUNCTION WARNING. In case of emergency, the This function is applicable to 12V battery easiest way to stop the generator is to charging only. directly put engine switch to OFF Disconnect the leads from the battery. position. - Page 17 OPERATING INSTRUCTIONS Plug the 12V charger lead into the socket on the Fig 16 generator, Fig 15. Fig 15 WARNING. Never smoke or make and break connections at the battery while charging. Sparks may ignite the battery NOTE: The DC protector turns off automatically gas.
-
Page 18: Checking/Cleaning The Air Filter
MAINTENANCE Used oil should be disposed of at an approved SPARK PLUG MAINTENANCE disposal site. See your local oil retailer for more The spark plug must be properly gapped and information. free of deposits in order to ensure proper engine operation. -
Page 19: Draining The Fuel Tank
MAINTENANCE 7. Replace spark plug cap. Fig 22 WARNING! Spark plug must be assembled firmly, or it will become hot and may damage generator. A loose spark plug can overheat and damage the engine. CLEANING THE EXHAUST PORT & MUFFLER Depending on the type of fuel used, the type and amount of oil used, and/or your operating conditions, the exhaust port and muffler may... - Page 20 MAINTENANCE CLEANING THE EXHAUST PORT & MUFFLER Fig 23 Depending on the type of fuel used, the type and amount of oil used, and/or your operating conditions, the exhaust port and muffler may become blocked with carbon deposits. If you notice a power loss with your petrol-powered tool, you may need to remove these deposits to restore performance.
-
Page 21: Maintenance Chart
MAINTENANCE CHART Item Remark Pre-operation Initial 1 month Every 3 month Every 6 month Every 12 month check (daily) or 20hours or 50 hours or 100 hours or 300 hours Spark plug Check condition Adjust gap and clean Replace if required Engine oil Check oil level Replace... -
Page 22: Troubleshooting
TROUBLESHOOTING... -
Page 23: Environmental Protection
TROUBLESHOOTING ENVIRONMENTAL PROTECTION Information for (private householders) for the environmentally responsible disposal of Waste Electrical and Electronic Equipment (WEEE) This symbol on products and or accompanying documents indicates that used and end of life electrical and electronic equipment should not be disposed of in household waste. - Page 24 SYMBOLS Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer. SYMBOLS DESIGNATION/EXPLANATION Do not expose to rain or use in damp locations. To reduce the risk of injury, the user must read and understand the operator’s manual before using this product.
-
Page 25: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY Product model: IM3000IFG Name and address of the manufacturer or his authorised representative: Nuair Ibérica, Lda. Rua da Zona Industrial, 560, 4520-114, Santa Maria da Feira, Portugal Tel: +351 256 580 930. Email: sat@nuair.pt This declaration of conformity is issued under the sole responsibility of the manufacturer. - Page 26 3000 WARNING! DO NOT OVERFILL THIS UNIT WITH OIL FILL WITH 550-600ML OF SAE 10W-30 or 10W-40 4-STROKE ENGINE OIL ONLY. The oil level should fall within the level indicator area on the dipstick. Overfilling this generator with oil will cause serious damage and will invalidate your warranty.
- Page 27 IMPAX GENERATOR TECHNICAL HELPLINE Technical and Spares Support IMPAX Petrol Generator Product Helpline If you experience any problems with your IMPAX generator please contact the helpline who can o er fault-finding, technical support and general guidance. Technical Helpline Number 0344 2642 485...
-
Page 28: Declaration Of Conformity
DECLARATION OF CONFORMITY Product model: IM3000IFG Name and address of the manufacturer or his authorised representative: NAP BRANDS LTD. Office 20, Fleming Court Business Centre, Leigh Road, Eastleigh, Hampshire SO50 9YN Tel: +44 (0)23 8064 9650. Email: sales@napbrands.co.uk This declaration of conformity is issued under the sole responsibility of the manufacturer.
