HMIVT8071iE series
1

Installation and Startup Guide

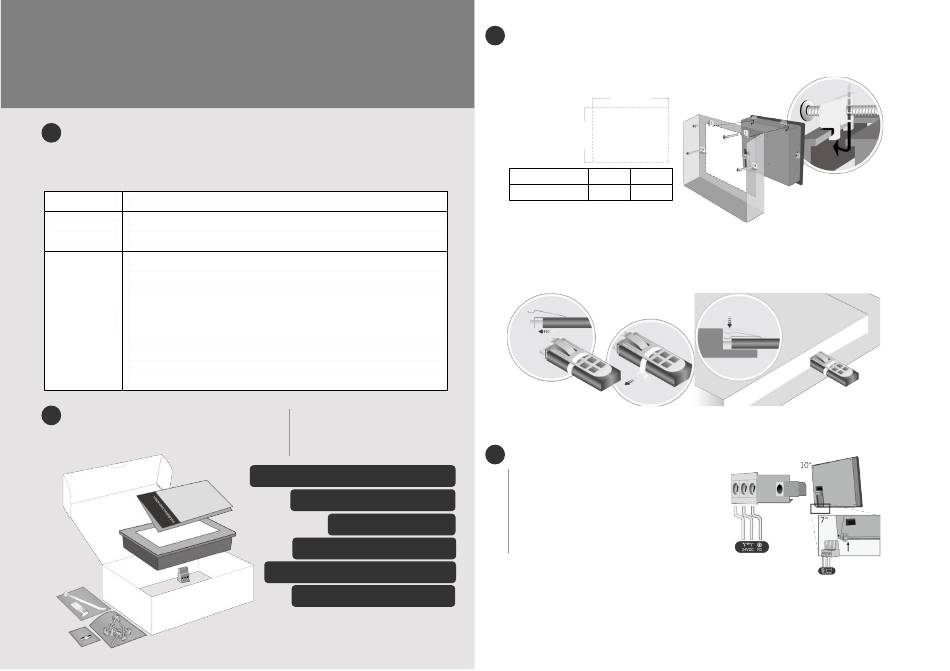

This document covers the installation of HMIVT8071iE Series HMI, for the detailed
specifications and operation, please refer to Brochure and EasyBuilder Pro User Manual.
Install Environment:
NEMA Rating
The
HMI product is NEMA 4 rated (Indoor Only).
The
HMI product has been tested to conform to European CE requirements. This
Electrical
means that the circuitry is designed to resist the effects of electrical noise. This
does not guarantee noise immunity in severe cases. Proper wire routing and
Environment
grounding will insure proper operation.
(1) Make sure that the displays are installed correctly and that the operating
limits are followed. Avoid installing units in environments where severe
mechanical vibration or shocks are present.
(2)
Do not operate the unit in areas subject to explosion hazards due to
flammable gases, vapors or dusts. MT8071iE is certified in accordance with
ATEX zone 2/22 categories 3 G/D. The unit has to be installed in an
Environmental
additional enclosure ensuring a minimal protection level for 3G/D
equipment. The enclosure equipped with the unit has to be certified and
Considerations
shouldn't be opened when an explosive atmosphere is present.
(3) Do not install the unit where acid gas, such as SO2 exists.
(4)
This device should be mounted in the vertical position and for use on the flat
surface enclosure.
(5)
Conform to UL508 (ISBN 0-7629-0404-6) machine safety for use in
Pollution Degree 2 Environment.

Unpacking the Unit

2
Unpack and check the delivery. If damage is found,
notify the supplier.
(1)
(2)
(3)
(5)
(4)
(6)
Installation Instruction
NOTE:
Place the operator panel on a stable
surface during installation. Dropping it or
letting it fall may cause damage.
(1) Installation Instruction, 2-sided A4 *1
(2) Human Machine Interface *1
(3) Power Connector *1
(4) Brackets & Screws *1 pack
(5) USB Stick Clamp & Tying Strap *1
(6) Fuse 1.25A/250V 5*20mm *1

Installation Instructions

3
Secure the operator panel in position, using all the fastening holes and the provided brackets
and screws. Screw Torque: 2.6 ~ 3.9 lbf.in. (For reaching waterproof effect and preventing the panel
from being deformed.)
(A)
Cutout
(B)
Type
A(mm)
B(mm)
192
138
HMIVT8071iE

USB Stick Clamp Usage

Combining the USB Stick with the clamp and the tying strap can prevent USB stick from disconnecting
with HMI when strong vibration is present.
1. Insert the USB connector to the clamp and tie them together with the tying strap.
2. Press the spring and insert the USB stick into HMI.

Power Connections

4
NOTE:
1. Connect positive DC line to the '+' terminal
and the DC ground to the '-' terminal.
2. When using a USB cable to download
project file, please do not connect HMI with
PLC and PC simultaneously to prevent
potential difference from destroying USB
ports of HMI and PC.
