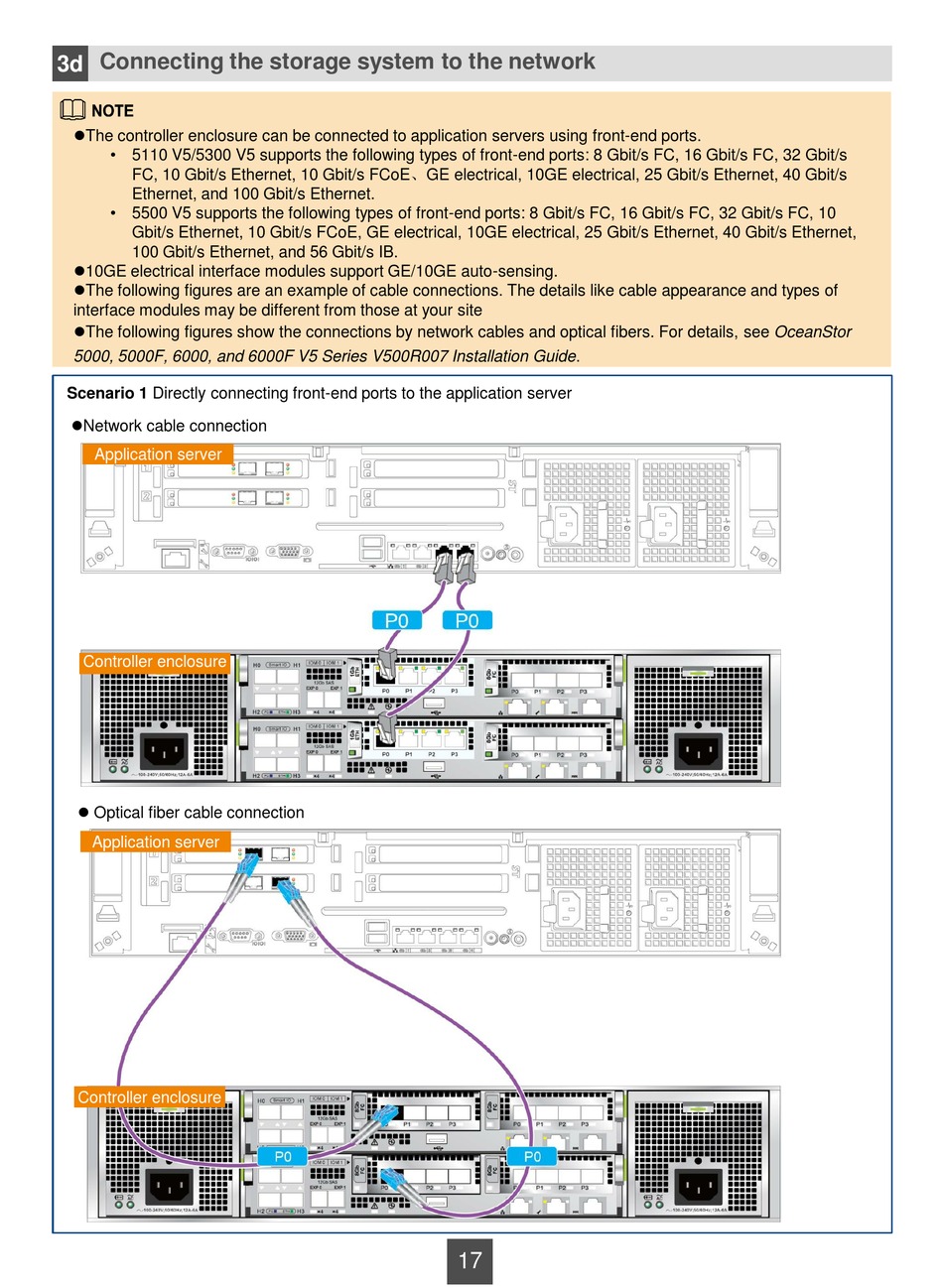

Connecting the storage system to the network
3d
The controller enclosure can be connected to application servers using front-end ports.
• 5110 V5/5300 V5 supports the following types of front-end ports: 8 Gbit/s FC, 16 Gbit/s FC, 32 Gbit/s
FC, 10 Gbit/s Ethernet, 10 Gbit/s FCoE、GE electrical, 10GE electrical, 25 Gbit/s Ethernet, 40 Gbit/s
Ethernet, and 100 Gbit/s Ethernet.
• 5500 V5 supports the following types of front-end ports: 8 Gbit/s FC, 16 Gbit/s FC, 32 Gbit/s FC, 10
Gbit/s Ethernet, 10 Gbit/s FCoE, GE electrical, 10GE electrical, 25 Gbit/s Ethernet, 40 Gbit/s Ethernet,
100 Gbit/s Ethernet, and 56 Gbit/s IB.
10GE electrical interface modules support GE/10GE auto-sensing.
The following figures are an example of cable connections. The details like cable appearance and types of
interface modules may be different from those at your site
The following figures show the connections by network cables and optical fibers. For details, see OceanStor
5000, 5000F, 6000, and 6000F V5 Series V500R007 Installation Guide.
Scenario 1 Directly connecting front-end ports to the application server
Network cable connection
Application server
Controller enclosure
 Optical fiber cable connection
Application server
Controller enclosure
