OPERATION MANUAL

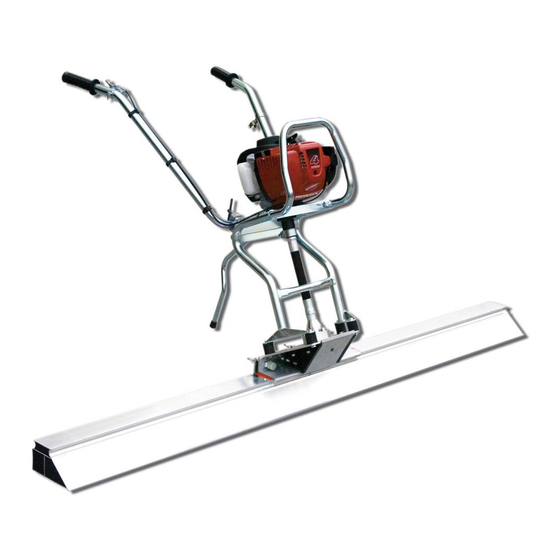

MODEL DSGPULW
DUOSCREED LIGHTWEIGHT
(HONDA GX35SAT GASOLINE ENGINE)
Revision #8 (06/12/23)
To find the latest revision of this publication or
associated parts manual, visit our website at:
www.multiquip.com
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSGPULW and is the answer not in the manual?

Questions and answers

Related Manuals for MULTIQUIP DSGPULW

Summary of Contents for MULTIQUIP DSGPULW

  • Page 1 OPERATION MANUAL MODEL DSGPULW DUOSCREED LIGHTWEIGHT (HONDA GX35SAT GASOLINE ENGINE) Revision #8 (06/12/23) To find the latest revision of this publication or associated parts manual, visit our website at: www.multiquip.com THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

  • Page 2: Proposition 65 Warning

    PROPOSITION 65 WARNING PAGE 2 — DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23)

  • Page 3: Silicosis Warning

    NIOSH/MSHA for the materials being used. DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23) — PAGE 3...

  • Page 4: Table Of Contents

    Assembly Instructions ........15-17 Starting ..............18 Application/Operation ........19-22 Maintenance ............24 Troubleshooting (Duoscreed) ........ 25 Troubleshooting (Engine) ........26 NOTICE Specifications are subject to change without notice. PAGE 4 — DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23)

  • Page 5: Safety Information

    COULD result in DEATH or SERIOUS INJURY. CAUTION Indicates a hazardous situation which, if not avoided, COULD result in MINOR or MODERATE INJURY. NOTICE Addresses practices not related to personal injury. DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23) — PAGE 5...
  • Page 6 The screed should be stored in a clean, dry location „ ALWAYS know the location of the nearest out of the reach of children and unauthorized personnel. fi rst aid kit. PAGE 6 — DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23)
  • Page 7 Fire or explosion could result in speed ranges above the maximum from fuel vapors or if fuel is spilled on a allowable. hot engine. DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23) — PAGE 7...
  • Page 8 „ DO NOT lift machine to unnecessary heights. „ ALWAYS tie down equipment during transport by securing the equipment with rope or strap. PAGE 8 — DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23)
  • Page 9 The label must remain with the engine for its entire life. If a replacement emission label is needed, please contact your authorized engine distributor. DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23) — PAGE 9...

  • Page 10: Safety Decals

    Figure 1. Keep these safety decals clean at all times. When the safety decals become worn or damaged, contact your nearest dealer or the Multiquip Parts Department. Figure 1. Operation and Safety Decals PAGE 10 — DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23)
  • Page 11 172 gal./(.65 liters) Fuel Tank Capacity 0.024-0.028 inch (0.60-0.70 mm) Spark Plug Gap CMR5H (NGK) Spark Plug Type Recoil Start Starting Method 7.34 lbs. (3.33 kg) Weight (Dry) DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23) — PAGE 11...

  • Page 12: General Information

    DuoScreed features adjustable eccentric weights. NOTICE Some blade widths may not be available. Please contact MQ unit sales for available blades. PAGE 12 — DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23)

  • Page 13: Duoscreed Components

    11. Flexible Drive Shaft – Connected to the drive shaft topics of the engine, provides the vibrational force for the eccentric weights. DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23) — PAGE 13...

  • Page 14: Engine Components

    6. Oil Filler Cap – Remove this cap to add engine oil. fuel mixture for starting a cold engine. Engine oil capacity is 0.11 quart (0.1 liters). Use SAE 10W-30. PAGE 14 — DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23)

  • Page 15: Assembly Instructions

    (Figure 4) that can either be tighten or loosened by hand. Figure 4. Blade Quick Disconnect System DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23) — PAGE 15...
  • Page 16 10. The DuoScreed is now ready for operational use. Figure 6. Handle Bar Adjustment Knob PAGE 16 — DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23)
  • Page 17 3. Use the chart in Figure 8 to determine what position your eccentric weights should be in (position 1, 2 or 3). Figure 7. Eccentric Weight Location Figure 8. Eccentric Weight Positions DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23) — PAGE 17...

  • Page 18: Starting

    OPEN position. Figure 14. Engine Starter Rope 5. Once the engine has started, allow it to idle for 3 to 5 minutes. Figure 11. Choke Lever PAGE 18 — DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23)

  • Page 19: Application/Operation

    Remember, before any concrete is to be poured, make sure that the top of the pins are dead on grade. Figure 15. DuoScreed On Forms and Grade Pins DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23) — PAGE 19...
  • Page 20 12-18 inches wide. PAGE 20 — DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23)
  • Page 21 BUILD 18 INCH WIDE PARALLEL CONCRETE BASES ACROSS GRADE PINS FROM TOP TO BOTTOM OF GRID. ACROSS GRADE PINS FROM TOP TO BOTTOM OF GRID. Figure 17. DuoScreed Wet Screeding Application DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23) — PAGE 21...
  • Page 22 „ When screeding using forms or rails, always size your screed blade appropriately for the job. It is best to have the blade extend beyond the forms, by about 6-inches on each side. PAGE 22 — DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23)
  • Page 23 (2) These items should be serviced by your service dealer, unless you have the proper tools and are mechanically proficient. Refer to the HONDA Shop Manual for service procedures. (3) For commercial use, log hours of operation to determine proper maintenance intervals. DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23) — PAGE 23...

  • Page 24: Maintenance

    Figure 18. Air Cleaner Figure 20. Spark Plug Gap 6. Carefully install the spark plug by hand to avoid cross threading, then tighten. 7. Attach spark plug cap. PAGE 24 — DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23)

  • Page 25: Troubleshooting (Duoscreed)

    Each end of the blade must ride on the same Blade digs into wet concrete. Is blade positioned correctly? surface. Either each end of the blade rides on forms or concrete (wet screed) not both. DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23) — PAGE 25...

  • Page 26: Troubleshooting (Engine)

    Replace fuel filter. No fuel present inside priming bulb. Fuel tank cap breather hole clogged? Clean or replace fuel tank cap. Air in fuel line? Bleed fuel line. PAGE 26 — DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23)
  • Page 27 NOTES DSGPULW DUOSCREED • OPERATION MANUAL — REV. #8 (06/12/23) — PAGE 27...
  • Page 28 © COPYRIGHT 2023, MULTIQUIP INC. Multiquip Inc , the MQ logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks are the property of their respective owners and used with permission.
