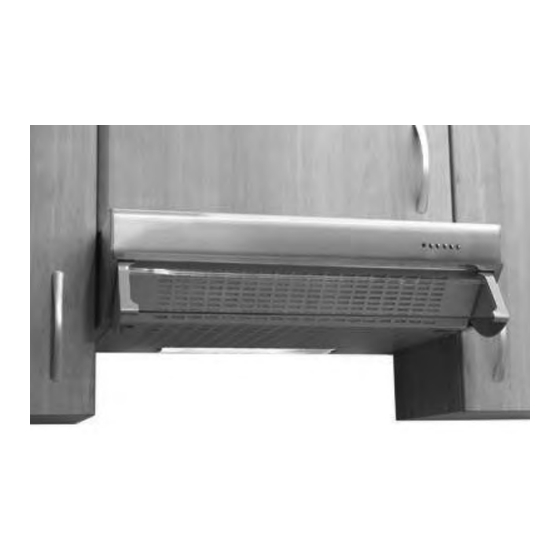

Summary of Contents for Cata VH60SSW

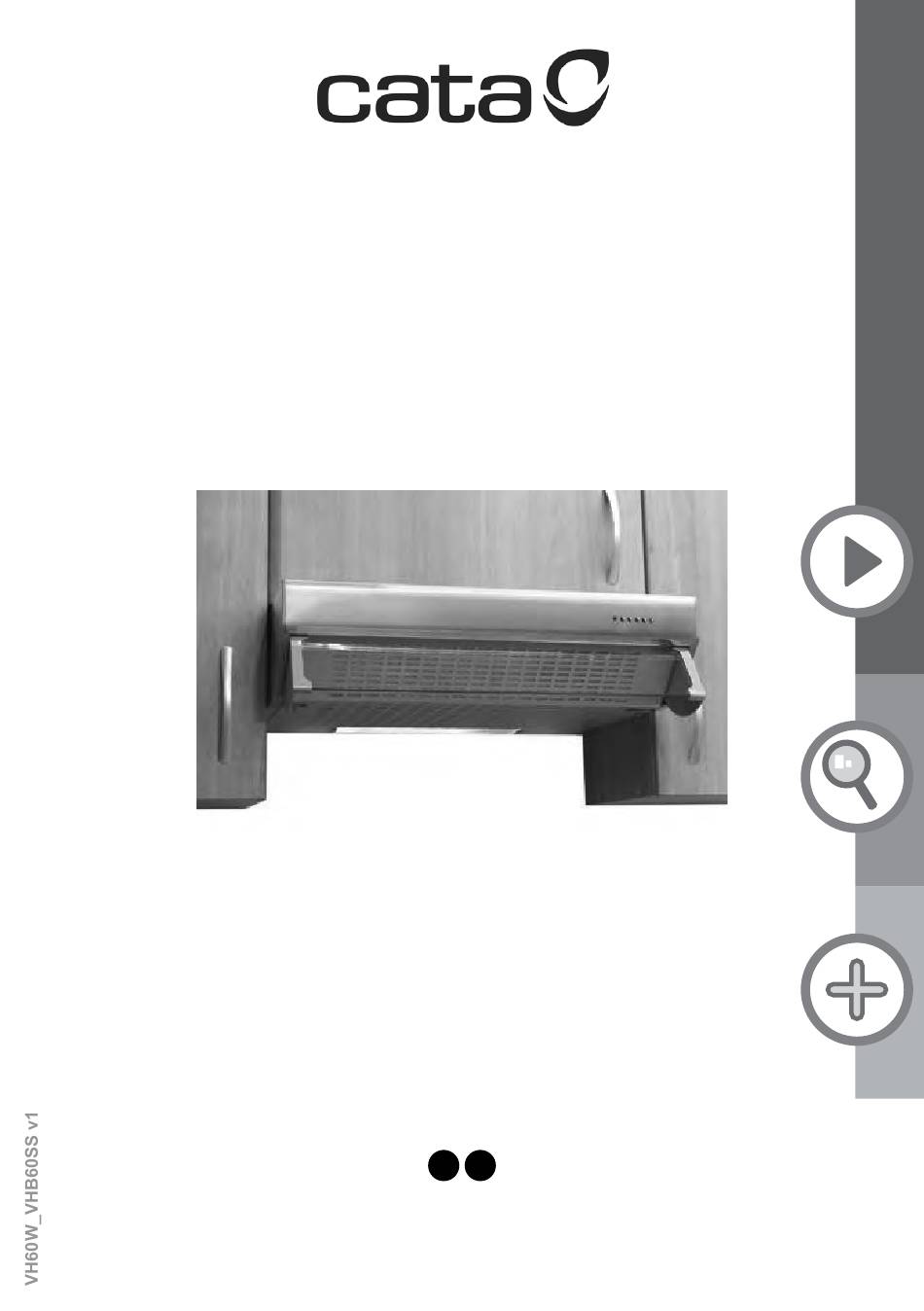

- Page 1 VHB60SS VH60SSW Barcode 8422248032186 / 8422248024020...
- Page 2 [01] x 1 [02] x 1 [03] x 1 [04] [05] x 1 [6] x 2 (3x 12mm)
- Page 3 VHB60SS VH60SSW Visor Hood Hotte Tiroir Installation Installation...
-
Page 4: Table Of Contents
Let's get started... started... Getting Before you start Safety more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity Appendix Installation... -
Page 5: Getting Started
Getting Started... Before you start Safety... -
Page 6: Before You Start
Before you start Before you start To avoid the risks that are always present when you use an electrical appliance it is important that this cooker hood is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. Please keep this instruction booklet for future reference and pass it on to any future owners. - Page 7 Before you start Tools required Ø6mm Accessories not supplied Recirculation Extraction CARBFILT1 (UK & IE) Ø120m VENT PACK 2 (UK & IE ) OR CARBFILT1CL (FR) 3.9 x 32 mm SELF ADHESIVE Short Screw for cabinet ALUMINIUM TAPE Wall Plug Ø6mm CARBON FILTER ORDERING HOTLINE 0844 800 1128 (UK) 1 800 535542 (IE)
- Page 8 Safety These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried out by a competent person or qualified electrician. • This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer’s instructions.
- Page 9 Safety We also recommend that great care be taken during use and cleaning. Read the cleaning and maintenance sections for this appliance carefully. A steam cleaner is not to be used. The appliance is not intended to be operated by means of external timer or separated remote-control system.
-
Page 10: In More Detail
more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity... -
Page 11: Product Functions
Product Functions Product functions This appliance extracts the air of the kitchen to remove the odours and keep an optimum level of the air quality inside the room, it also allows you to illuminate the cooking area. Operation Operation • Switch on the appliance at the switched fused connection unit. The appliance is ready for operation functions. -
Page 12: Care And Maintenance
Care and maintenance Care and maintenance Warning: always switch off the electricity supply before carrying out maintenance work on the hood. In the event of a fault, contact customer services. Bulb replacement FUSE 10’ The Bulb may be hot, leave it 10 minutes before removing.. Push the clips (1) inwards and release the metal filter &... - Page 13 Care and maintenance Warning Always switch off the electricity supply before performing maintenance work. In the event of a fault, FUSE contact customer services. Metal filter maintenance: Use non-corrosive, liquid detergent and avoid the use of abrasive cleaning products. 1 MONTH MAX.65˚C Aluminium filters: to avoid fires, clean thoroughly once a month or whenever the display pilot light (if fitted) indicates as such.
-
Page 14: Troubleshooting
Troubleshooting Troubleshooting Fault Cause Solution Excessive The Appliance is not hung Take down the appliance Vibration properly on the brackets. and check it is properly fixed. The fan blade is damaged. Switch off the appliance. Repair to be carried out by The fan motor is not fixed qualified service personnel tightly. -
Page 15: Recycling And Disposal
Recycling and disposal Recycling and disposal Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. - Page 16 Technical and legal information All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood. WARNING : THIS APPLIANCE MUST NOT BE EARTHED.
- Page 17 Technical and legal information Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. Regulations and local electricity company regulations. For your own safety a qualified electrician or contractor who is on the roll of the National Inspection Council for Electrical Installation Contracting (NICEIC) should undertake the electrical installation.
-
Page 18: Guarantee
Guarantee Manufacturer's Guarantee This appliance is covered by a full manufacturer’s 24 month parts and labour guarantee and covers all parts and labour costs associated with the repair of the appliance in a domestic environment. We will repair any defect that arises due to faulty materials or workmanship and use genuine manufacturers parts. - Page 19 Guarantee Exclusions to the guarantee (continued) Claims arising from non-domestic use or commercial environment. Any gas appliance not fitted by a gas safe qualified installer. If no fault is found then GAA reserves the right to charge for the call out at the going rate of £55.00 plus VAT.
-
Page 20: Ce Declaration Of Conformity
CE Declaration of conformity CE Declaration of conformity MANUFACTURER : CATA C/Ter N°2, Torelló 08570 – Barcelona (Spain) ADRESS We hereby certify that the mentioned accessory complies with the essential requirements of the European Directives applicable, including their modifications and the corresponding transpositions from the national law. - Page 21 Appendix... Installation...
- Page 22 Installation Installation CARBFIL CARBFILT1CL (UK & IE) VENT PACK 2 (UK & IE) You can choose two types of installation: - Extraction option - Recirculation option...
- Page 23 DIM.B DIM.B MIN.750mm Gas /Gaz MIN 650mm Electric / Electrique Mark on the kitchen wall the holes to fix the cooker hood. Ensure wall plugs (not supplied) used are suitable for wall type.
- Page 24 [05] x 1 MOUNTING OF THE HOOD TO THE WALL (without cupboard above) In this situation the hood should only be used for recirculation purposes only Drill 4 holes corresponding to the diagram on page 23 Insert wall plugs. Insert correct length screw leaving the head protruding 2mm...
- Page 25 Position hood over 2 wall screws, and use keyhole slots on adjustment bracket to support the weight. Remove the grill Push the clips (1) inwards and release the metal filter & cover (2).
- Page 26 Whilst holding the hood, and tighten inside screws Tighten outer screws...
- Page 27 Clip the grill back in place...
- Page 28 [02] MOUNTING THE HOOD UNDERNEATH A CUPBOARD Both extraction and recirculation options can be used EXTRACTION Cut a hole in the cupboard base to suit the position of the exhaust vent in the visor hood and size to suit the vent kit being used. Connect collar [02] this is used to connect to vent kit.
- Page 29 Notes...
- Page 30 Notes...
- Page 31 Notes...
- Page 32 CNA Trading U.K. Ltd Hillbrow House Hillbrow Road Esher Surrey KT10 9NW...
