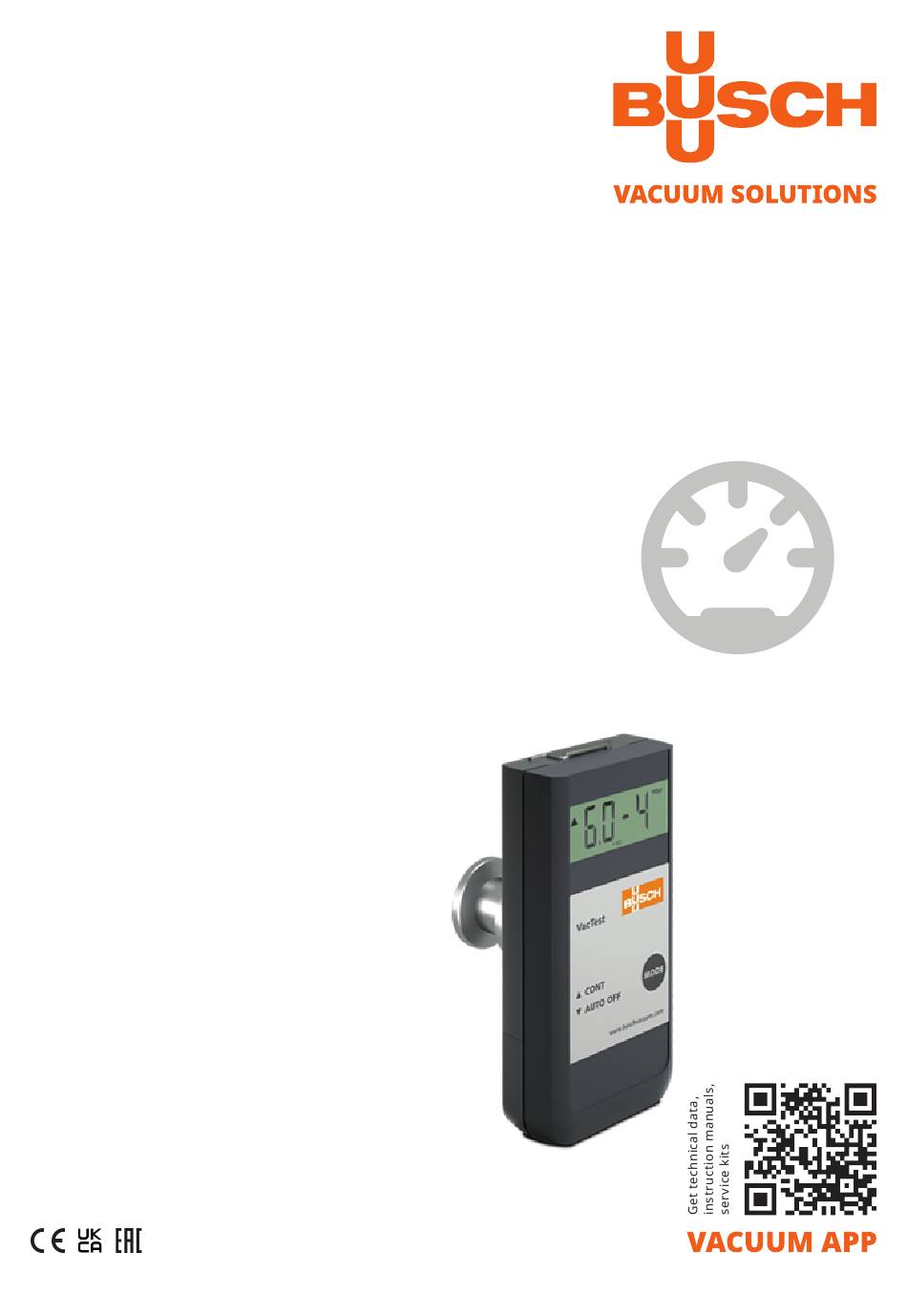

- Page 1 Instruction Manual VACTEST Vacuum Measurement Equipment Mobile Gauge TPP 900 0870204864/-0001_en / Original instructions / Modifications reserved 16/09/2021...
-
Page 2: Table Of Contents
Table of Contents Table of Contents 1 Safety ............................3 2 Product Description ........................4 2.1 Interface Illustration ......................4 2.2 Product Identification ....................... 4 2.3 Delivery Content ......................4 2.4 Proper Use ........................5 2.5 Improper Use ........................5 3 Transport and Storage.......................5 4 Installation..........................5 4.1 Installation Conditions ...................... -
Page 3: Safety
Safety | 1 Safety • Read and follow the instructions of this manual. • Inform yourself regarding hazards, which can be caused by the product or arise in your system. • Comply with all safety instructions and regulations for accident prevention. •... -
Page 4: Product Description

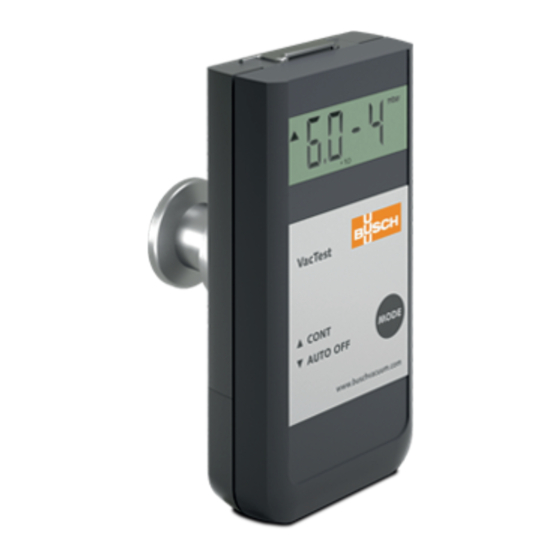

2 | Product Description Product Description The mobile gauge TPP 900 consists of combined Piezoresistive and Pirani sensors whose measurement principles are based respectively on the change of resistance of a strain gauge resulting from the diaphragm deflection and the thermal conductivity of gases. The Piezoresistive sensor provides direct measurements which are independent on the gas nature while the Pirani sensor uses an indirect measurement method, dependent on the gas nature, see Adjust Gas Correction Factor [► 15]. -
Page 5: Proper Use
Transport and Storage | 3 2.4 Proper Use The TPP 900 serves exclusively to measure total pressure in a range of: – 1200 … 5 x 10 mbar. 2.5 Improper Use The use for purposes not mentioned above is regarded as improper, especially: –... -
Page 6: Vacuum Connection
4 | Installation 4.2 Vacuum Connection CAUTION Unintended opening of clamp with an overpressure in the vacuum system over 1000 mbar. Risk to injury! Damage to your health! • Parts may fly around. • Unsecured hose connections can release process media. CAUTION Overpressure in the vacuum system over 1500 mbar Damage to your health! -
Page 7: Electrical Connection
Installation | 4 4.3 Electrical Connection 4.3.1 Battery Operation Before operating the gauge a suitable battery or rechargeable battery must be inserted. • Pull the battery cover on the back of the unit downwards and insert the battery • Close the cover again by pushing it upwards until it snaps into position. Battery types: –... -
Page 8: Usb Interface
4 | Installation 1 = Jack plug 2.5 mm ; 12 … 15 VCD 2 = AGND NOTE The battery can be left in the gauge when the external power supply is used. A re- chargeable battery will not be loaded but can remain in the gauge. 4.4 USB Interface The USB port can be connected to a PC via VacTest explorer to read out stored measure- ment data, transmit measurement values or configure the gauge. -
Page 9: Operation
Operation | 5 Operation NOTICE Aggressive media such as fluorides, halogenides, carbon, oxygen plasma and all other corrosive media. Reduce sensor life-time! • Furthermore, dust, oil or condensing vapours will affect sensor performance and may cause malfunction. 5.1 Before Operation Dependence On Gas Type The measured pressure will depend on composition and type of gas. -
Page 10: Data Recording
5 | Operation 5.3 Data Recording To operate the gauge as a pressure display with data recorder functionality, activate the recording function as described below. Activate the data recording and configure the storage interval In order to configure the storage interval, the gauge’s configuration mode must be acti- vated. - Page 11 Operation | 5 Stored Maximum Pressure • Press “Mode” key until “Hi” is displayed. MODE After two seconds the stored maximum mbar pressure is displayed 2sec Without further keystroke the gauge is switched into "Auto-Off" mode after 5 seconds. Stored Minimum Pressure •...
-
Page 12: Adjustment
5 | Operation 5.4 Adjustment The gauge is factory calibrated in upright position. Other orientations, different climatic conditions, extreme temperature changes, ageing or contamination may necessitate re- adjustment. NOTE Conduct adjustment at the same ambient temperature at which the device is typically operated. - Page 13 Operation | 5 Adjustment to Zero Pressure NOTE For adjustment on zero pressure the current pressure inside the sensor has to be less than 1 x 10 mbar. The pressure reading must be less than 4 x 10 mbar, otherwise adjustment is denied and the error message "Err"...
-
Page 14: Pressure Units
5 | Operation 5.5 Pressure Units In order to change the pressure units, the gauge’s configuration mode must be activated. Starting condition: the gauge is switched off. • Hold the “Mode” key pressed for approx. 5 seconds, until the display shows ‘’rAtE’’. MODE 5sec •... -
Page 15: Adjust Gas Correction Factor
Operation | 5 5.7 Adjust Gas Correction Factor In order to change the gas correction factor, the gauge’s configuration mode must be activated. It can also be done via the VacTest explorer software. Starting condition: the gauge is switched off. •... -
Page 16: Communication
After the USB cable is disconnected the gauge switches into “Auto-Off” mode. 6.2 VacTest Explorer Software VacTest explorer software has been especially developed for use with Busch vacuum gauges and is available for Windows and Android operating systems. VacTest explorer features plotting and saving of measurement data as well as a comfort- able way of configuring all device parameters. -
Page 17: Maintenance And Service
0671 204 565 Software VacTest explorer - Pro version (1 license) 0870 203 191 This is only part of the available accessories, check on Busch's website or contact your Busch represen- tative for more information. Instruction Manual VACTEST TPP900_EN_en 17 / 24... -
Page 18: Technical Data
10 | Technical Data 10 Technical Data VacTest TPP 900 Measurement principle Piezoresistive / Pirani Materials exposed to vacuum Stainless steel 1.4307, nickel, gold, tungsten, glass, FKM Filament material Tungsten Measuring range mbar 1200 … 5 x 10 torr 900 … 3.75 x 10 Overpressure limit bar abs. -
Page 19: Gas Correction Factor
Technical Data | 10 10.1 Gas Correction Factor Value range ► 0.20 … 8.0 Correction factor for Pirani sensor: Ar ► 1.6 ► 0.89 He ► 1.0 Ne ► 1.4 CO ► 1.0 ► 0.57 ► 1.0 Kr ► 2.4 Instruction Manual VACTEST TPP900_EN_en 19 / 24... -
Page 20: Eu Declaration Of Conformity
11 EU Declaration of Conformity This Declaration of Conformity and the CE-mark affixed to the nameplate are valid for the gauge within the Busch scope of delivery. This Declaration of Conformity is issued under the sole responsibility of the manufacturer. - Page 21 Note...
