Safety | 1 Safety • Read and follow the instructions of this manual. • Inform yourself regarding hazards, which can be caused by the product or arise in your system. • Comply with all safety instructions and regulations for accident prevention. •...

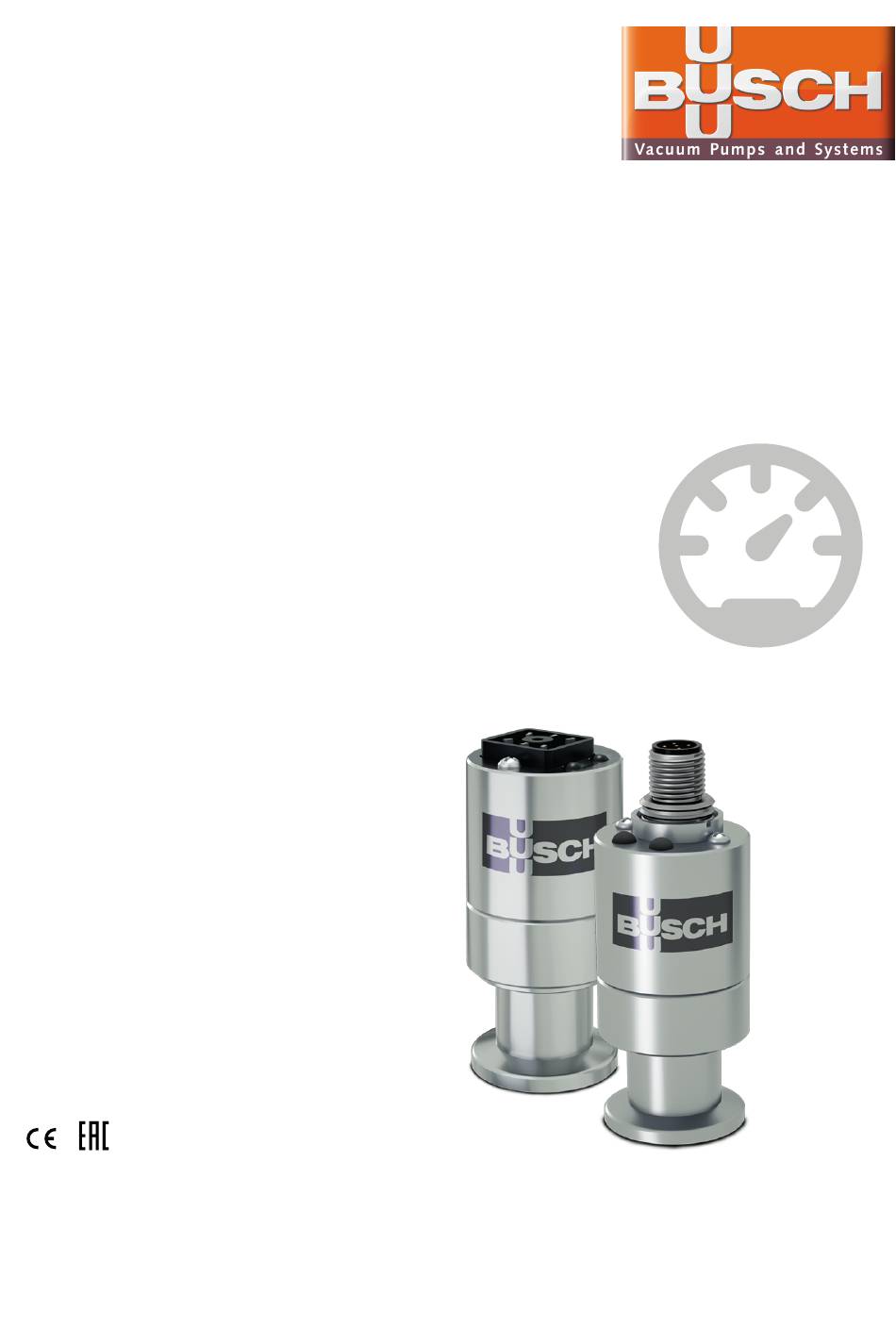

2 | Product Description Product Description The analog transmitters GRP 100 and GRP 200 are piezoresistive vacuum gauges provid- ing gas type independent pressure measurements. Equipped with a robust sensor made of aluminium oxide ceramic, this device combines high reliability and resistance to contamination. 2.1 Product Identification The product model can be found on the product's nameplate.
Installation | 4 • In rooms with moist or aggressive atmospheres, the device must be airproof shrink- wrapped in a plastic bag together with a bag a desiccant. Installation CAUTION Unauthorized modifications. Risk to injury! • Modifications or conversions of the gauge are not allowed. 4.1 Installation Conditions •...
Page 6
4 | Installation • Make sure that the sensor flange is connected to the ground. Mounting position: The installation position can be freely selected. The preferred position is a horizontal to vertical position so that condensate and particles do not penetrate the measurement chamber.
Installation | 4 4.3 Electrical Connection NOTICE Establish a connection using a live cable. Risk of damage to the device! • Only connect cables when de-energised. 4.3.1 Connecting to the Active Sensor Controller For operation of the gauge with controller, a suitable measurement connection cable must be used (see accessories).
5 | Operation NOTE "Ground" (Pin 6) and supply common (Pin 5) must always be grounded. For GRP 200: Connector: Type M12 A, 5-pin, male Pin no. Description Pin no. Description N/A (do not connect) Output 4 … 20 mA Power Supply: +9 to +30 VDC N/A (do not connect) Ground...
Operation | 5 NOTE Conduct adjustment at the same ambient temperature at which the device is typically operated. NOTE For zero adjustment actual pressure should be less than 0.1 mbar. NOTE To achieve optimum results of the adjustment we recommend to consider a warm-up of at least 5 minutes at the appropriate calibration pressure before any adjustment.
6 | Maintenance and Service GRP 200: Adj Up Adj Down • Remove the rubber caps above the “Adj” pushbuttons. • Press the button “up” to increase the output signal or the button “down” to decrease the output signal by means of a small screwdriver or similar tool. If no further button is pressed after 5 s, the adjusted voltage or current is set.
10 EU Declaration of Conformity This Declaration of Conformity and the CE-mark affixed to the nameplate are valid for the gauge within the Busch scope of delivery. This Declaration of Conformity is issued under the sole responsibility of the manufacturer.
