- Page 1 Instruction Manual VACTEST Vacuum Measurement Equipment AnalogTransmitter GCD 200 0870205300/-0001_en / Original instructions / Modifications reserved 16/09/2021...
-
Page 2: Table Of Contents
Table of Contents Table of Contents 1 Safety ............................3 2 Product Description ........................4 2.1 Product Identification ....................... 4 2.2 Delivery Content ......................4 2.3 Proper Use ........................4 2.4 Improper Use ........................4 3 Transport and Storage.......................4 4 Installation..........................5 4.1 Installation Conditions ...................... 5 4.2 Vacuum Connection...................... -
Page 3: Safety
Safety | 1 Safety • Read and follow the instructions of this manual. • Inform yourself regarding hazards, which can be caused by the product or arise in your system. • Comply with all safety instructions and regulations for accident prevention. •... -
Page 4: Product Description

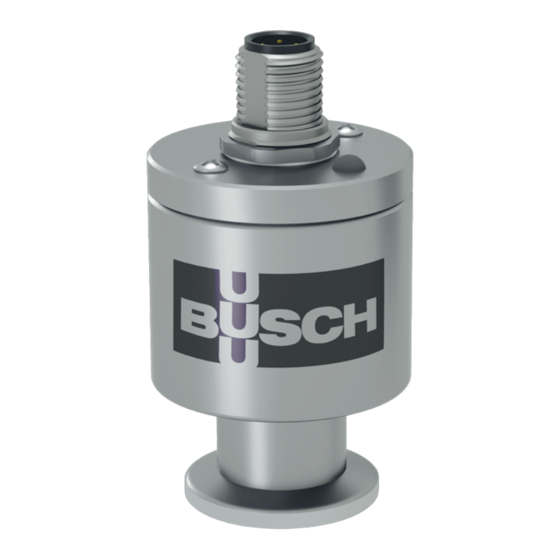

2 | Product Description Product Description The analog transmitter GCD 200 is a capacitive vacuum gauge providing accurate and gas type independent pressure measurements. Equipped with a robust sensor made of aluminium oxide ceramic, this device combines high reliability and resistance to contamination. 2.1 Product Identification The product model can be found on the product's nameplate. -
Page 5: Installation
Installation | 4 Installation CAUTION Unauthorized modifications. Risk to injury! • Modifications or conversions of the gauge are not allowed. 4.1 Installation Conditions • Make sure that the environment of the device is not potentially explosive. • Make sure that the ambient conditions comply with the Technical Data [► 10]. 4.2 Vacuum Connection CAUTION Unintended opening of clamp with an overpressure in the vacuum system over 1000... - Page 6 4 | Installation • Remove the protective cover (is required again during maintenance work!). • Connect the flange to the system. Connection size: – ISO KF 16 – G1/4 (female) • Make sure that the sensor flange is connected to the ground. Mounting position: The installation position can be freely selected.
-
Page 7: Electrical Connection
Installation | 4 4.3 Electrical Connection NOTICE Establish a connection using a live cable. Risk of damage to the device! • Only connect cables when de-energised. 4.3.1 I/O and Communication Port Schematic Connector: Type M12 A, 5-pin, male Pin no. Description Pin no. -
Page 8: Operation
5 | Operation Operation 5.1 Readjustment The gauge is factory calibrated in upright position. Other orientations, different climatic conditions, extreme temperature changes, ageing or contamination may necessitate re- adjustment. NOTE Conduct adjustment at the same ambient temperature at which the device is typically operated. -
Page 9: Maintenance And Service
Maintenance and Service | 6 Maintenance and Service WARNING Units contaminated with hazardous material. Risk of poisoning! Risk of infection! If the unit is contaminated with hazardous material: • Wear appropriate personal protective equipment. The device requires no maintenance. External dirt and soiling can be removed by a damp cloth. -
Page 10: Technical Data
9 | Technical Data Technical Data VacTest GCD 200 Measurement principle Capacitive Materials exposed to vacuum Stainless steel 1.4305, Al ceramic, FKM Measuring range mbar 200 … 0.1 torr 150 … 0.075 Overpressure limit bar abs. Measurement uncertainty % full scale <... -
Page 11: Eu Declaration Of Conformity
10 EU Declaration of Conformity This Declaration of Conformity and the CE-mark affixed to the nameplate are valid for the gauge within the Busch scope of delivery. This Declaration of Conformity is issued under the sole responsibility of the manufacturer. - Page 12 Busch Vacuum Solutions We shape vacuum for you. Argentina Denmark Malaysia South Africa info@busch.com.ar info@busch.dk busch@busch.com.my info@busch.co.za Australia Finland Mexico Spain sales@busch.com.au info@busch.fi info@busch.com.mx contacto@buschiberica.es Austria France Netherlands Sweden busch@busch.at busch@busch.fr info@busch.nl info@busch.se Bangladesh Germany New Zealand Switzerland sales@busch.com.bd info@busch.de sales@busch.co.nz...
