Operation/Repair/Parts

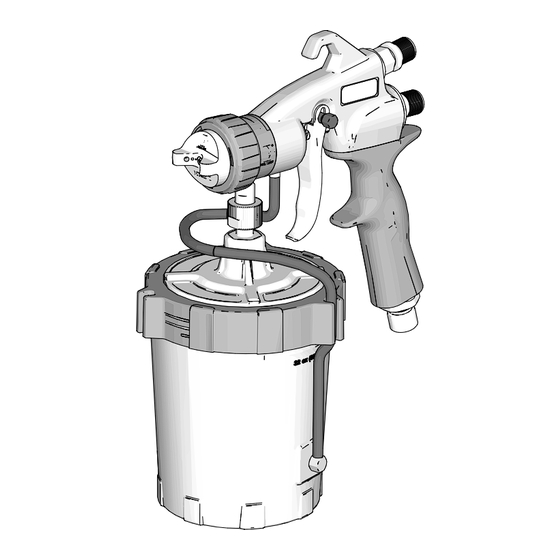

HVLP EDGE II
For the application of architectural paints and coatings. The HVLP Edge II Gun is not
intended to be used on an external compressor. For professional use only.
Models: 17P481, 17P483, 17P484, 17P653, 17P654
10 psi (0.07 MPa, 0.7 bar) Maximum Air Working Pressure
50 psi (0.35 MPa, 3.5 bar) Maximum Fluid Working Pressure
Important Safety Instructions
Read all warnings and instructions in this manual and your sprayer instruction
manual. Be familiar with the controls and the proper usage of the equipment.
Save these instructions.
Related Manuals:
3A4967
Graco FinishPro
HVLP Sprayer
www.graco.com/techsupport
™
/EDGE II Plus Gun
ti30935a
3A4980B
EN
Advertisement
Table of Contents
Related Manuals for Graco HVLP EDGE II/EDGE II Plus Gun
Summary of Contents for Graco HVLP EDGE II/EDGE II Plus Gun
- Page 1 Important Safety Instructions Read all warnings and instructions in this manual and your sprayer instruction manual. Be familiar with the controls and the proper usage of the equipment. Save these instructions. Related Manuals: 3A4967 Graco FinishPro HVLP Sprayer ti30935a www.graco.com/techsupport...
-
Page 2: Troubleshooting
Troubleshooting Troubleshooting Problem Cause Solution • Orange peel finish - Paint Paint droplets too large Adjust fluid control knob on surface not smooth gun to reduce fluid. • Spray further from work piece. • Keep turbine air filters clean to allow full air flow. •... - Page 3 Troubleshooting Problem Cause Solution • Solvent pops or bubbles Sprayed surface drying before Apply fluid in lighter coats to solvent gas can be released allow for proper evaporation. • Use the recommended thinners. • Follow the solutions for Orange Peel Finish, Paint Droplets Too Large in this Troubleshooting Table.
- Page 4 Sprayer does not Leaking air hose connections Verify air hose and attached automatically shut-off while components are those shipped with in SmartStart setting (Graco the sprayer. Finish HVLP ProContractor Disconnect air hoses. Verify o-ring is and ProComp models only) present inside connection fitting at turbine end of hose.
- Page 5 Troubleshooting Problem Cause Solution FlexLiner System: FlexLiner does not collapse Dirty sealing surfaces Remove ring, clean sealing surfaces, or collapses slowly securely install ring. See Fill FlexLiner System, page 12. Incorrect or no air cap installed Verify Edge II air cap is installed. on gun Air cap is loose Edge II: Verify retaining ring is fully...
- Page 6 Parts Parts EDGE II Ref. Torque 60-80 in-lb (6.8 - 9.0 N•m) 140-150 in-lb (15.8 - 16.9 N•m) ti30995a 20-30 in-lb (2.3 - 3.4 N•m) Apply adhesive, Ref. 50 3A4980B...
- Page 7 Parts List - EDGE II Parts List - EDGE II Ref Part Description Ref Part Description 14 280545 PIN, slide, trigger, 256858 BODY, gun w/ball 188493 PACKING, u-cup, 15 15V848 NUT, slide, trigger, 17P715 HOUSING, nozzle 16 17S237 VALVE, fluid 192348 NUT, head 256960 KIT, packing (includes 17)
- Page 8 Parts Parts EDGE II Plus ref 49 Ref. Torque 60-80 in-lb (6.8 - 9.0 N•m) 140-150 in-lb (15.8 - 16.9 N•m) ti30996a 20-30 in-lb (2.3 - 3.4 N•m) Apply adhesive, Ref. 50 3A4980B...
-
Page 9: Parts List
Parts List - EDGE II Plus Parts List - EDGE II Plus Ref Part Description Ref Part Description 15 15V848 NUT, slide, trigger, 17H061 BODY, gun 188493 PACKING, u-cup, 16 17P718 VALVE, fluid (includes 17, 18) 17P716 HOUSING, nozzle 17 17S202 LABEL, fluid 17P563 GUIDE, air cap, 18 110073 O-RING assembly... - Page 10 Parts Parts FlexLiner System & Siphon Cup Assembly FLEXLINER SYSTEM SIPHON CUP ASSEMBLY ti30998a 3A4980B...
- Page 11 Parts List Parts List FlexLiner System Siphon Cup Assembly Ref Part Description Ref Part Description 33 17R462 KIT, FlexLiner Sys- 21 196468 FITTING, adapter 22 244130 CUP, 1qt, under tem (includes 34, 35, (includes 22a, 22b, 36, 37, 39, 40, 42) 35 17P222 COVER 22a M70424 CUP, gasket 36 17P237 RING...
-
Page 12: Technical Specifications
Technical Specifications Technical Specifications EDGE II / EDGE II Plus Metric Sprayer Maximum working air pressure 10 psi 0.07 MPa, 0.7 bar Maximum working fluid pressure 50 psi 0.35 MPa, 3.5 bar Air inlet Quick - disconnect Fluid Inlet FlexLiner System 5/8-16 UN-2A Siphon/Remote Cup 3/8-18 npsm... -
Page 13: Graco Standard Warranty
Graco’s written recommendations. This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non-Graco component parts. -
Page 14: Graco Information
For the latest information about Graco products, visit www.graco.com. For patent information, see www.graco.com/patents. TO PLACE AN ORDER, contact your Graco distributor or call 1-800-690-2894 to identify the nearest distributor. All written and visual data contained in this document reflects the latest product information available at the time of publication.
