  • Page 1 Targa S/P/HP 5 User Guide www.rexton.com...

  • Page 2: Table Of Contents

    Content Welcome    Your hearing instruments    Instrument type    Getting to know your hearing instruments     Components and names    Controls    Settings    Batteries    Battery size and handling tips    Replacing batteries    Daily use    Turning on and off    Inserting and removing the hearing instruments    16 Adjusting the volume    Changing the hearing program    Locking the controls (optional)    Special listening situations    On the phone    Audio induction loops    Audio input (FM system)   ...
  • Page 3 Maintenance and care    Hearing instruments    Ear pieces, earhooks and tubes    Professional maintenance    Further information    Safety information    Symbols used in this document    Troubleshooting    Country-specific information    Service and warranty   ...

  • Page 4: Welcome

    Welcome Thank you for choosing our hearing instruments to  accompany you through everyday life. Like anything new,  it may take you a little time to become familiar with them. This guide, along with support from your Hearing Care  Professional, will help you understand the advantages  and greater quality of life your hearing instruments offer.  To receive the most benefit from your hearing  instruments, it is recommended that you wear them every  day, all day. This will help you get adjusted to them. CAUTION It is important to read this user guide and the safety  manual thoroughly and completely. Follow the  safety information to avoid damage or injury.

  • Page 5: Your Hearing Instruments

    Your hearing instruments This user guide describes optional features that  your hearing instruments may or may not have. Ask your Hearing Care Professional to indicate the  features that are valid for your hearing instruments. Instrument type Your hearing instruments are BTE (Behind-The-Ear)  models. A tube delivers the sound from the hearing  instrument into the ear. The instruments are not intended  for children under the age of 3 years or persons with a  developmental age of under 3 years. Getting to know your hearing instruments It is recommended to familiarize yourself with your new  hearing instruments. With the instruments in your hand  try using the controls and note their location on the  instrument. This will make it easier for you to feel and  press the controls while wearing the hearing instruments.

  • Page 6: Components And Names

    Components and names This user guide describes several types of hearing  instruments. Use the following pictures to identify the type  of hearing instrument that you use. Targa S 5 ➊ ➎ Ear piece (Open Tip) Earhook ➋ ➏ Retention strand  Microphone openings (optional) ➐ Push button (control) ➌ Tube (ThinTube) ➑ Battery compartment  ➍ Adapter for ThinTube (on/off switch)

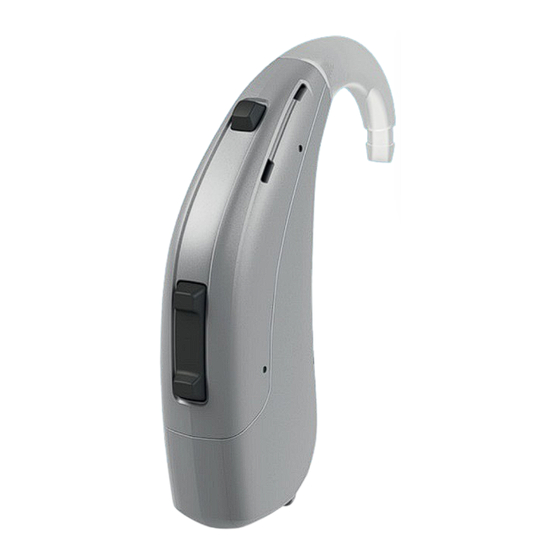

  • Page 7 Targa P 5 Targa HP 5 ➊ ➎ Ear piece Microphone openings ➋ ➏ Adapter for ear piece Push button (control) ➌ ➐ Tube for earhook Rocker switch (control) ➍ ➑ Earhook Battery compartment  (on/off switch)
  • Page 8 Ear pieces and tubes Ear pieces Size Standard ear pieces Open Tip open or closed Open Tip semi-open Open Tip double Custom-made ear pieces Examples: Tubes Length Standard tube (ThinTube) Tube for earhook You can easily exchange the standard ear pieces  and clean the standard tube. Read more in section  "Maintenance and care".

  • Page 9: Controls

    Controls With the controls you can, for example, adjust the volume  or switch hearing programs. Your hearing instruments  either have a push button and a rocker switch or a  push button only.  Your Hearing Care Professional has programmed your  desired functions to the controls.  Control Left Right Push button Rocker switch...
  • Page 10 Rocker switch function Press briefly: Volume up/down Sound mixer (audio input)    L = Left, R = Right Push button function Press briefly: Program change Press long: Standby/turn on    L = Left, R = Right Push button and rocker switch function Lock/Unlock the controls Read more in section "Locking the controls".    L = Left, R = Right...

  • Page 11: Settings

    Settings Hearing programs Read more in section "Changing the hearing program". Features Power-on delay enables whistle-free insertion of  hearing instruments. Read more in section "Turning on and off". A telecoil is built into the instrument, so it can  connect with audio induction loops. Read more in section "Audio induction loops".

  • Page 12: Batteries

    Batteries When the battery is low the sound becomes weaker  or you will hear an alert signal. The battery type will  determine how long you have to replace the battery.  Battery size and handling tips Ask your Hearing Care Professional for recommended  batteries. Battery size:  312  13  675 ■  Always use the correct battery size for your hearing  instruments. ■  Remove the batteries if you intend not to use the  hearing instruments for several days. ■  Always carry spare batteries. ■  Remove empty batteries immediately and follow your  local recycling rules for battery disposal.

  • Page 13: Replacing Batteries

    Replacing batteries Removing the battery: Open the battery compartment. Push the battery out  (refer to the picture). Inserting the battery: If the battery has a protective film, remove it  only when you are ready to use the battery. Insert the battery with the "+" symbol  facing up (refer to the picture). Carefully close the battery compartment. If you feel  resistance, the battery is not inserted correctly. Do not attempt to close the battery compartment by  force. It can be damaged.

  • Page 14: Daily Use

      D aily use Turning on and off You have the following options to turn your hearing  instruments on or off. Via battery compartment: Turning off: Open the battery  compartment fully. Turning on: Close the battery compartment. The default volume and hearing program are set. Via push button: Turning on or off: Press and hold the push button for  several seconds. Refer to section "Controls" for the  settings of your controls. After turning on, the previously used volume and hearing program remain set. ...
  • Page 15 When wearing the hearing instruments, an alert tone can  indicate when an instrument is being turned on or off. When the power-on delay is activated, the hearing  instruments turn on after a delay of several seconds.  During this time you can insert the hearing instruments  into your ears without experiencing unpleasant feedback  whistling. The "power-on delay" can be activated by your Hearing  Care Professional. ...

  • Page 16: Inserting And Removing The Hearing Instruments

    Inserting and removing the hearing instruments Your hearing instruments have been fine-tuned for your  right and left ear. Colored markers indicate the side:  ■  red marker = right ear ■  blue marker = left ear Inserting a hearing instrument: Hold the tube close to the ear piece. Carefully push the ear piece  ➊ into the ear canal Twist it slightly until it sits  well. Open and close your mouth  to avoid accumulation of air in the ear canal. Lift the hearing instrument  and slide it over the top of  ➋ your ear  CAUTION Risk of injury! Insert the ear piece carefully and not too deeply  into the ear.
  • Page 17 ■  It may be helpful to insert the right hearing instrument with the right hand and the left hearing instrument with the left hand.  ■  If you have problems inserting the ear piece,  use the other hand to gently pull your earlobe  downwards. This opens the ear canal and eases  insertion of the ear piece. The optional retention strand helps to securely retain the  ear piece in your ear. To position the retention strand: Bend the retention strand and  position it carefully into the  bottom of the bowl of your ear  (refer to the picture).
  • Page 18 Removing a hearing instrument: Lift the hearing instrument  and slide it over the top of  ➊ your ear  Hold the tube close to  the ear piece and pull the  ➋ ear piece out carefully  CAUTION Risk of injury! In very rare cases the ear piece could remain in  your ear when removing the hearing instrument.  If this happens, have the ear piece removed by  a medical professional. Clean and dry your hearing instruments after usage.  Read more in section "Maintenance and care".

  • Page 19: Adjusting The Volume

    Adjusting the volume Your hearing instruments automatically adjust the volume  to the listening situation. If you prefer manual volume adjustment, press the  rocker switch briefly. Refer to section "Controls" for the setting of the rocker switch. An optional signal tone can indicate the volume change.  Once the maximum or minimum volume has been  reached, you may hear an optional signal tone. If you turn off the hearing instruments immediately  after changing the volume, the volume change may  not be saved. Wait 5 seconds before turning the  hearing instruments off. Changing the hearing program Depending on the listening situation, your hearing  instruments automatically adjust their sound. Your hearing instruments may also have several hearing  programs which allow you to change the sound, if needed.  An optional signal tone can indicate the program change. To change the hearing program, press the push button  briefly. Refer to section "Controls" for the setting of your  controls. Refer to section "Settings" for a list of your  hearing programs.

  • Page 20: Locking The Controls (Optional)

    Locking the controls (optional) To prevent any accidental operation you can lock the  controls. When the controls are locked, both push button  and rocker switch are disabled. To lock the controls, press the top of the rocker switch and hold it. Simultaneously press the push button on  the same hearing instrument for 3 seconds. To unlock the controls, press the bottom of the rocker switch and hold it. Simultaneously press the  push button on the same hearing instrument for  3 seconds. Whether this function is configured for your hearing  instruments is listed in section "Controls".

  • Page 21: Special Listening Situations

      S pecial listening situations On the phone When you are on the phone, hold  the telephone receiver slightly above  your ear. The hearing instrument and  telephone receiver have to be aligned.  Turn the receiver slightly so that the  ear is not completely covered.    T elephone program  You may prefer a certain volume when using the phone.  Ask your Hearing Care Professional to configure a  telephone program.  Switch to the telephone program whenever you are on  the phone. If a telephone program is configured for your hearing  instruments, it is listed in section "Settings". ...

  • Page 22: Audio Induction Loops

    Audio induction loops Some telephones and public places like theatres offer the  audio signal (music and speech) via an audio induction  loop. With this system, your hearing instruments can  directly receive the desired signal – without distracting  noise in the environment.  You can usually recognize audio induction  loop systems by certain signs. Whether a telecoil is built into your hearing instrument  is listed in section "Settings". If a telecoil is built in, you  have the following options. Ask your Hearing Care Professional to configure a  telecoil program. Switch to the telecoil program whenever you are in a  place with an audio induction loop.  If a telecoil program is configured for your hearing  instruments, it is listed in section "Settings". ...

  • Page 23: Audio Input (Fm System)

    Audio input (FM system) With an audio input you can connect your hearing  instruments to an FM system. An FM system consists  of a transmitter and a receiver. It gathers speech at the  voice source (via a separate microphone) and transmits  the sound directly to the hearing instruments. The signal is clearer and unaffected by poor room  acoustics. This can be useful for adults in difficult  listening situations and for children in classrooms. Most FM systems allow for coupling with audio devices  like an MP3 player. Notes: ■  The battery compartment with audio input is available  as an accessory only for certain instrument types. Consult your Hearing Care Professional for further  information. ■  Ask your Hearing Care Professional to configure your  hearing instruments, for example: □  Adjust the mix of the audio input signal with  surrounding sounds. □  Configure the controls so that you can select  between audio input signal only, surrounding sound  only, or a mix of both signals. WARNING Risk of electric shock! Connect audio input only to a device conforming  to IEC 60065, the IEC-Norm for audio, video and  other electronic devices.

  • Page 24: Maintenance And Care

      M aintenance and care To prevent damage it is important that you take care of  your hearing instruments and follow a few basic rules,  which will soon become a part of your daily routine. Hearing instruments   D rying and storage Dry your hearing instruments overnight. For longer periods of non-use, store your hearing  instruments in a dry environment with an open battery  compartment and the batteries removed. Ask your Hearing Care Professional for more  information. Cleaning Your hearing instruments have a protective coating.  However, if not cleaned regularly you may damage the  hearing instruments or cause personal injury. Clean your hearing instruments daily with a soft, dry  tissue. Never use running water or immerse the devices in water. Never apply pressure while cleaning. Ask your Hearing Care Professional for recommended  cleaning products, special care sets, or more  information on how to keep your hearing instruments  in good condition.

  • Page 25: Ear Pieces, Earhooks And Tubes

    Ear pieces, earhooks and tubes Cerumen (ear wax) may accumulate on the ear pieces.  This may affect sound quality. ■  For hearing instruments with a standard tube  (ThinTube): Clean the ear pieces daily, clean the tubes as required.  Exchange the ear pieces and tubes approximately  every three to six months, or sooner if you notice  cracks or other changes. ■  For hearing instruments with an earhook and standard  ear piece: Clean the ear pieces daily. Exchange the ear pieces approximately every three  to six months, or sooner if you notice cracks or other  changes. Exchange the earhook if you notice cracks or other  changes. Ask your Hearing Care Professional to clean or  exchange the tubes as needed. ■  For hearing instruments with an earhook and custom- made ear piece: Clean the ear pieces daily. Exchange the earhook if you notice cracks or other  changes. Ask your Hearing Care Professional to clean the tubes  or to exchange the ear pieces and tubes as needed.
  • Page 26   C leaning ear pieces Clean the ear piece upon  removal with a soft and dry  tissue. This prevents  cerumen becoming dry  and hardening. Never use running water or immerse the ear piece in  water. ...
  • Page 27 Cleaning standard tubes Never use running water or immerse the tube in water.  You can clean standard tubes (ThinTube) using a special  cleaning wire. Ask your Hearing Care Professional for  suitable cleaning wires. Remove tube and adapter by unscrewing the adapter  from the hearing instrument. ➊ Carefully insert the cleaning wire into the adapter  ➋ Push the cleaning wire all the way through the tube  ➊ ➋ Wipe away any cerumen or debris that is dislodged. Completely remove the cleaning wire. Re-attach tube and adapter to the hearing instrument.
  • Page 28 Exchanging standard ear pieces Pull off the used ear piece and plug on the new  ear piece. with standard tube with earhook...
  • Page 29 Exchanging standard tubes and adapters ➊ Unscrew the used tube from the adapter  .  ➋ If necessary, unscrew the used adapter  .  ➊ ➋ Screw on the new adapter and tube.
  • Page 30 Exchanging earhooks Unscrew the used earhook. Position the earhook on the thread as shown in ➊ picture  .  ➋ Gently screw on the earhook with six full turns  .  ➌ If you feel resistance from the stopper  , stop turning  to prevent damage. ...

  • Page 31: Professional Maintenance

    Professional maintenance Your Hearing Care Professional can perform a thorough  professional cleaning and maintenance.  Custom-made ear pieces and wax filters should  be exchanged as needed by your Hearing Care  Professional. Ask your Hearing Care Professional for your individual  recommendation of maintenance intervals and for support.

  • Page 32: Further Information

      F urther information Safety information For more safety information, refer to the safety manual  supplied with the device. Symbols used in this document Points out a situation that could lead to serious,  moderate, or minor injuries. Indicates possible property damage. Advice and tips on how to handle your device better. Troubleshooting Problems and possible solutions Sound is weak. ■  Increase the volume. ■  Replace the empty battery. ■  Clean or exchange the ear piece.
  • Page 33 Problems and possible solutions Hearing instrument emits whistling sounds. ■  Reinsert the ear piece until it fits securely. ■  Check whether tube, adapter and ear piece are  connected correctly. ■  Decrease the volume. ■  Clean or exchange the ear piece. Sound is distorted. ■  Decrease the volume. ■  Replace the empty battery. ■  Clean or exchange the ear piece. Hearing instrument emits signal tones. ■  Replace the empty battery. Hearing instrument does not work. ■  Turn the hearing instrument on. ■  Gently close battery compartment completely. ■  Replace the empty battery. ■  Make sure the battery is inserted correctly. ■  Power-on delay is active. Wait several seconds  and check again. Consult your Hearing Care Professional if you encounter  further problems.

  • Page 34: Country-Specific Information

    Country-specific information...

  • Page 35: Service And Warranty

    Service and warranty Serial numbers Left: Right: Service dates Warranty Date of purchase: Warranty period in months: Your Hearing Care Professional...
  • Page 36 Legal Manufacturer Sivantos GmbH Henri-Dunant-Strasse 100 91058 Erlangen Germany Phone +49 9131 308 0 Document No. 03034-99T02-7600 EN Order/Item No. 109 432 98 Master Rev02, 05.2018 © 05.2018, Sivantos GmbH. All rights reserved 0123 www.rexton.com...
