DeLonghi NESPRESSO VERTUO LATTISSIMA Instructions Manual

Hide thumbs Also See for NESPRESSO VERTUO LATTISSIMA:
Table of Contents

Advertisement

Quick Links

V E R T U O
L A T T I S S I M A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NESPRESSO VERTUO LATTISSIMA and is the answer not in the manual?

Questions and answers

David Loring
May 22, 2025

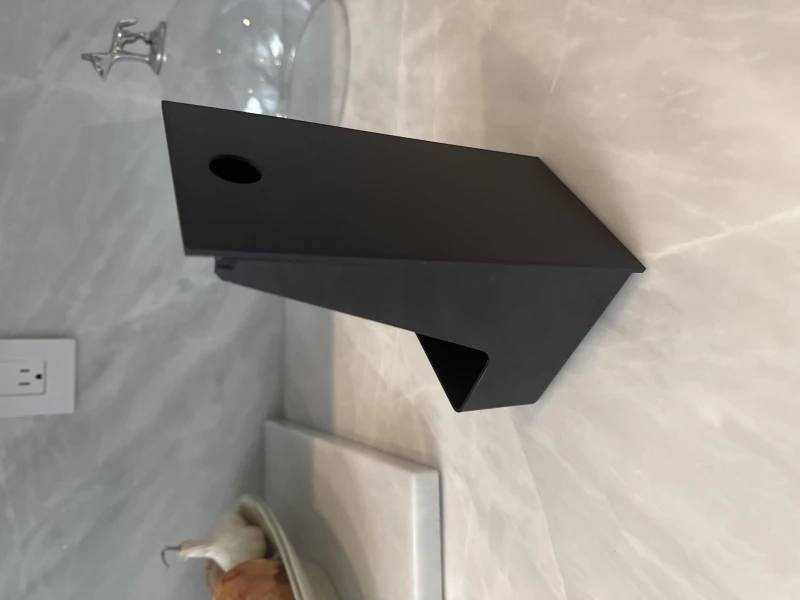

I need to find replacement part for delongia vurtuo lattissima used capsule collector, I have lost the internal piece inside the collector.

User image 682f321f5c946
0

Related Manuals for DeLonghi NESPRESSO VERTUO LATTISSIMA

Summary of Contents for DeLonghi NESPRESSO VERTUO LATTISSIMA

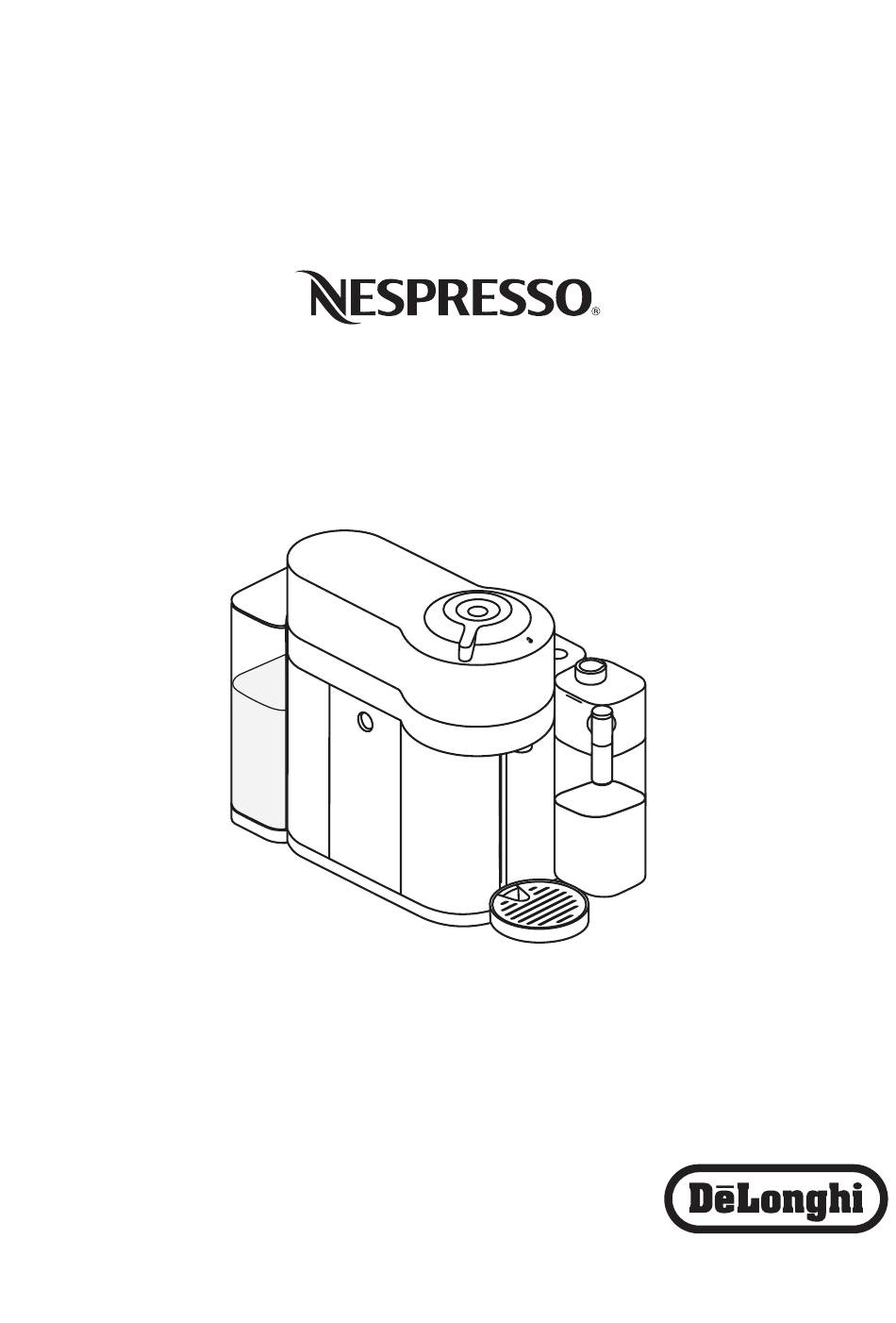

  • Page 1 V E R T U O L A T T I S S I M A...

  • Page 2: Table Of Contents

    INSTALLATION 1. Machine overview 2. Packaging content 3. Connectivity 4. Water hardness se ing 5. Open/close 6. Disassembling the milk carafe 7. Assembling the milk carafe 8. Cleaning the milk carafe 9. First use 10. Co ee Preparation 11. Milk Preparation & Daily rinsing 12.
  • Page 3 O V E R V I E W Overview of machine Water tank and lid Descaling pipe cover Descale mark Used capsule container Maximum level mark Drip tray Milk carafe connector door Drip grid Co ee outlet Adjustable cup support Descaling pipe...
  • Page 4 Overview of display Refer to “Descaling” section Refer to “Milk preparation” section See recipes on page 23 Co ee bu on - ON/OFF Hot foam bu on Locking / Unlocking lever La e macchiato bu on Descale alert Cappuccino bu on Rinse alert Unboxing: some dust may be present on the surface of the machine due to the recycled materials used in the packaging.
  • Page 5 Overview of milk carafe Milk carafe Lid removal bu on Milk carafe lid Remove to clean position Milk spout Rinsing position Milk action knob Milk recipe position Milk carafe connector Connector housing Milk aspiration tube...
  • Page 6 S A F E T Y CAUTION: Before operating your co ee machine, please refer to the safety instructions leaflet to avoid possible harm and damage. H E L P www.nespresso.com/help THANK YOU FOR CHOOSING NESPRESSO. FOLLOW THESE INSTRUCTIONS OR GO ONLINE FOR THE FULL USER MANUAL AT WWW.NESPRESSO.COM/HELP .

  • Page 7: Packaging Content

    Package content 1. Co ee machine 2. Nespresso welcome material 3. Nespresso capsules box 4. Safety instructions 5. Quick start guide + Water hardness test strip 6. Warranty Connectivity BENEFITS OF CONNECTING YOUR MACHINE Smart Co ee: Enjoy the latest co ee innovations from Nespresso by always keeping your machine up to date.

  • Page 8: Water Hardness Se Ing

    * AppStore ® is a trademark of Apple Inc., registered in the U.S. and oth- er countries. ** Google Play and the Google Play logo are trademarks of Google LLC. Water hardness se ing 1. Take the water hardness test strip in the quick start guide and place it un- der water for 1 second.
  • Page 9 3. Plug the power cord. 4. Make sure that no accessory (milk carafe or descaling pipe) is connected to the milk carafe connector door. 5. Turn the machine on. 6. Press hot foam bu on for three seconds to enter the menu mode. 7.

  • Page 10: Open/Close

    Open/close Disassembling the milk carafe 1. Press lid bu on to remove the lid from the milk carafe. Disconnect the aspiration tube. Turn the milk spout counter clockwise and pull it o . 2. Turn the milk carafe connector towards the unlock position and pull it out.

  • Page 11: Assembling The Milk Carafe

    Assembling the milk carafe 1. Insert correctly the milk carafe connector into the milk carafe lid and turn it clockwise towards the lock position . Insert the milk spout. Insert the knob and turn it to the “milk” position. 2. Insert the aspiration tube until its circular lip touches the bo om of the carafe lid.

  • Page 12: Cleaning The Milk Carafe

    Cleaning the milk carafe 1. Disassemble the milk carafe. Refer to section “Disassembling the milk ca- rafe”. 2. If a dishwasher is available: place all milk carafe components in the upper part of your dishwasher. If a dishwasher is not available: soak all components in hot potable water (50°C / 122°F) together with a mild detergent for at least 30 minutes;...

  • Page 13: First Use

    First use 1. Rinse the water tank before filling with only fresh potable water up to the maximum level. 2. Put the water tank back in position. Plug the power cord and place a con- tainer under the co ee outlet. Ensure the lever is in the lock position 3.
  • Page 14 5. The machine will start rinsing. The cleaning procedure will run automati- cally for 5 minutes. NOTE: water may accumulate inside the machine’s head during cleaning. If this happens please dry visible parts with a clean dry cloth. 6. Disassemble the milk carafe and clean all six components in the top rack of your dishwasher.

  • Page 15: Co Ee Preparation

    Co ee preparation 1. Fill the water tank with only fresh potable water. 2. Turn the lever towards the unlock position (1) and insert a capsule (2). 3. Close the machine by turning the lever (1) until the lock position (2).
  • Page 16 4. The co ee bu on starts blinking, as soon as light is steady white, press co ee bu on to start the co ee brewing. 5. When the co ee stops brewing, turn the lever towards the unlock posi- tion to open the machine and eject the capsule.

  • Page 17: Milk Preparation & Daily Rinsing

    Milk Preparation & Daily Rinsing 1. Fill the water tank only with fresh potable water up to the “MAX” level before preparing a co ee or a milk recipe. 2. Fill the milk carafe up to the “MAX” level, do not overfill. Reassemble the milk carafe.
  • Page 18 3. Turn the lever to the unlock position and insert the capsule. Close the machine and then push the lever towards the lock position . The machine heats up for approximately 30 seconds (fading co ee bu on). 4. Turn the knob to the milk position.
  • Page 19 6. Place a cappuccino cup or a la e macchiato glass under the co ee outlet and adjust milk spout position by rotating it up to the center of the cup. Refer to section 12 for cup size selection according to recipe style and capsule selected.
  • Page 20 10. Place a container (minimum 200 ml) under the milk spout. Turn the knob to rinse position. Milk system rinsing process starts and hot water combined with steam flows through the milk spout. The rinsing process stops automatically. WARNING: the rinsing system does not remove the allergens. Disassem- ble and clean the milk carafe before changing milks, preferably in the dish- washer.
  • Page 21 12. If there is milk le in the milk carafe: Disconnect the milk carafe from the machine and place it immediately in the refrigerator. Close the ma- chine steam connector door by pulling it up. CAUTION: a er rinsing, place the carafe in the refrigerator respecting the storing instructions on the milk package.

  • Page 22: Milk Recipes

    Milk recipes ESPRESSO RANGE CAPSULES CAPPUCCINO: A cappuccino is characterized by a co ee topped with a thick layer of milk froth on the top. Milk foam Co ee CHOICE OF COFFEE CHOICE OF CUP 25 ml / 0.84 fl oz Min 180 ml / 6 fl...
  • Page 23 ESPRESSO RANGE CAPSULES LATTE MACCHIATO: A la e macchiato is a recipe in which co ee is poured over a glass of froth milk. Milk foam Co ee CHOICE OF COFFEE CHOICE OF CUP 25 ml / 0.84 fl oz Min 270 ml / 9 fl...
  • Page 24 HOT FOAM: Hot foam function to tailor your perfect milk beverage: by simply topping up your existing milk beverage with more foam, to have maxiumum flexibil- ity to create your own milk beverage or just to enjoy a cup of hot milk foam. Milk CHOICE OF CUP: Min 270ml / 9fl...

  • Page 25: Energy Saving

    C) PROGRAMMING THE HOT FOAM VOLUME 1. Press and hold the hot foam bu on for three seconds, until it starts flashing. 2. Once the desired quantity is reached, press again hot foam bu on to save the new programmed volume. Volume can be reprogrammed from 80ml minimum to 200mL maximum.

  • Page 26: Se Ing The Co Ee Volume

    Se ing the co ee volume 1. Programming the co ee volume is specific to each capsule type: Espres- so, Double Espresso, Gran Lungo, Mug or Carafe. 2. Open the machine, insert the capsule you want to program; close the machine;...

  • Page 27: Turn On/O Bluetooth & Wi-Fi

    3. Press and hold hot foam bu on until both descale and rinse alerts blink (enter menu mode). 4. Press hot foam bu on to enter in reset mode. If selection is not done within 15 sec., it exits automatically. 5.

  • Page 28: Emptying The System Before A Period Of Non-Use

    Emptying the system before a period of non- use, for frost protection or before a repair 1. Plug the power cord. 2. Make sure that no accessory ( milk carafe or descaling pipe ) is connected to the milk carafe connector door. 3.
  • Page 29 7. Light will blink while the machine is heating up. Steady light indicates the machine is ready. 8. Press and hold hot foam bu on until both rinse and descale alerts blink at the same time (menu mode entry) 9. Press hot foam and la e macchiato simultaneously to enter emptying mode.

  • Page 30: A Er A Long Period Of Non-Use

    A er a long period of non-use 1. Rinse the water tank before filling with fresh potable water up to the maximum level. 2. Put the water tank back in its position. Plug the power cord and place a container under the co ee outlet. 3.
  • Page 31 5. The machine will start rinsing. The cleaning procedure will run automati- cally for 5 minutes. 6. Disassemble the milk carafe and clean all six components in the top rack of your dishwasher. In case a dishwasher is not available, refer to "Clean- ing the milk carafe"...

  • Page 32: Cleaning Cycle

    Cleaning cycle The machine has a predefined cleaning procedure that can be launched at user discretion. 1. Rinse and clean the water tank and the lid before filling it with fresh po- table water up to the “max” level. Put the water tank in place. 2.
  • Page 33 4. Open the machine and let the used capsule be ejected. Empty and rinse the capsule container and the drip tray. 5. Close the head and turn lever le toward lock position Please make sure no capsule is present in the machine before running the cleaning cycle.
  • Page 34 7. Press the co ee bu on three times within 2 seconds. 8. The machine will start rinsing. The cleaning procedure will run automati- cally for 5 minutes. 9. The procedure can be stopped at any time by pushing the co ee bu on and turns automatically in ready mode.

  • Page 35: Descaling

    Descaling Descaling alert Blinks orange Your machine must be descaled. Only few recipes before ge ing your machine Fast blinking orange blocked. Proceed immediately to descaling. Your machine is blocked to prevent any damages. Steady light Descale now. To ensure the proper functioning of your machine over its lifetime, making your co ee experience as perfect as it was the first day, follow the process below: 1.
  • Page 36 3. Close the head and turn the lever toward lock position 4. Empty the drip tray, used capsule container, cup support. Fill the water tank with two units of Nespresso descaling agent. Add water up to the “descale” mark on the water tank (~ 1000 ml / 1l / 33.81 fl oz). 5.
  • Page 37 6. The machine automatically enters in descaling mode. The “descale” alert blinks orange during the entire descaling process. The cappuccino but- lights up. 7. Place a container with a minimum of 1L capacity under the co ee and descaling pipe nozzle. 8.

  • Page 38: Troubleshooting

    NOTE: Always respect descaling agent and water volumes in the tank to ensure completion of the cycles. The machine can still prepare several milk beverages before it is blocked preventively. The blockage prevents any damage to the machine and en- sures its proper functioning over its lifetime.
  • Page 39 The machine doesn’t start and the • Fill the water tank and push bu on to start. lights blinks irregularly. • Check that handle is properly locked. Lights blink while machine is run- • If co ee or milk is flowing normally, this indicates the machine ning.
  • Page 40 The brewed quantity is not • Check that the water tank is filled. enough. • Check if milk carafe is filled. • See section “Se ing the co ee volume“. Lever cannot be closed complete- • Empty capsule container. Make sure that no capsule is blocked inside the capsule container.

  • Page 41: Specifications

    Specifications 220-240 V, 50-60 Hz, 1300-1500 W USA, CA: 120 V, 60 Hz, 1500 W Frequency 2.402 - 2.480 GHz RF Output 4 dBm Max (Bluetooth), 20 dBm Max (WIFI) power (EIRP) Standby 0,50 W/h (230V/50 Hz, EN 60661) 6.3 kg 1.6 L (WxDxH) 190 x 407 x 315 mm (with cup support and milk carafe)
  • Page 42 www.nespresso.com 57132C8440_00_0523...
