Craftmade Mondo Installation Manual
  1. Manuals
  2. Brands
  3. Craftmade Manuals
  4. Fan
  5. Mondo
  6. Installation manual

Craftmade Mondo Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

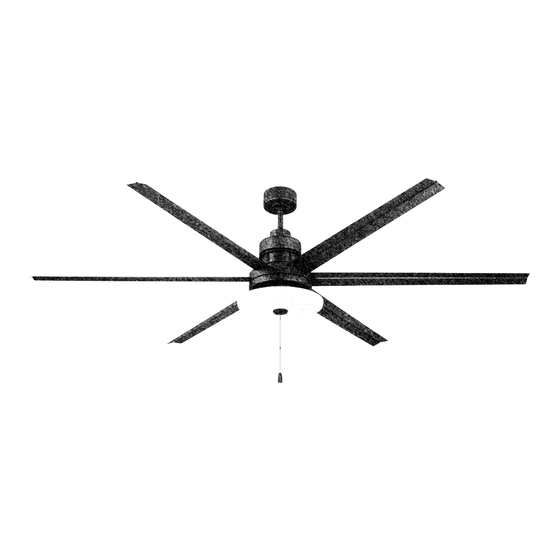

Mondo
Installation Guide
For Model:
MND72
WARNING:
DC Motor will not
operate until blades
are installed
APPROVED FOR USE IN
DAMP LOCATIONS
net weight of fan: 13.49 lb (6.12 kg)
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE

Table of Contents:

Wiring. pg. 7
Warranty. pg. 12
page 1
PRINTED IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mondo and is the answer not in the manual?

Questions and answers

Jack D Morsink
April 28, 2025

Good afternoon. Our Mondo 72 has stopped working. Installed a new battery in the wall control. The remote worked the fan until yesterday. Occasionally the fan attempts to start then backs up. Never makes a full rotation. Do I need to reset the communication program of the controls? If so, please send instructions on how to do accomplish this. Your help is appreciated. Jack Morsink

0
1 comments:
Mr. Anderson
May 15, 2025

To reset the communication program for the Craftmade Mondo 72 fan controls:

1. Turn off power to the fan for at least 5 seconds.
2. Restore power.
3. Within 60 seconds of restoring power, press and hold the SET button on the wall control for 5 seconds or until the light blinks twice.
4. Turn power off again for at least 5 seconds.
5. Restore power again.
6. Within 60 seconds of restoring power, press and hold the SET button on the handheld remote control for 5 seconds or until the light blinks.

This activates the automated learning process and resets the communication.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Craftmade Mondo

Summary of Contents for Craftmade Mondo

  • Page 1: Table Of Contents

    READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Mondo Installation Guide For Model: MND72 Table of Contents: Safety Tips. pg. 2 Unpacking Your Fan. pg. 3 Parts Inventory. pg. 3 WARNING: Installation Preparation. pg. 4 DC Motor will not Hanging Bracket Installation.

  • Page 2: Safety Tips

    (2) this LED light kit must accept any interference received, including interference that may cause undesired operation. Distributed by: Craftmade, 3901 South 20 Avenue, DFW Airport, TX 75261; 1-800-486-4892 NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur.

  • Page 3: Unpacking Your Fan

    1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.

  • Page 4: Installation Preparation

    3. Installation Preparation. blade edge To prevent personal injury and damage, ensure that inches 10 feet the hanging location allows the blades a clearance (3.05m) (76cm) of 10 feet (3.05m) from the floor and 30in. (76cm) from any wall or obstruction. This fan is suitable for room sizes up to 400 square 12ft.

  • Page 5: Fan Assembly. Pgs

    stop pin 5. Fan Assembly. set screw Remove hanging ball from downrod provided by loosening set screw on hanging ball. Lower hanging hanging ball ball and remove stop pin and then slide hanging ball off of the downrod. [Refer to diagram 1.] Loosen yoke set screws and nuts at top of motor diagram 1 housing.
  • Page 6 5. Fan Assembly. (cont.) With the hanging bracket secured to the safety cable loop wood outlet box and able to support the fan, you are ceiling joist now ready to hang your fan. Grab the fan firmly with two hands. Slide downrod through wood screw opening in hanging bracket and let hanging and washer...

  • Page 7: Wiring

    6. Wiring. white supply wire ground (green or bare) black supply wire WARNING: Turn off circuit breakers to current fixture from breaker panel and be sure switch is turned to the OFF position. from ceiling CAUTION: Be sure outlet box is properly grounded or black that a ground wire (GREEN or Bare) is present.

  • Page 8: Canopy Assembly

    7. Canopy Assembly. Locate 2 screws on underside of hanging bracket and remove screw closest to the open end of the hanging bracket. Partially loosen the other screw. Lift canopy to hanging bracket hanging bracket. Place rounded part of slotted hole in canopy over loosened screw in hanging bracket and screw push up.

  • Page 9: Handheld Remote Control Assembly

    10. Handheld Remote Control Assembly. remote control IN ORDER TO USE THE HANDHELD REMOTE CONTROL, cover PLEASE CONTINUE WITH SECTION 10 for remote control assembly instructions. If you have already installed the wall control but do not wish to use the handheld remote control, please proceed to Section 11.

  • Page 10: Automated Learning Process./Activating Code

    11. Automated Learning Process./Activating Code. CAUTION: The wall and/or handheld remote control wall control can be programmed to multiple receivers or fans. If this is not desired, turn wall switch off to any other programmable receiver or fan. Restore electrical power and then, if using wall control, set slider switch on wall control to the ON position.

  • Page 11: Remote/Wall Control Operation

    12. Remote/Wall Control Operation. handheld wall control remote control IMPORTANT: Handheld remote control and wall III IV control must be SYNCHRONIZED with fan in order to properly function. Fan SPEED control buttons--1: Use to control the ceiling fan speed 1-6 Fan OFF button--2: Use to turn the fan off REVERSE function button--3:...

  • Page 12: Troubleshooting

    1. Check power to wall switch/wall control. Service at 1-800-486-4892 to arrange for return of fan. 2.Verify that wall control (optional use) is wired Return fan, shipping prepaid, to Craftmade. We will repair properly. 3. Check to be sure fan is wired properly.

This manual is also suitable for:

Mnd72

Table of Contents
