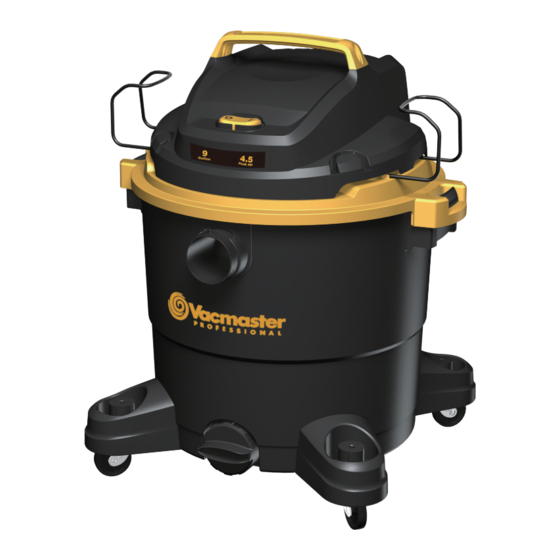

Wet/Dry Vacuum
Operator's Manual
9 Gallon
Model No.
VJF912PF 0201
FOR YOUR SAFETY
Read and understand this manual before use.
Keep this manual for future reference.
Distributed By
Replacement Filters &
Cleva North America, Inc.
Accessories available at:
601 Regent Park Court
Vacmaster.com
Greenville, SC 29607
Advertisement
Table of Contents
Related Manuals for Vacmaster VJF910PF 0201
Summary of Contents for Vacmaster VJF910PF 0201
- Page 1 Model No. VJF912PF 0201 FOR YOUR SAFETY Read and understand this manual before use. Keep this manual for future reference. Distributed By Replacement Filters & Cleva North America, Inc. Accessories available at: 601 Regent Park Court Vacmaster.com Greenville, SC 29607...
-
Page 2: Table Of Contents
FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS. WARRANTY ® We take pride in producing a high quality, durable product. This Vacmaster product carries a limited three (3) year warranty against defects in workmanship and materials from date of purchase under normal household use. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM. Read and understand this operator’s manual and all labels on the vacuum cleaner before operating. Safety is a combination of common sense, staying alert and knowing how your vacuum works. -
Page 4: Double Insulation Instructions
CAUTION: To reduce the risk of injury from moving parts - Unplug before servicin. WARNING: T o reduce the risk of electric shock - Unplug before cleaning or servicing. When using as blower: • Direct air discharge only at work area. •... -
Page 5: Extension Cords
EXTENSION CORDS When using an extension cord with your Wet/Dry Vacuum refer to the following table to determine the required A.W.G. wire size. Before using the cleaner make sure the power cord and extension cord are in good working condition. Make repairs or replacements before using the vacuum cleaner. -
Page 6: Symbols
SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, DANGER if not avoided, will result in death or serious injury. Indicates a potentially hazardous situation, which, WARNING if not avoided, could result in death or serious injury. -
Page 7: Unpacking & Checking Carton Contents
UNPACKING & CHECKING CARTON CONTENTS Remove all contents from the box. Remove the power head and take out any contents inside the collection tank. Check each item against the carton contents list. Carton Contents List: Description ..…………..……….…..Qty. Vacuum Assembly……………………..Hose……………………………………... -
Page 8: General Assembly Instructions
GENERAL ASSEMBLY INSTRUCTIONS A Philips head screwdriver is required. WARNING: DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE SURE THE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VACUUM. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN. UNPACKING YOUR WET/DRY VACUUM &... -
Page 9: Dry Vacuum Operation
7. Your vacuum comes ready for dry vacuum cleaning. If the cartridge filter is not installed, refer to page 14 for installation instructions (Fig. 10 & 11). 8. For wet vacuum cleaning, remove the cartridge filter, and install the supplied foam wet filter. See page 15 for the foam wet filter installation instructions (Fig. - Page 10 VACUUMING FINE DUST USE A FINE DUST FILTER (INCLUDED). TO PURCHASE ADDITIONAL FINE DUST FILTERS, CALL 1-866-384-8432 OR GET THEM AT YOUR ® LOCAL OR ONLINE VACMASTER RETAILER. 1. Verify that the power cord is disconnected from the outlet (Fig. 1).
-
Page 11: Liquid Vacuum Operation
LIQUID VACUUM OPERATION LIQUID VACUUMING WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION ENTITLED “IMPORTANT SAFETY INSTRUCTIONS”. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS. -
Page 12: Blower Operation
IMPORTANT! When vacuuming large quantities of liquids, do not immerse the nozzle completely in the liquid; leave a gap at the tip of the nozzle opening to allow air inflow. The machine is fitted with a float valve that stops the suction action when the collection tank reaches its maximum capacity. -
Page 13: Maintenance
6. Verify that the power switch is in the ‘O’ OFF position before plugging the power cord into the outlet. Plug the power cord into the outlet (Fig. 4 & 5). 7. Before turning on the vacuum, firmly hold onto the loose end of the hose. Turn the motor on by flipping the switch to the ‘I’... -
Page 14: Installing & Cleaning Cartridge Filter
INSTALLING & CLEANING CARTRIDGE FILTER INSTALLING CARTRIDGE FILTER 1. Verify that the power cord is disconnected from the outlet (Fig. 1). 2. Remove the power head and place in an upside down position. 3. Install the cartridge filter over the filter cage making sure the cage is completely covered (Fig. -
Page 15: Installing & Cleaning Foam Wet Filter
INSTALLING & CLEANING FOAM WET FILTER INSTALLING FOAM WET FILTER 1. Verify that the power cord is disconnected from the outlet (Fig. 1). 2. Remove the power head and place in an upside down position. Follow instructions to remove the cartridge filter on page 14. 3. -
Page 16: Troubleshooting
TROUBLESHOOTING WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, UNPLUG BEFORE TROUBLESHOOTING. PROBLEM POSSIBLE CAUSE SOLUTION Check the power supply, cord, No power supply. breakers, and fuses. Unplug and check the power The wet/dry vacuum will not Faulty power cord. cord. -
Page 17: Exploded View
EXPLODED VIEW... -
Page 18: Parts List
PARTS LIST Part Drawing Number Description Quantity 551489101 Handle Assembly 551015102 Hose Storage Rack Power Head Assembly 551416106 Float 551436113 Filter Cage Collection Tank 551011106 Vacuum Port 551002110 Drain Cap With Gasket 551015104 Caster Foot Assembly 551541101 Hose 551001121 Extension Wand 551001117 Floor Brush/Squeegee Nozzle 551011109...
